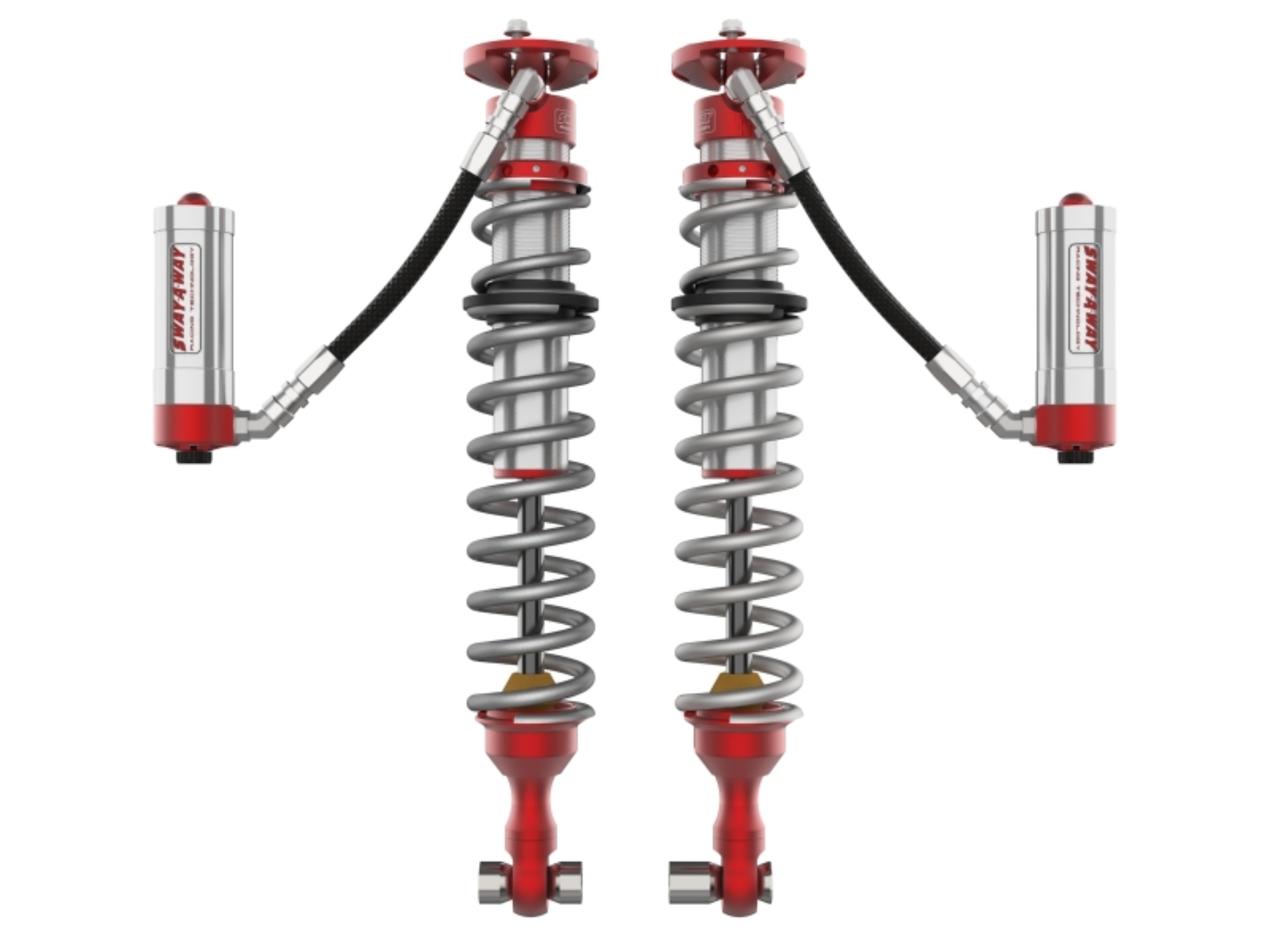

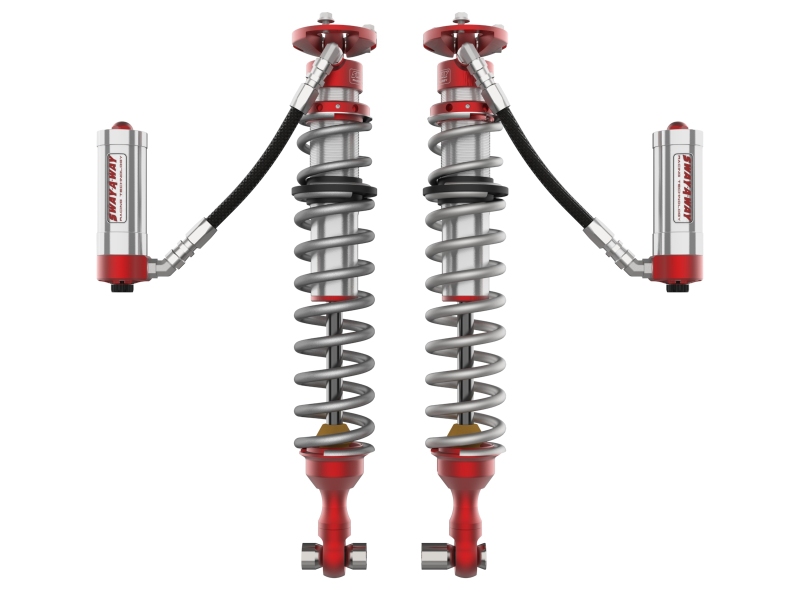

aFe Control introduces these Sway-A-Way High Performance replacement Rear Coilovers for the 6th Gen Ford Bronco. These specifically designed 2.5" diameter direct fit Coilovers feature the same race winning engineering and components that have 20+ years of testing. With application specific damping curves, these coilovers won’t sacrifice any on-road comfort or off-road control. This package is designed as a direct fit application and requires no modifications to the vehicle. These Sway-A-Way coilovers are designed to work with the factory rear control arms and allow for 11.5” of wheel travel, without binding joints or overextending brake lines. (A trackbar relocation bracket is recommended if adjusting the lift height over 2.0”). The kit comes pre-set for 2.0" of lift, but includes a spanner wrench to adjust your ride height from 1.0 to 3.0 inches of lift, to find the perfect blend of performance and style. Sway-A-Way’s new 2.5 Series Mid-Speed Compression Adjusters mount directly into the remote reservoir. Offering 16 clicks of resolution, the compression adjuster can go from the unrestricted, fully open (soft) position, to the fully closed (hard) position – offering up to a 200% increase in damping force, in just two full turns of the GF polymer adjuster knob. Rebound damping will remain unaffected regardless of the setting and valving combination chosen. Constructed from billet 6061-T6 aluminum, the red anodized and laser etched housing is built to withstand the harshest of environments with excellent corrosion resistance.
The metering piston is CNC machined from 7075-T6 aluminum to provide the best service life for high-speed applications. Sway-A-Way’s mid-speed compression adjusters are an excellent solution for any application that varies weight often, or that might be used in a variety of terrains where a quick adjustment is desired for optimizing the comfort level of your ride. These rear coilovers are 100% designed and built in the USA, and feature high strength steel cylinders that are coated with a two-step zinc plated finish designed and salt spray tested to withstand the harshest of environments. A red anodized finish on all external CNC machined aluminum components will protect against the elements for years to come. The multi-seal carrier includes redundant seals to keep even the smallest dirt and debris out and keep the specifically formulated 7wt fully synthetic shock oil in. Viton O-rings ensure a leak free seal at the most extreme temperatures. Sway-A-Way shocks are easily rebuildable and revalveable by a trained professional. All seal kits, spare parts, and valve shims are available through aFeControl.com. All direct fit Sway-A-Way shocks come with a warranty that protects them against manufacturer defects.
Sway-A-Way 2.5 Rear Remote Reservoir Coilover Kit with Compression Adjusters Ford Bronco 21-24
Sway-A-Way 2.5 Rear Remote Reservoir Coilover Kit with Compression Adjusters
Application Specific Damping Tuned for the Best On and Off-Road Control
Dual Rate Springs for Best Ride Comfort and Load Carrying Capacity
7/8" Polished Nitro Steel Shafts for Strength and Durability
Completely Adjustable and Rebuildable Using Simple Tools
Specifically Formulated 7wt Fully Synthetic Shock Oil
aFe Sway-A-Way 2.5 Rear Coilovers Ford Bronco 21-24
16 Clicks of Adjustability for up to +200% Damping
Direct Fit Installation, Requires No Modifications
Remote Reservoirs with Compression Adjusters
Multi-Seal Carrier to Ensure Zero Leakage
Sway-A-Way 2.5 Rear Coilover Kit w/ Res
Sway-A-Way Shock Kit
