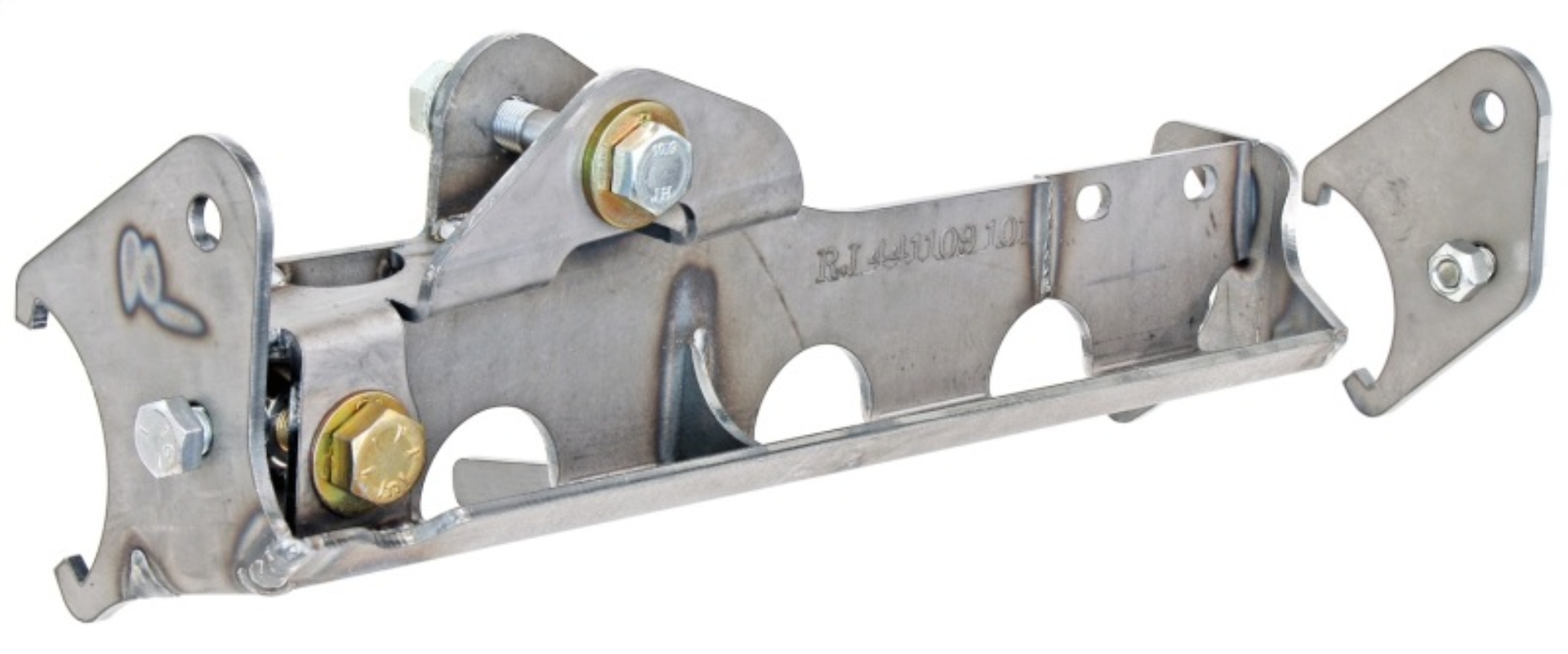

RockJock JL/JT Currectlync High Steer Front Trac Bar Relocation and Ram Assist Steering Mount

RockJocks Trac Bar Relocation and Ram Assist Mount Axle Bracket Kit for JL Wrangler, JL Unlimited and JT Gladiator vehicles is designed specifically to be used in conjunction with our High Steer Knuckles. This integrated trac bar relocation and ram assist mounting bracket raises your trac bar 2 in. and corrects its geometry to prevent you from incurring any bump steer as well as giving you a solid mounting point for your hydraulic steering assist ram. The bottom side of the bracket provides a skid plate that protects your ram from rocks. The large axle bracket, as well as the small bracket for use on the driver's side of the axle to relocate the sway bar end link mounting point, easily install, but do require some minor welding. However, both brackets can be mounted solidly enough with the bolts to allow you to drive to a welder if need be. We recommend buying this bracket in our complete RJ-440000-101 High Steer Knuckle Kit so that you are ensured a complete system that includes everything you need to get the job done. The use of our RJ-9120FJLF forged, organically shaped front trac bar is also strongly encouraged, so that all components nest together for maximum up travel as engineered.

Trac Bar Relocation Brackets; High Steer; Front Trac Bar Relocation; Ram Assist Steering Mount Axle Bracket;

RockJock JL/JT Currectlync High Steer Front Trac Bar Relocation and Ram Assist Steering Mount

Relocates Trac Bar Mounting Point Upward

Trac Bar Relocation Brackets

Necessary On Lifted Vehicles

Heavy Steel Construction

Track Bar Bracket

Welding Required
