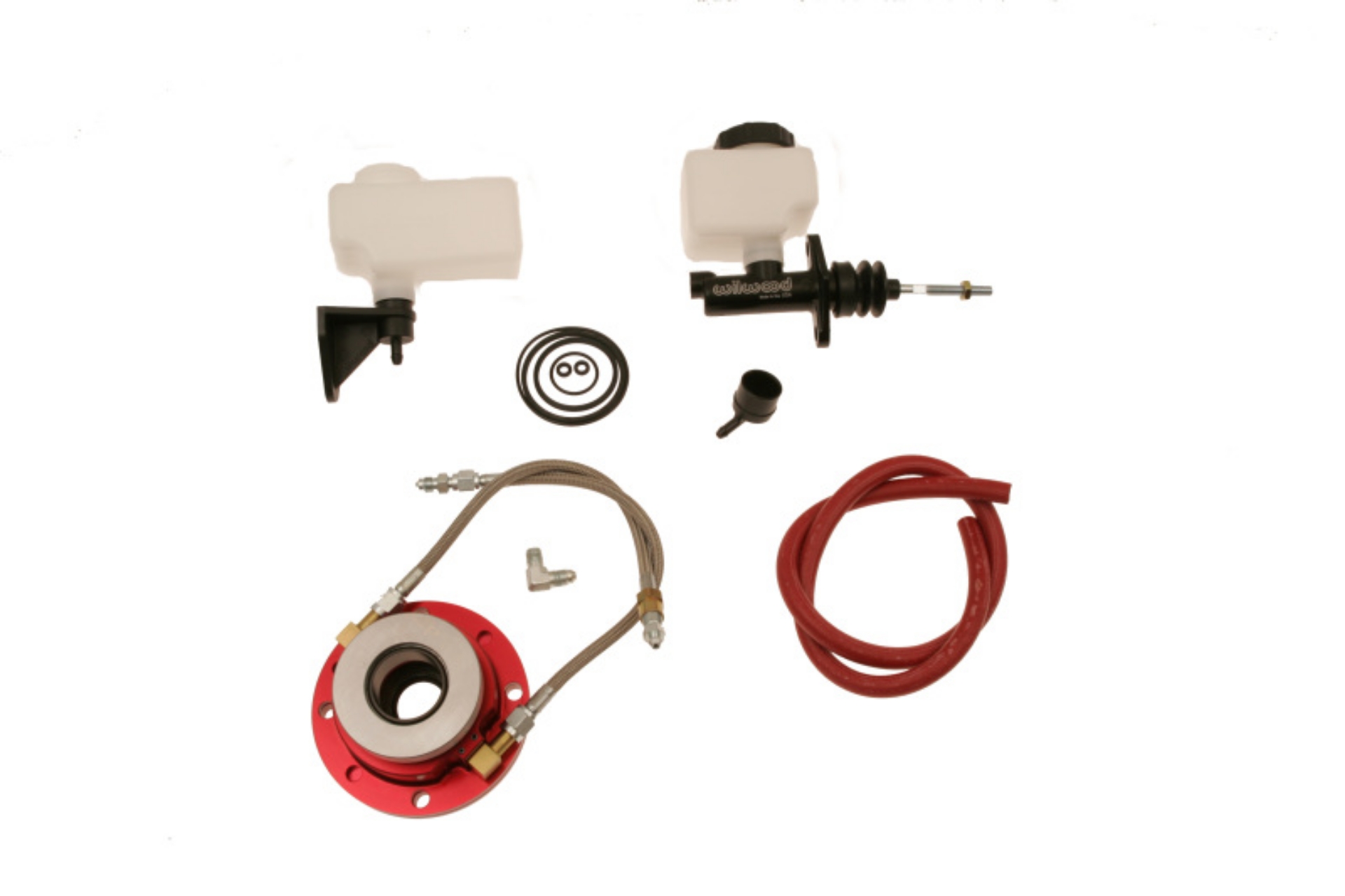

McLeod Hydraulic T-O- Bearing W- Master Cylinder Richmond Gm 5 & 6 Spd With 1 Piston 4-680 O-D - ( McLeod Racing 13085-1 )

Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your Oem Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality, Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings, Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine.

The 1300 series bolt on bearing is intended to replace your OEM bearing retainer when your "A" measurement is less than 3". These bearings are made of the finest hard anodized billet aluminum, along with quality elbow swivel fittings and high pressure stainless steel braided lines. These high quality components make the McLeod bolt on hydraulic throw out bearing extremely durable, and the best in the market today! These assemblies may be used to eliminate the need to fabricate complex clutch linkage when swapping transmissions. Most McLeod Hydraulic Throw Out Bearings are available with or without a master cylinder.

This unit is specific to a 2.31" to 2.50" "A" Dimension. If the customers "A" dimension does not fall into this range please use a 1300 series with a adjustable height piston. This also comes with a universal master cylinder and is not engineered for any specific firewall. This is the responsibility of the end user to engineer and fabricate a master cylinder mounting bracket with a 6:1 pedal ratio for proper pedal feel and stroke.For more info please call McLeod Tech at 714-630-2764

This unit is specific to a 2.31" to 2.50" "A" Dimension. If the customers "A" dimension does not fall into this range please use a 1300 series bearing with a adjustable height piston. For more info please call McLeod Tech at 714-630-2764

Hydraulic Bearing Kit;Bolt On; GM Richmond 5&6 Spd;Universal M/C; #1 Piston, 2.31" to 2.50" "A" Dimension;Each

1300 Series Hydraulic Bearing: GM:Richmond 5 & 6 Speed:#1 Piston:W-M/C Each, 2.31" To 2.50" "A" Dimension:Each

McLeod Hydraulic T.O. Bearing W/Mc Richmond Gm 5 & 6 Spd With 1 Piston 4.680 O.D.

1300 Series Hydraulic Bearing: GM:Richmond 5 & 6 Speed:#1 Piston:W-M/C Each

Hydraulic Bearing Kit;Bolt On; GM Richmond 5 & 6 Spd;Universal M/C;Each

Clutch Release Bearing

Hydraulic Bearing Kit

Bearing Kit

Hyd bearing
