?The REDARC Smart Start SBI224D is primarily used in commercial vehicles to protect the start battery from excessive discharge and provides 24V DC, while incorporating 200A of continuous ratings. This dual sensing model allows charging of batteries in instances when the auxiliary battery may also be charged by an external source, such as an external AC battery charger or solar panels. When the auxiliary battery reaches 26.4V from its external source, the SBI224D will then charge the start battery as well. Additionally, the microprocessor-controlled battery isolator has power saving technology that prevents the solenoid from generating high voltage transients. It is used rather than a diode battery isolator due to the voltage drop associated with diode type isolation. Advanced fault detection warns the user of over-voltage, voltage drop, and excessive current draw conditions.
Overmold design, Compact size and easy installation, Silver contacts for longer life and suitable for marine applications, Power saving technology. Fault indication, Fully surge protected
Power-saving technology that provides cost-effective protection for the primary battery in a safe and convenient way by using the alternator to charge the auxiliary battery.
When the auxiliary battery reaches 26.4V from its external source, the SBI224D will then charge the start battery as well.
Protect the starter battery's excessive discharge, allowing your auxiliary battery to power your accessories.

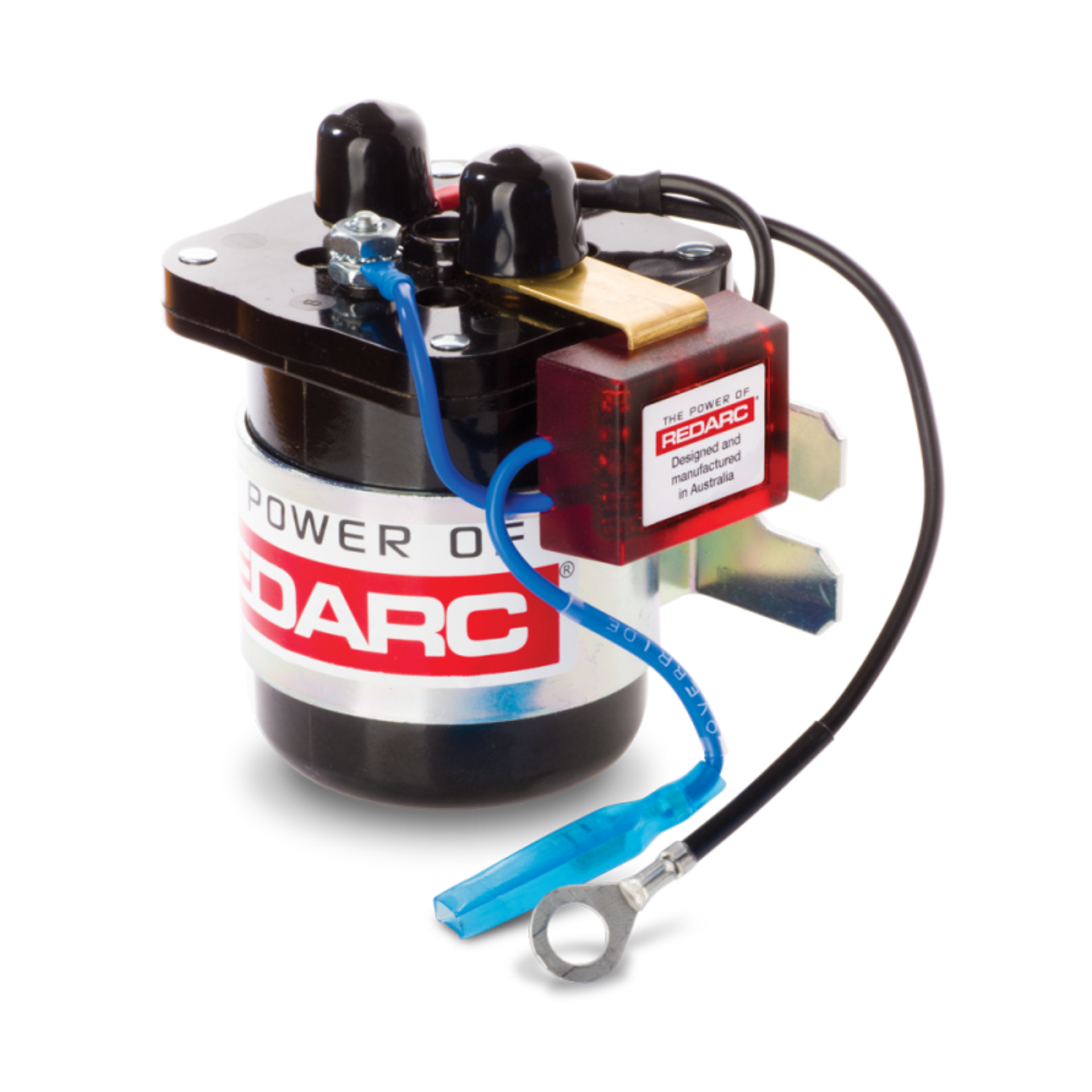

REDARC Dual Sensing Smart Start Battery Isolator - 24V 200A
SMART START BATTERY ISOLATOR 24V 200A
Bat. Isolator Dual24V200A
Battery Isolator
