The CSF radiators feature the latest 5mm multi-louvered fins. These fins significantly increase the heat exchange surface area improving overall cooling efficiency and recovery while still maintaining good airflow. The core is much larger than the factory featuring 2-Row 42mm aluminum core. This both increases the fluid capacity of the radiator, and improves the cores ability to dissipate heat. CSF's Exclusive B-Tube Technology increases the heat transfer by approximately 15% over regular oval welded tubes. Combined with the new 5mm fins, heat transfer is increased by up to 25% overall. In addition, the super-efficient multi-louvered fins maximize airflow through the core for the best possible performance.
Upgraded radiators help eliminate the concern of overheating. These advanced designs feature larger 2-Row, 42mm aluminum cores which increase the fluid capacity of the radiators, and greatly improves heat dissipation. Paired with CSF's Exclusive B-Tube Technology, heat transfer is increased by 20-25%. In addition, the new ultra-efficient 5mm multi-louvered fins maximize airflow through the core for the best possible performance. The result is the best possible thermal management under all driving conditions. Whether you're building a street sleeper or prepping for your next track day, CSF's 992 Radiators are engineered to handle the heat and then some.
CSF vs OEM: The original OE radiators from Porsche are plastic tanks with single row aluminum cores. While this is the most common OE radiator design and generally acceptable, there is always room for improvement. To compound the factory cooling system limitation, Porsche decided to forgo the center radiator on most models (see fitment notes) except the Turbo, Turbo S, GT3, and 992.2 GTS (Hybrid). This greatly limits the thermal capacity of the system and many owners report seeing high engine temperatures on track with some overheating after a few laps.
The CSF #7243 Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.
5mm Core Upgrade: CSF always seeks to offer the ultimate cooling solution. The latest 5mm fin technology was introduced at the end of 2023 offers even more heat transfer area and thermal efficiency than CSF's tried and true 6.5mm fins. Porsche owners are known to push their cars hard and CSF is confident this radiator is ready to take on the most demanding conditions in the world.
The TIG-Welded 100% All Aluminum construction increases the overall strength of the radiator. This improves durability and longevity so you can be confident it will hold up to hard driving conditions. The CSF radiator mounts in the factory location and requires no modifications or cutting.
Plug and Play Installation: CSF designed these Radiators to easily replace the OEM units. The Plug-and-Play "Drop-in Fit" installation should only take 2-3 hours and greatly improves the performance and the longevity of your engine.
Every 911 owner can benefit from an upgraded cooling system. Whether you're building a street sleeper or prepping for your next track day, CSF's 992 Radiators are engineered to handle the heat and then some.
New "Track-Spec" 5mm Tall Ultra Efficient Fins with a Multi-Louvered Design for Maximum Surface Area Contact and Heat Dissipation

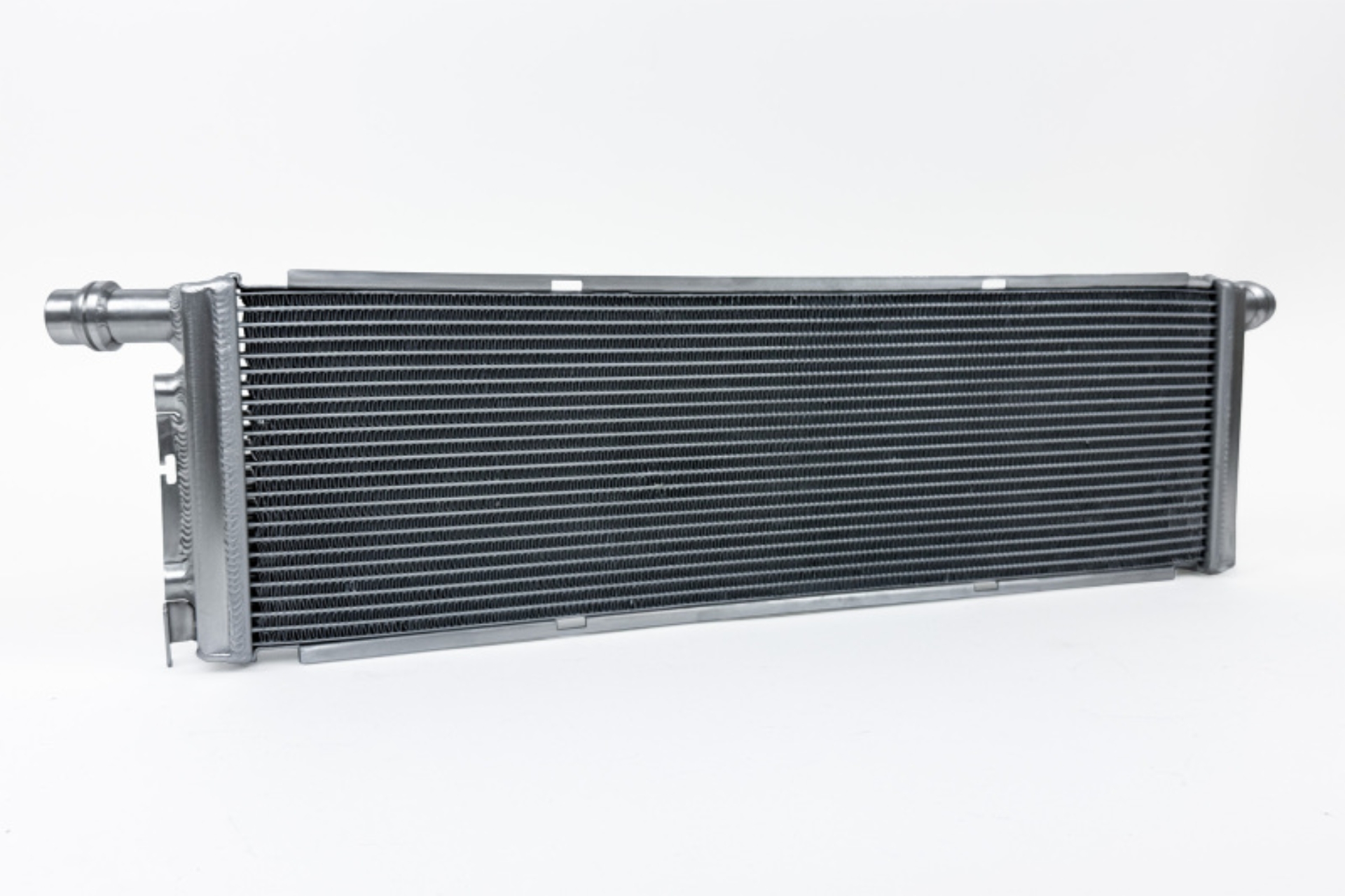

CSF 2019+ 992.1/992.2 Porsche 911(3.0LT Base/T/S/4/4S/GTS/4 GTS) High Perf Center Aluminum Radiator
True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
Porsche 992 911 High-Performance All-Aluminum Radiator (Center)
CNC Machined Mounting Brackets and OEM Style Inlet/Outlet
Cooling Tubes with CSF's Exclusive B-Tube Technology
100% All Aluminum TIG-Welded Construction
Individually Leak and Pressure Tested
CSF 7243 - 992 911 Radiator (Center)
2-Row - 42mm High-Performance Core
Hand Brushed Satin Finish
2-Year Limited Warranty
CSF Radiator
Radiator
