The original OEM B58 heat exchanger is a 1-row unit that is 27mm thick. In comparison, CSF has used its industry-exclusive world's largest 2-row core (68mm) with CSF's B-Tube technology. A unique tank design allows the larger CSF core to still fit into the OEM cooling system housing. Another critical feature of the CSF BMW B58 high-performance heat exchanger is its unique triple-pass flow design. The water traveling through the upgraded heat exchanger flows through the radiator three times before exiting the cooler and flowing back into the manifold charge cooler. This ensures that the outlet water temperature of the heat exchanger is the absolute lowest it can be. The OEM design, as well as more expensive aftermarket designs, all have single-pass flow structures.
As the 3.0 Liter B58B30M0 (1st gen B58) turbo engine platform continues to be developed by the high performance industry and more power is extracted from the engine, CSF's high performance heat exchanger for the BMW B58 engine will be a critical component to keeping the vehicle charge air cool, and out of limp mode. The CSF BMW B58 upgraded heat exchanger for F-series vehicles will be especially important to install in upgraded turbo applications and/or vehicles running high performance tuning software.
The CSF #8131B Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.
Significantly reduce Intake Air Temperatures (IAT) for Maximum Performance (with Faster Heat Soak Recovery) on your B58/B48 Powered BMW with a CSF Heat Exchangers.
The CSF #8131B comes in a Satin Black Finish for OEM+ look. It is also available in a Polished Finish (CSF #8131).
Direct Plug-and-Play Design, Including CNC Machined "Quick Connect" Inlet/Outlet Water Fittings

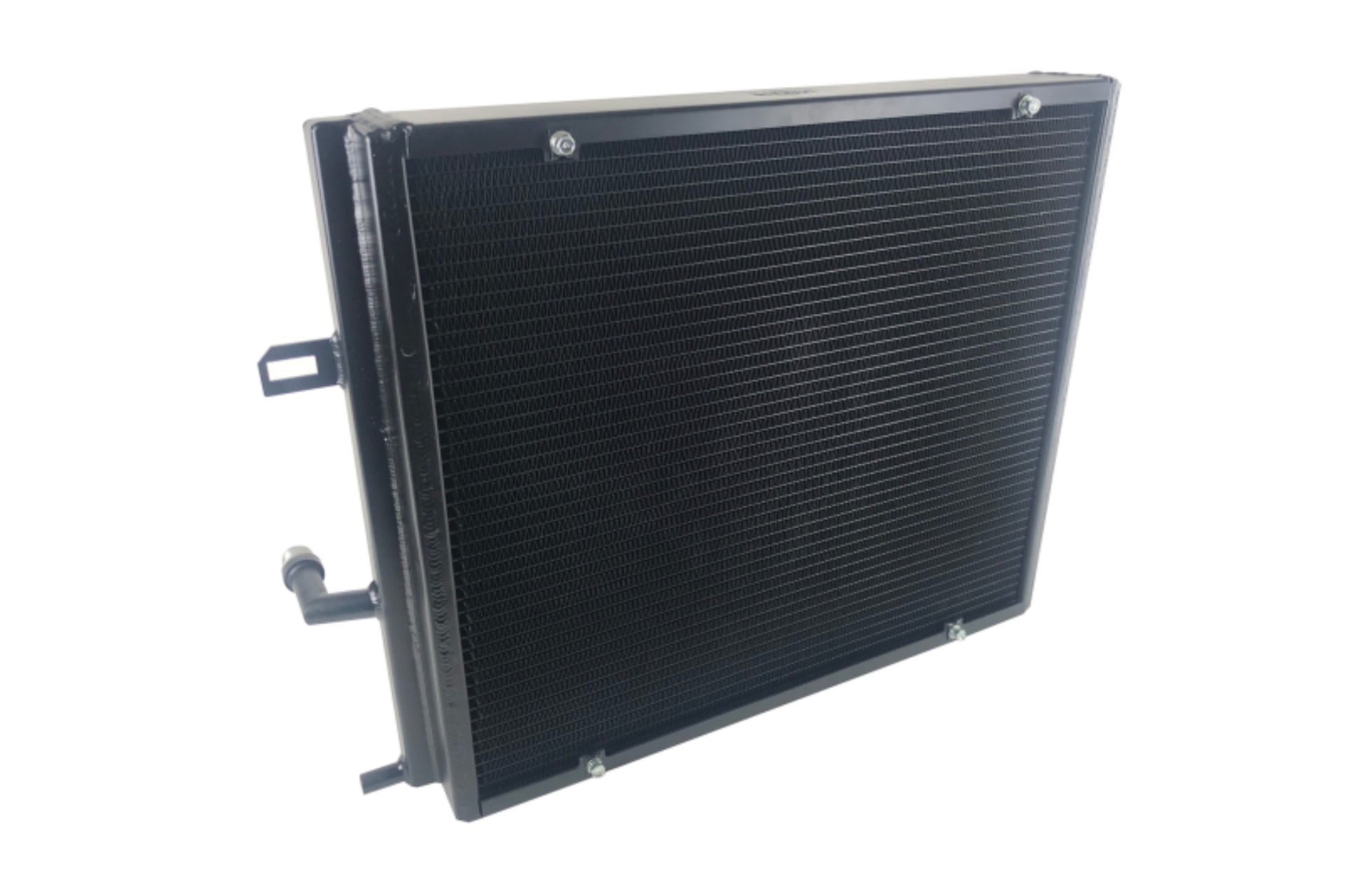

CSF BMW B58/B48 Front Mount Triple-Pass Heat Exchanger w/Rock Guard - Black
68mm 2-Row Core with CSF's B-Tube Technology (World's Largest 2-Row Core)
BMW F3X/F2X B58/B48 Triple-Pass Heat Exchanger w/ Rock Guard - Black
OEM CNC Machined Mounting Location Pins and Brackets
Core Size: 524mm Length x 478mm Height x 69mm Wide
CSF 8131B - B58/B48 Heat Exchanger (BLK)
Replaces OEM Part Number: 17118741830
No Modifications Needed to Install
6.5mm Multi-Louvered Fin Height
Included Detachable Rock Guard
Turbocharger Heat Exchanger
Triple-Pass Flow Design
Semi-Gloss Black Finish
CSF Heat Exchanger
8131B
8131B
