The VCU communicates with the BMS via the Master Module and all battery packs need at least one Master unit. The Satellite Modules are connected to their Master via a high-speed serial interface (isoSPI) that allows additional units to be daisy chained together, adding as many Satellites as necessary for the battery pack configuration.
The BMS is implemented as two different Module types: the BMS Master and the BMS Satellite. Each Module is capable of measuring up to 18 cells and 3 temperatures (thermistors) but the Master also contains the CAN communication interface and J1772 charging specific connections needed for each battery pack.
The VCU is responsible for all BMS control logic. All setup and calibration items can be modified using the AEMCal user interface.

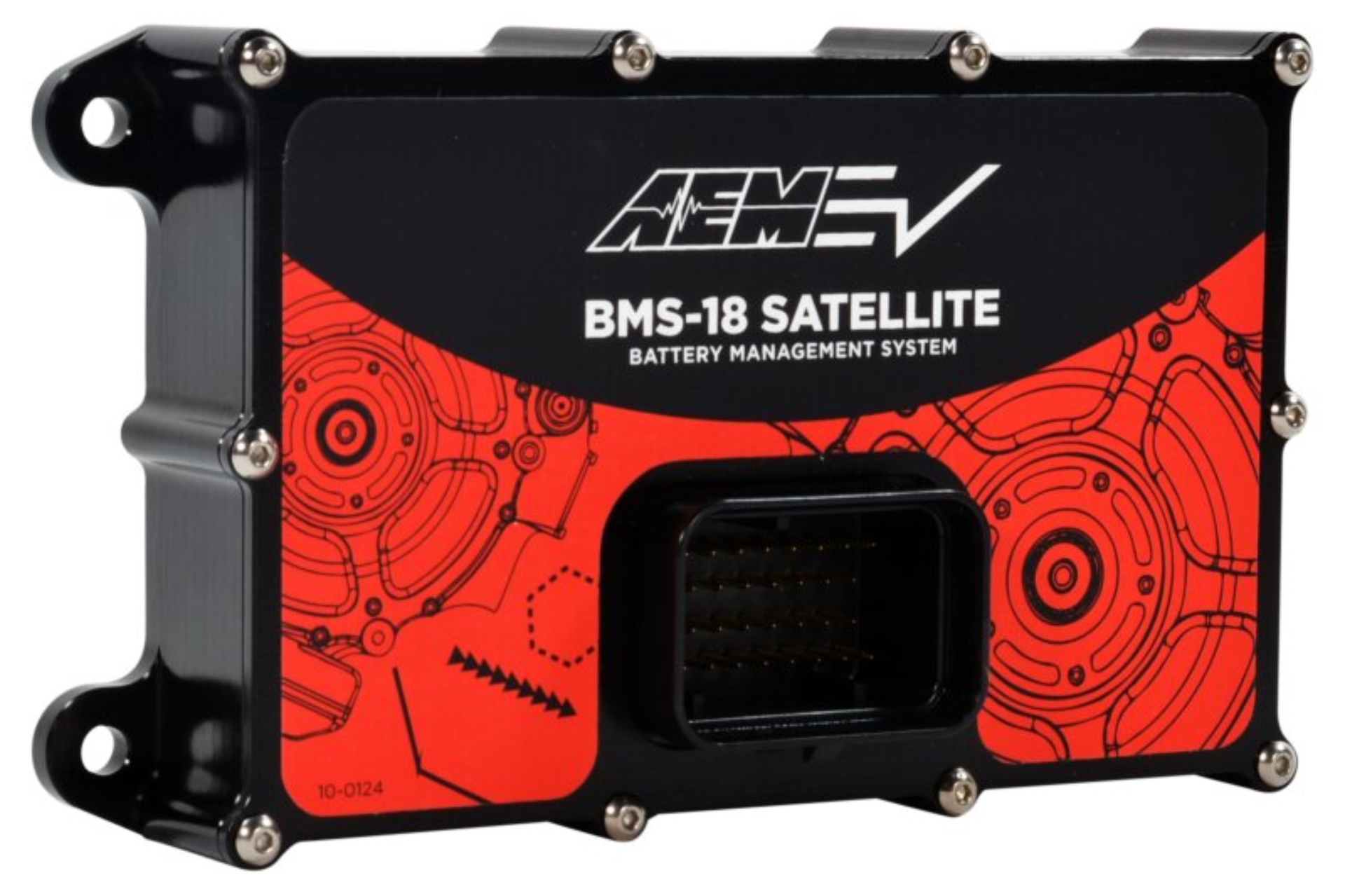

AEM Battery Management System Satellite (MUST BE USED WITH MASTER - 18 Cell Taps)
The AEM EV Battery Management System (BMS-18) is comprised of three components:
· Capable of measuring up to 18 cells and 3 temperatures (thermistors)
· Can be integrated into multiple satellite systems
· Connected to Master BMS as part of system
· Weatherproof connector and housing
Battery Management System Satellite
BMS Satellite Module for VCU
3. BMS-18 Satellite(s)
Battery Management
BMS KIT SATELLITE
