Wilwood WIL Brake and Clutch Pedals - 340-14361

Wilwood Part number: 340-14361 In stock

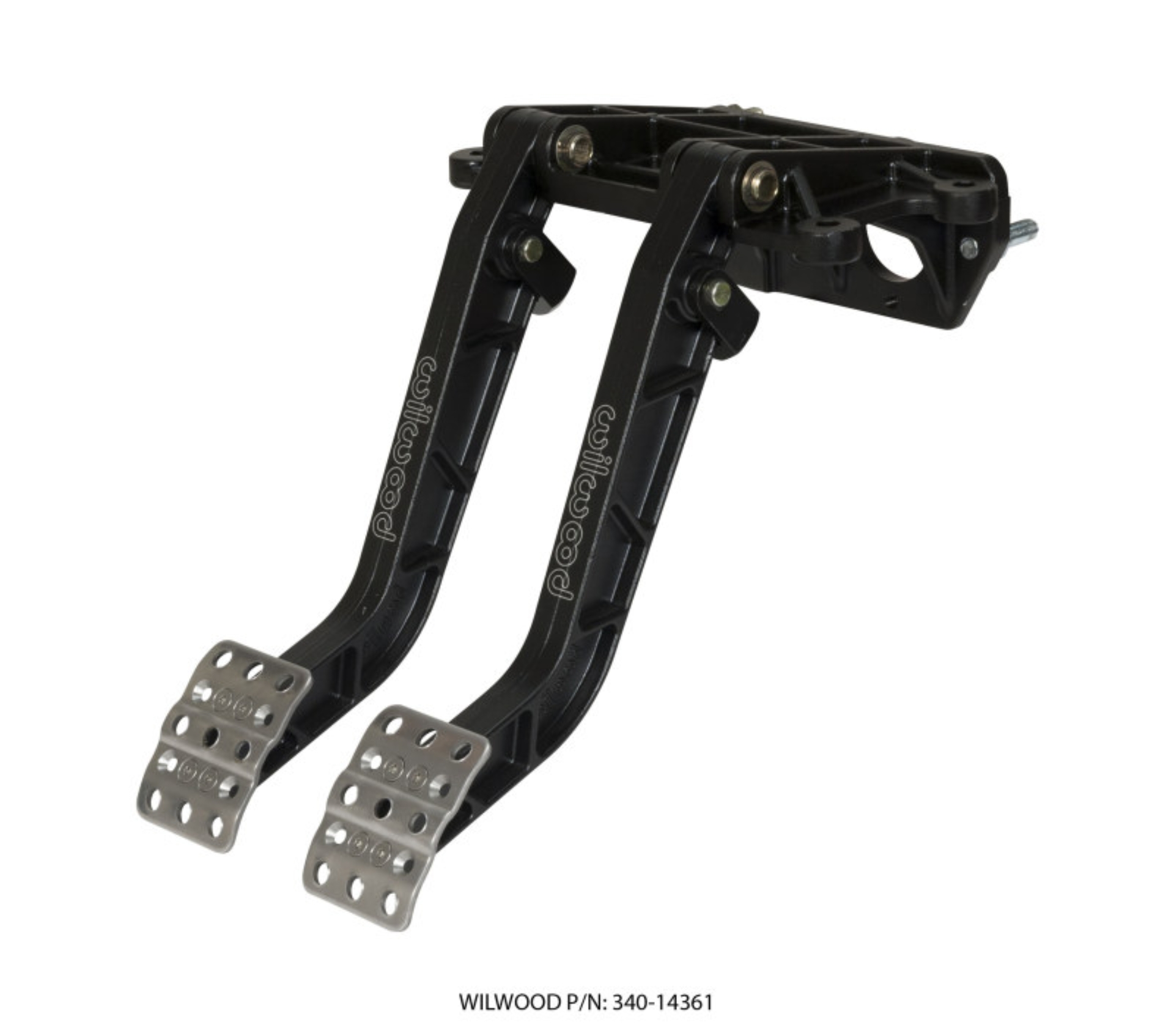

Picture of Wilwood WIL Brake and Clutch Pedals - 340-14361 Click image to zoom
Ready for checkout Secure this part for your build
$259.31
Secure checkout Availability and delivery details shown below Ask for fitment help
Availability: In stock
Part number: 340-14361
Manufacturer: Wilwood

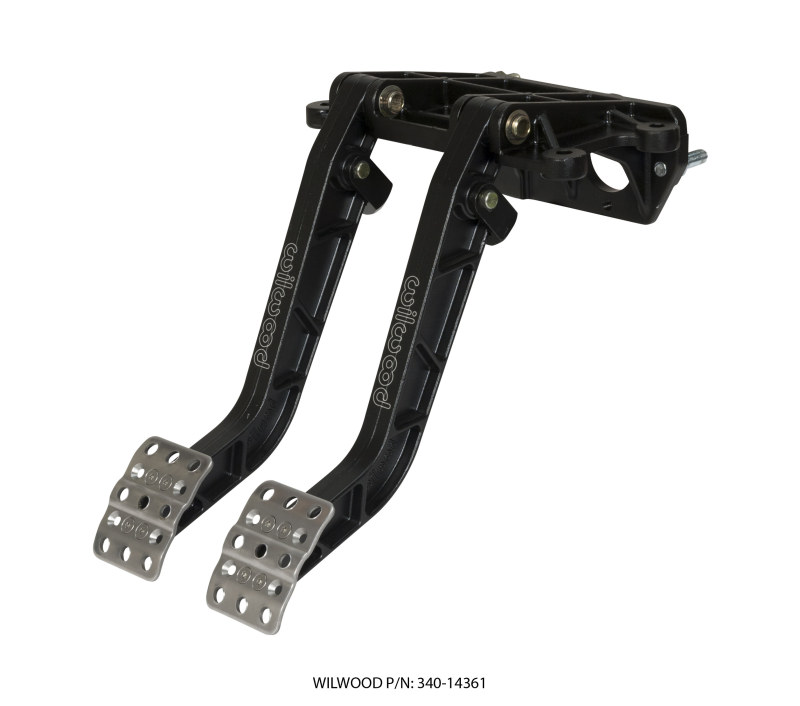

Wilwood Adjustable-Tandem Dual Pedal - Brake / Clutch - Fwd. Swing Mount - 7.0:1 - Black E-Coat
Be the first to review this product
In stock — usually ships within 1 business day

Wilwood's new Swing Mount Tandem Brake and Clutch Assembly simplifies installing a tandem outlet, single pushrod brake master cylinder in conjunction with a hydraulic clutch master cylinder in a forward position outside the firewall. It features a lightweight aluminum frame, with high strength reinforced I-Beam style forged pedal arms in either 6.25:1 or 7.00:1 ratios. The non-skid waffled pedal pads can be laterally adjusted for driver preference or clearance as necessary. Will fit most tandem cylinders available with 3.25 horizontal bolt spacing. Pedal base has additional mount points for vertical mount 2.50” spacing tandem master cylinders using 5/16-18 studs (not supplied with pedal assembly). Clutch master cylinder mount is also a 2.50” vertical mount and will use most popular single outlet cylinders.

Wilwood Adjustable-Tandem Dual Pedal - Brake / Clutch - Fwd. Swing Mount - 7.0:1 - Black E-Coat

PEDAL ASSEMBLY,FORWARD MT,7:1,TANDEM MASTER/CLUTCH

PEDAL ASSEMBLY,FORWARD MT,7:1,TANDEM

PEDAL ASSEMBLY

No vehicle listing found We do not have a vehicle-specific fitment row for this product yet.

This does not automatically mean the part is universal. Send us your year, make, model, trim, and the part number before ordering.

Ask fitment help
