Right Hand 3/4"-16 Thread This fabricated bushing end is designed to replace spherical rod ends on UMI Performance panhard bars for the 1982-2002 Camaro/Firebird and 2005-2009 Ford Mustang. This item will also work on many other brand panhard bars that utilize a ¾”-16 threaded right hand rod end. This Bushing end is designed to replace ¾”-16 threaded right hand rod ends by simply removing the rod end and screwing in this in polyurethane bushing assemble. This item works excellent to replace worn out rod ends or rod ends making unbearable noise. Bushing holder is an easy replacement and is supplied fully assembled with fluted bushings, grease fitting, new jam nut and durable powder coat. Our replacement bushing end features threads fabricated from 4140 Chrome Moly steel, DOM tubing and TIG welded for superior strength and thread durability.
This ¾"-16 RH poly bushing end replaces rod ends on UMI panhard bars and others. Supplied fully assembled with fluted bushings, grease fitting, jam nut, and powder coat. Built from 4140 Chrome Moly and TIG welded.
Supplied fully assembled with High Quality fluted bushings, grease fitting, new jam nut, and durable powder coat
Easy installation by removing old rod end and screwing in polyurethane bushing assembly
Also compatible with other brand panhard bars with 3/4"-16 threaded right hand rod end
Poly bushing end replaces ¾"-16 RH rod ends on UMI & similar panhard bars.

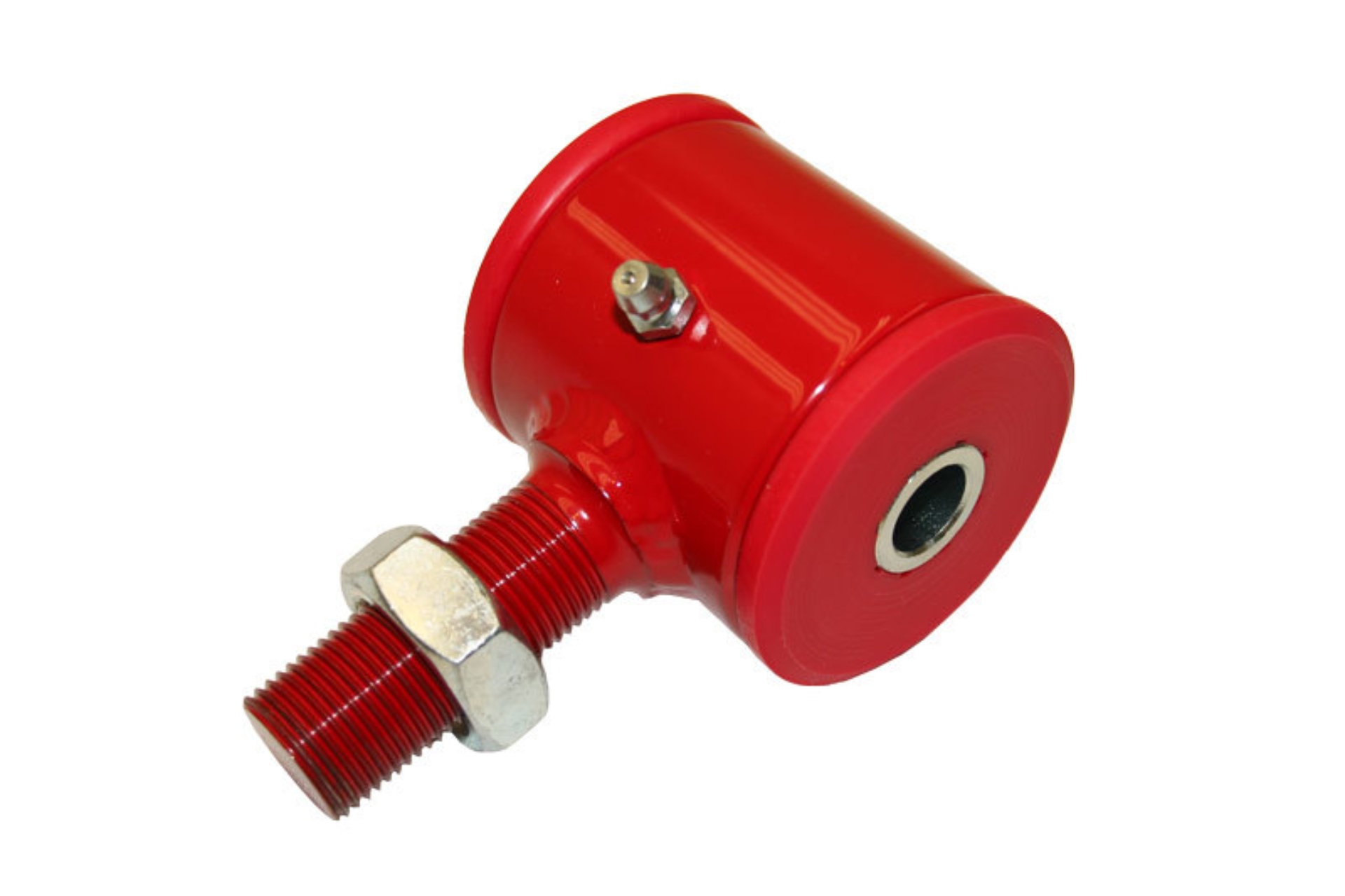

UMI Performance Panhard Bar Adjustable Polyurethane Bushing End- GM & Ford
Designed to replace spherical rod ends on UMI Performance panhard bars
DOM tubing and TIG welded for superior strength and durability
Fits 1982-2002 Camaro/Firebird and 2005-2009 Ford Mustang
Threads fabricated from 4140 Chrome Moly steel
UMI- Replacement Poly Bushing
1.750" of thread adjustment
3/4"-16 right hand thread
Bushing width of 1.875"
0.560" hole diameter
Poly Bushing
