100% hand TIG welded by Peterson's welding artisans, these dry-sump system oil tanks are as beautiful as they are functional. With years of continuous development, working with the most successful race teams in the most demanding environments, Peterson Oil Tanks are built to outperform. Manufactured using formed aluminum bodies with CNC machined aluminum flanges and fittings, keep weight to an absolute minimum. The race proven tank geometry, plumbing, and baffle design provide excellent deaeration of the scavenged oil while maintaining a tall column of oil over the pickup tube, ensuring your engine never misses a beat. With capacities on standard tanks ranging from 1.5 to 5 gallons along with many fitting layouts, there is a Peterson tank available to benefit any race program. All tanks disassemble quickly for cleaning and tops rotate separately from bottom sections for easy plumbing configuration. Peterson stock tanks meet most application needs, but in those rare cases where special requirements dictate a special tank, the Peterson Custom Tank Shop can accommodate any need. Start the process at https://www.petersonfluidsys.com/customshop.html
Built in dipstick, a male -10 AN fitting for an oil primer, a 1/2 NPT bung for your emersion style oil heater, and a convenient -12 port plug for draining your oil are the finishing touches on an oil tank that has thought of it all
Precision machined aluminum flanges and gasket held together with a durable v-band clamp deliver a no leak assembly, easy disassembly for cleaning, and the option to realign top and bottom halves of the tank to best fit your space
Two (2) -16 AN male fittings make a lightweight low profile connection with o-ring sealed 1 1/8 - 18” ports for scavenge return from your dry sump and they feed directly to an easily accessible integrated return oil filter.
Black 5 Gallon Oil Tank. All Aluminum construction with integrated oil filter, tank vent and dip stick. Single or dual oil return capable and a take apart design for easy cleaning. Diameter 9" Height 21.7" weight 11.7 lbs
Tank shape and plumbing as well as an advanced internal baffle system help deliver a tall column of deaerated oil to the -16AN pick-up tube making sure your oil supply never skips a beat
Additional fittings available to customize fitment. Part numbers Tank includes a block off fitting (in case you only need one return) and other fitting sizes are available separately
Tank includes a block off fitting (in case you only need one return) and other fitting sizes are available separately
Advanced plumbing facilitates a no mess breather and means there is no need for remote breather can
5 Gallon Oil Tank designed for, and race proven in the rigors of Dirt Late Model (DLM) racing
5 Gallon Oil Tank Dual Scavenge Inlet, -16 AN Oil Pickup Fitting

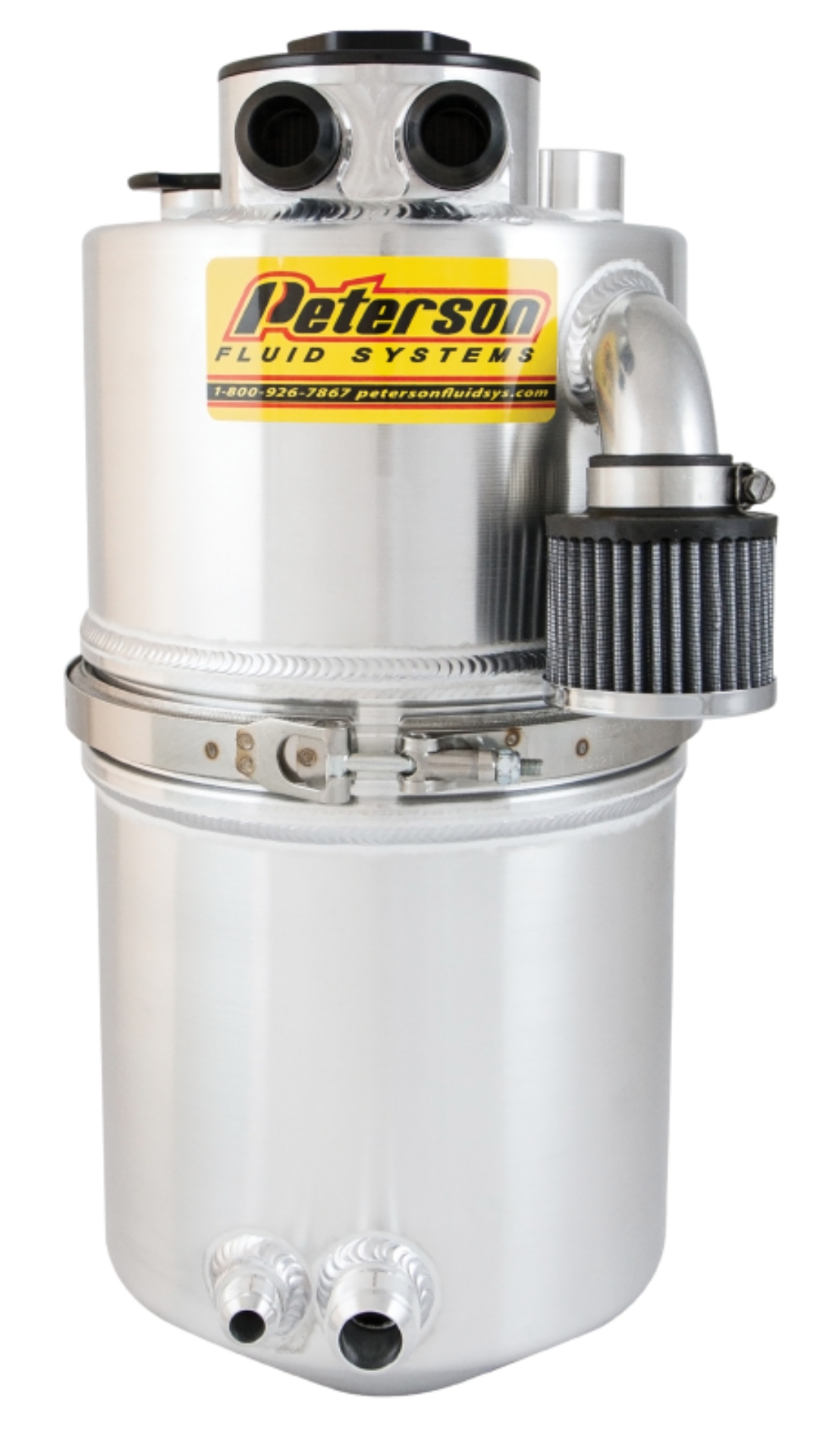

Peterson Fluid Systems Oil Tank 5 Gallon w/ Filter
5 Gallon Oil Tank
Engine Oil Tank
Made in USA
OIL TANK
