100% hand TIG welded by Peterson's welding artisans, these dry-sump system oil tanks are as beautiful as they are functional. With years of continuous development, working with the most successful race teams in the most demanding environments, Peterson Oil Tanks are built to outperform. Manufactured using formed aluminum bodies with CNC machined aluminum flanges and fittings, keep weight to an absolute minimum. The race proven tank geometry, plumbing, and baffle design provide excellent deaeration of the scavenged oil while maintaining a tall column of oil over the pickup tube, ensuring your engine never misses a beat. With capacities on standard tanks ranging from 1.5 to 5 gallons along with many fitting layouts, there is a Peterson tank available to benefit any race program. All tanks disassemble quickly for cleaning and tops rotate separately from bottom sections for easy plumbing configuration. Peterson stock tanks meet most application needs, but in those rare cases where special requirements dictate a special tank, the Peterson Custom Tank Shop can accommodate any need. Start the process at https://www.petersonfluidsys.com/customshop.html
Precision machined aluminum flanges and gasket held together with a durable v-band clamp deliver a no leak assembly, easy disassembly for cleaning, and the option to realign top and bottom halves of the tank to best fit your space
Additional fittings available to customize fitment. Part numbers 08-0300;08-0301;08-0302;08-1100;08-1300;08-1301;08-1302;08-0501;08-0502;08-0503;08-0505;08-0506;08-0101;08-0106;09-1561;19-5101;08-0400;08-0601
Tank shape and plumbing as well as an advanced internal baffle system help deliver a tall column of deaerated oil to the -12 AN pick-up tube making sure your oil supply never skips a beat
3 Gallon Oil Tank. All aluminum dual return construction has advanced internal baffling to ensure good oil column to support your dry sump system. Diameter 9" Height 16.1" weight 7.4 lbs
3 Gallon Oil Tank has dual return (two x -12 AN Female fittings) which is ideal for an air oil separator equiped system or one with dual scavange return lines
A male -10 AN fitting for an oil primer, and a convenient -12 port plug for draining your oil are the finishing touches for this premium tank
Advanced plumbing facilitates a no mess breather vented to a -12 female port
3 Gallon Oil Tank -12 AN Dual Scavenge Inlets, -12 AN Oil Pickup Fitting

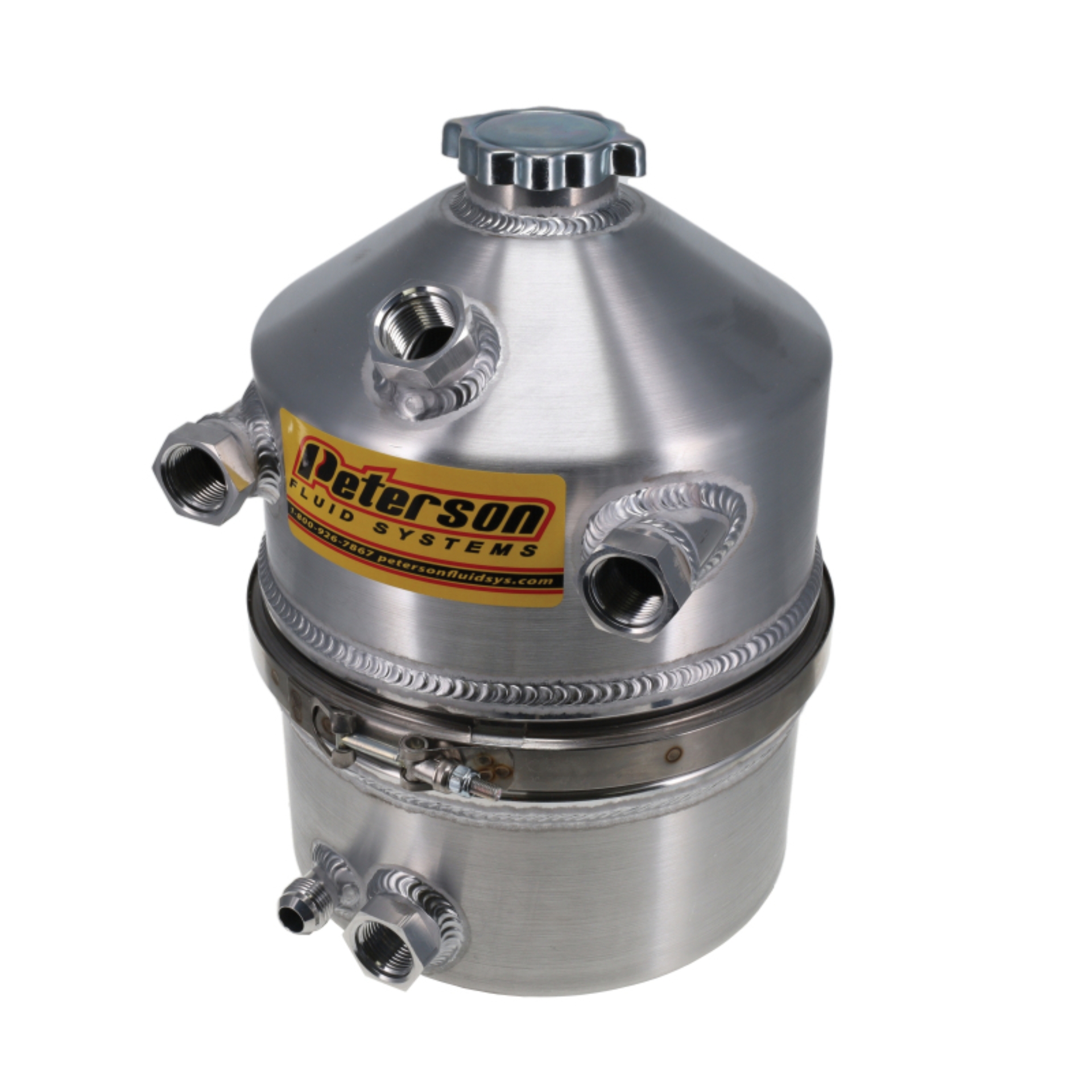

Peterson Fluid Systems Oil Tank 3 Gallon Dual In
All of this weighs in at 7.4 pounds
3 Gallon Oil Tank
Engine Oil Tank
Made in USA
OIL TANK
