If you are in the market for a high-mount LED Light bar and want to retain an almost factory look, the new ORACLE Integrated LED Light Bar is for you! While other offerings look obviously after-market or like an afterthought, our Patented Integrated design with its molded cowling integrates into the factory roof line of your Jeep. Along with blending in with the factory design, the unique cowl design also provides a quieter and more aerodynamic installation compared to traditional LED light bar setups. The polycarbonate housing is designed to match the styling of the factory hardtop. The light bar features reflector-facing LED technology so if it does not look like a traditional light bar that's because it's not. This reflector system is designed to provide optimized LED light output from the 30 individual 8W LED emitters creating at total of 18,000 raw lumens and a projection distance of over 600 meters. As an added bonus, the system features selectable Amber or White clearance lights. You can select to connect these lights to an Aux Switch, Parking Lights, DRL, or just leave them disconnected if you prefer not to have the clearance light feature on your Jeep.
The light bar ships in a matte black color (to match unpainted hard tops) if you have a painted hard top the light bar housing can also be painted to match. We recommend using a professional painter to properly prep, prime, and color-match paint the housing.
As with any Roof Mounted Light-Bar setup, automatic Car-Washes with overhead brushes should be avoided. Part is only compatible with models with Hard-Top. Part will not fit models with Soft Top or One Touch Roof

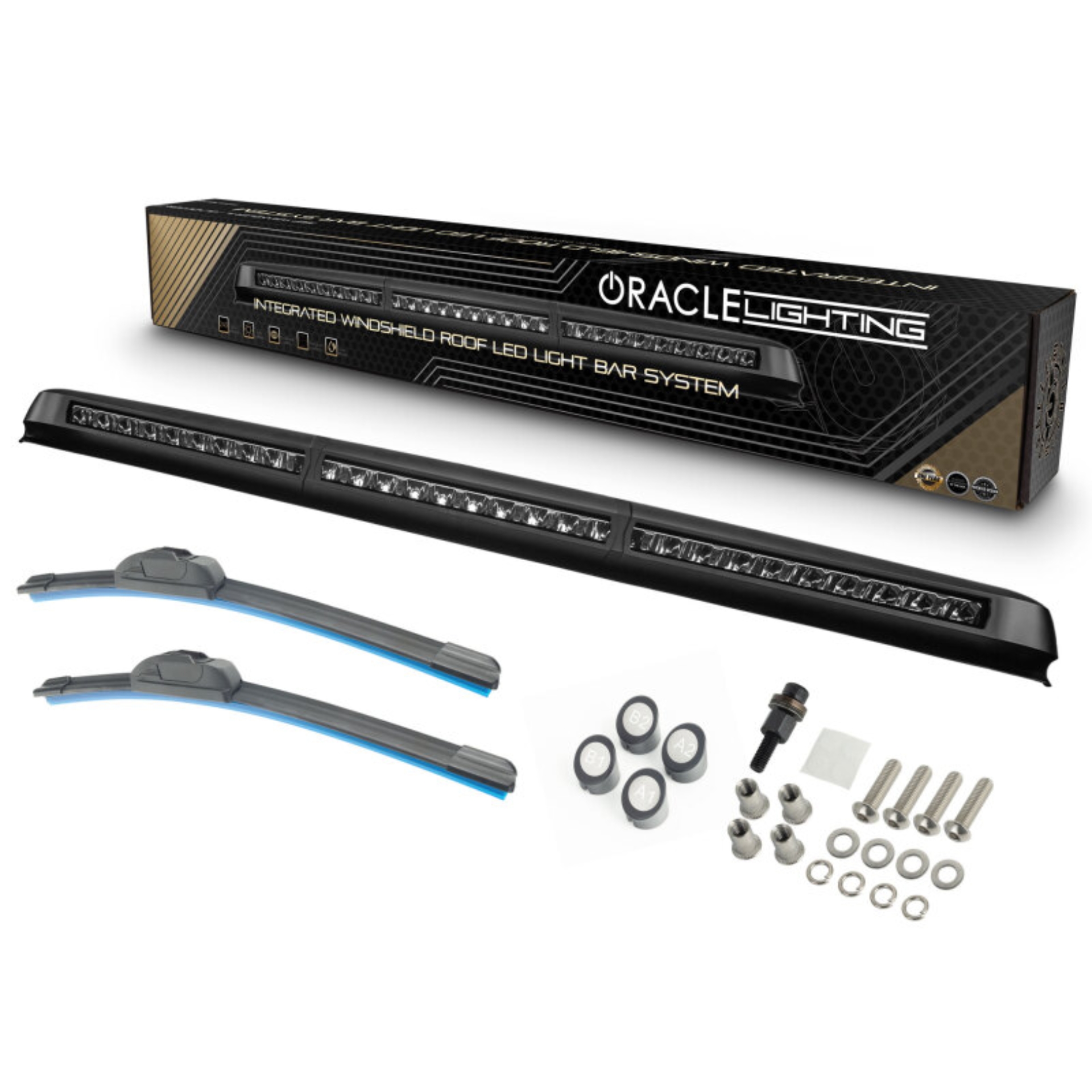

ORACLE Lighting Integrated Windshield Roof LED Light Bar System for Jeep Wrangler JL & Gladiator JT
Oracle Jeep Wrangler JL/Gladiator JT Integrated Windshield LED Light Bar System
Integrated Windshield Roof LED Light Bar System for Wrangler JL / Gladiator JT
Tool Included for Installation of Threaded Inserts
Under/Over Voltage and Reverse Polarity Protection
High-Powered Lighting 30x 8W LED Main Light
LED Lifespan 50,000+ Hours/ 1 Year Warranty
Selectable Amber or White Clearance Lights
Waterproof Rating: IP68 Ingress Protection
Precision LED Reflector-Facing Technology
Innovative and Integrated Patented Design
Reflector Material: Plated Polycarbonate
Stainless Steel Anti-Fog Breather Valves
Effective Lumen Light Output: 14,200LM
Outer Housing Material: Polycarbonate
Aerodynamic Integrated Housing Design
Lamp Housing Material: 6030 Aluminum
Lens: Material: Lexan Polycarbonate
Designed and Engineered in the USA
Max Projection Distance: 1Lux@648M
Lamp Finish: Polyester Powder Coat
Molded IP68 Waterproof Connectors
Innovative Patent-Pending Design
Raw Lumen Light Output: 18,000LM
Electronic Thermal Management
Beam Angle: 40° Driving Beam
Total Amp Draw: 14A @12V DC
Peak Intensity: 420,000CD
Total Wattage: 240 Watts
Color Temperature: 5500K
Off-Road Lighting
JE-JLJT-RTLB-B
Light Bar
