Oracle In-Line LED Amplifier

ORACLE Lighting Part number: 1615-504 In stock

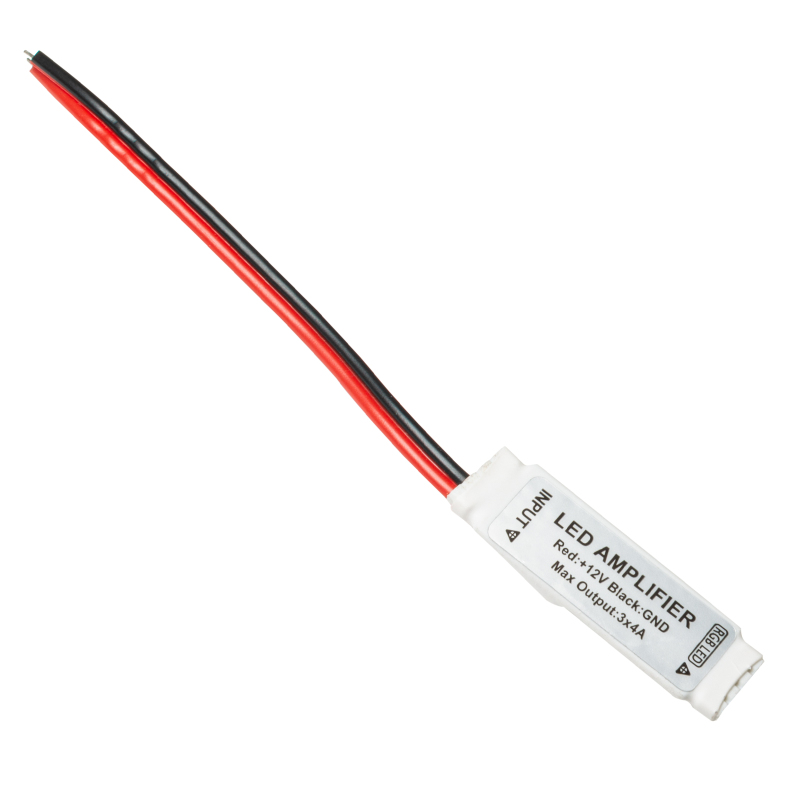

Picture of Oracle In-Line LED Amplifier Click image to zoom
Ready for checkout Secure this part for your build
$19.00
Secure checkout Availability and delivery details shown below Ask for fitment help
Availability: In stock
Part number: 1615-504
Manufacturer: ORACLE Lighting
Oracle In-Line LED Amplifier
Be the first to review this product
In stock — usually ships within 1 business day

In-line three channel RGB amplifier is used to increase the load capability and extend the signal of any universal RGB controller. This in line amplifier is required if you are exceeding the maximum load capability of any universal RGB controller. 2 x 4-pin RGB pigtail connectors included. With supplied RGB pigtail connectors, bridge 2 segments of LED RGB Strip with the LED amplifier in between. Connect RED and BLACK wires to 12 Volt power source. Product Specifications: - Voltage: 8-16V - Length: 1.6 in - Width: 0.4 in - Height: 0.1 in - Max load current: 12 Amps - Output: 3 channels - Working temperature: -4-140F- Static power consumption: < 1 Watt - Output Power: 144 Watts - RoHS compliant, FCC, CE Certified, cULus Classified - 2 Year Warranty

This amplifier is required if you are exceeding the maximum load capability of any universal RGB controller. Includes 2 x 4-pin RBG pigtail connectors.

Increases the load capability and extends the signal of any universal RGB controller.

Oracle - In-Line Amplifier - 1615-504

Accessory Power Module Connector

Oracle In-Line LED Amplifier

In-Line LED Amplifier

In-Line Amplifier

N/A

No vehicle listing found We do not have a vehicle-specific fitment row for this product yet.

This does not automatically mean the part is universal. Send us your year, make, model, trim, and the part number before ordering.
