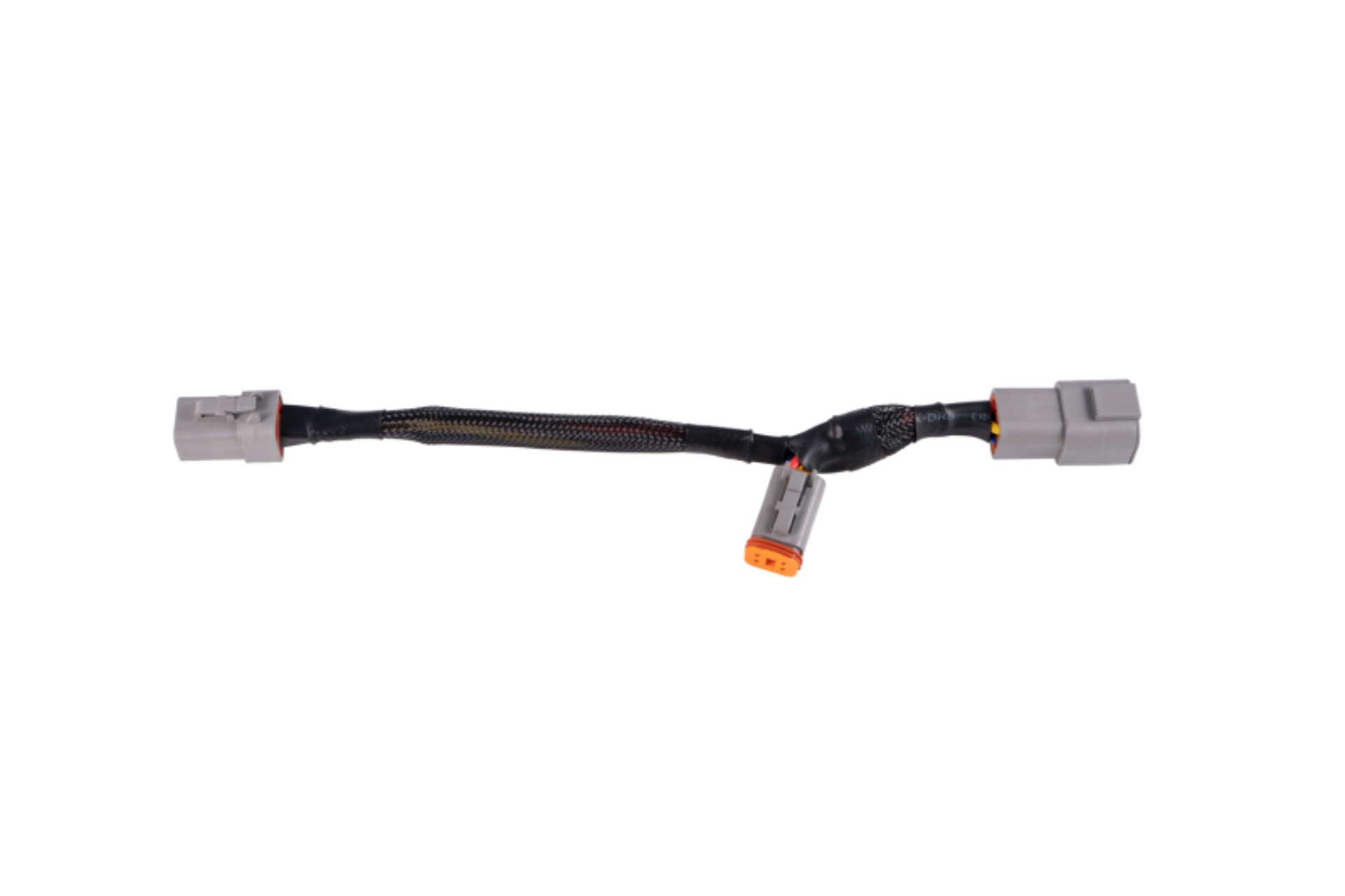

Diode Dynamics SS5 Ultra Heavy Duty CrossLink Splitter Harness (Single)

Features Splitter wires to connect the SS5 Pods on your 5-8 Pod Pro CrossLink Lightbar Standard Deutsch DT and DT-P 4-pin connectors Overview Power your Stage Series CrossLink Lightbar. These splitter wires are used to connect the SS5s on a 5-8 Pod Pro CrossLink Lightbar. All SS5 pods come standard with a DT 4-pin connector on the back of the pod. Due to power requirements, 5-8 Pod Pro CrossLink Lightbars require an Ultra Heavy Duty Wiring Harness to power the bar, which uses a DT-P 4-pin connector. Both CrossLink Splitters and a Terminating Splitter must be used to daisy-chain the SS5s together and connect to the wiring harness. The CrossLink Splitter has one DT-P 4-pin input connector, along with a 4-pin DT output and DT-P output connector, to be daisy-chained to the next pod. The Crosslink Splitter is used for all but one splitter harness connection, which is for the Terminating Splitter. The Terminating Splitter has one DT-P 4-pin input connector, and two DT 4-pin output connectors. The Terminating Splitter connects the two SS5 pods on the opposite end of the wiring harness. Each 5-8 Pod Pro CrossLink Lightbar will use a single Terminating Splitter. Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we assemble and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!

Power your Stage Series CrossLink Lightbar. These splitter wires are used to connect the SS5s on a 5-8 Pod Pro CrossLink Lightbar.

Splitter wires to connect the SS5 Pods on your 5-8 Pod Pro CrossLink Lightbar

Diode Dynamics SS5 Ultra Heavy Duty CrossLink Splitter Harness (Single)

Used to connect the SS5s on a 5-8 Pod Pro CrossLink Lightbar

Standard Deutsch DT and DT-P 4-pin connectors

Included Quantity: One (1)

Diode Dynamics - DD4125

SS5 Pod Connector
