Overview Upgrade your vehicles setup with the Diode Dynamics D-Switch! This advanced 8-channel switch panel gives you full control over any 12V accessory with four 30A and four 15A outputs, delivering serious power with unrivaled customization. Dedicated Backlight Channel. Unlike other 8-button controllers, the D-Switch includes a 9th button for the dedicated backlight bus bar, providing eight extra outputs for accent lighting. Activate all backlit accessories with a single press, freeing up main outputs for other functions. Dynamic Channel Assignment. Unlike one-to-one switch panels, the D-Switch allows multiple output channels per button, giving you complete control over your setup. You can also assign multiple functions of an output to different buttons, such as configuring one button for flashing and another for full power of the same light. Fast, Responsive Bluetooth App. Control and configure settings using the Bluetooth app for iOS and Android, which delivers instant response, no lag, and seamless programming. OEM Signal Integration. Three trigger wires are included to automatically activate your outputs with vehicle signals such as high beams, fog lights, or reverse lights. The ignition wire powers the controller when the vehicle starts, shutting it down automatically when turned off. The Night Mode wire adjusts output settings and controller brightness for low-light conditions. Solid-State, Durable Design. The D-Switch is built to withstand the toughest conditions, with a solid-state design and an IP67-rated aluminum heatsink for superior heat dissipation. No mechanical relays to wear out or physical fuses to replace! Whether for off-road lighting or other 12V accessories, the D-Switch offers unmatched power, customization, and reliability.

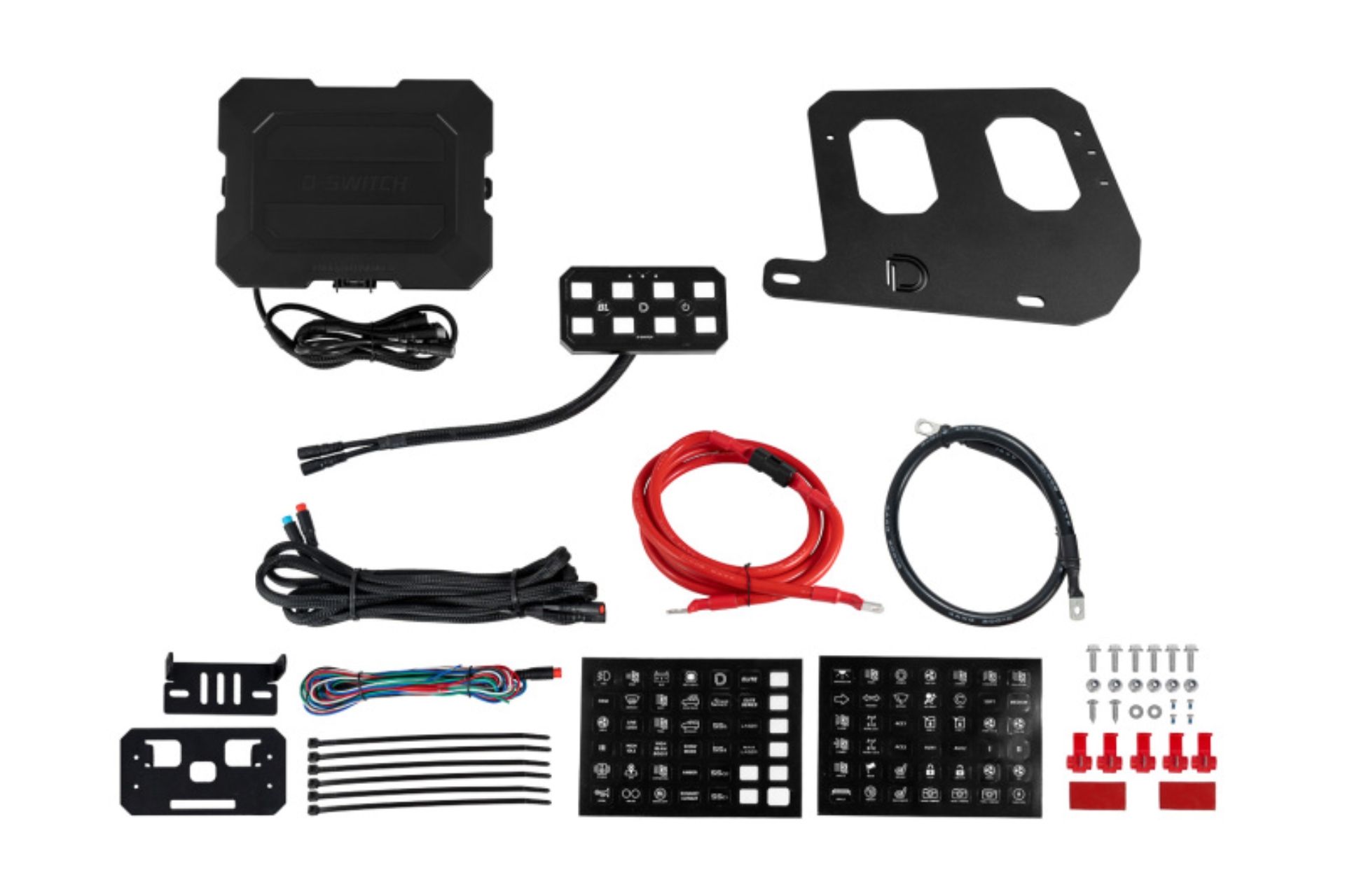

Included in the box: One (1) Switch Panel Hub One (1) Switch Panel Controller One (1) Controller Universal Mounting Bracket One (1) 10-foot Controller Wiring Harness One (1) Trigger Wires + Night Mode Wiring Harness One (1) 7-foot 4AWG Battery Cable One (1) 3-foot 4AWG Ground Cable Two (2) Button Sticker Sheets Five (5) T-taps Six (6) Zip Ties One (1) D-Switch Hub Mount Double-sided tape Installation Hardware Installation & Programming Guide
Program and control multiple lights with one button. Dedicated button and bus connector for backlight. Fast responsive Bluetooth App to control and customize settings.
Control all of your lighting from one programmable 8-channel switch
Three trigger wires for OEM-like control through vehicle signals.
Fast responsive Bluetooth App - no lagging or loading screens!
Solid-state fully-encapsulated design for extreme durability.
Dedicated backlight channel to control your accent lighting.
Group and control multiple outputs with a single button.
Diode Dynamics 07-17 Jeep Wrangler JK D-Switch Kit
Diode Dynamics - DD8786
