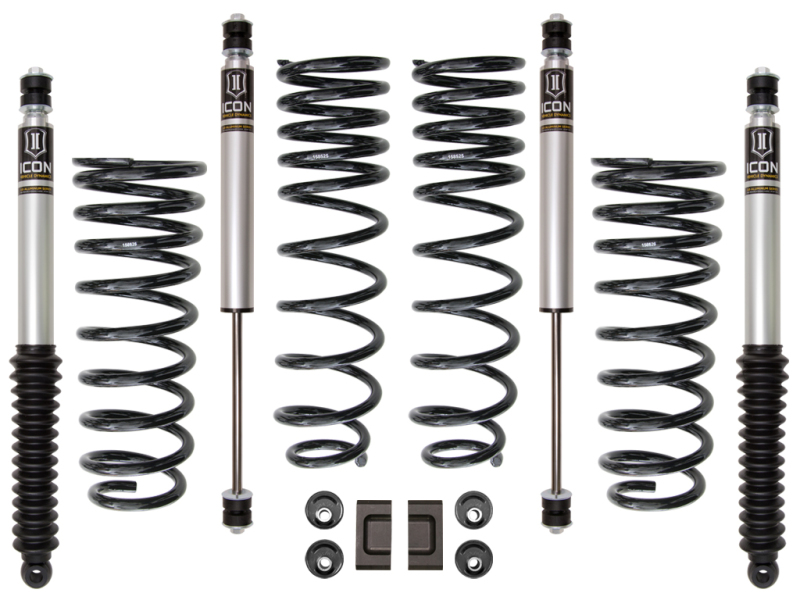

After an in-depth R&D process, ICON engineers have developed a 3” suspension system for the 80 Series that is aimed to improve on-road handling characteristics while also maximizing the Land Cruiser’s off-road potential. This Stage 1 system includes ICON-designed dual rate coil springs, caster correction bushings, sway bar relocation components, all bracketry and hardware required for install, and ICON Vehicle Dynamics 2.0 Aluminum Series shocks that feature a vehicle specific valving for optimized ride quality and balanced damping front to rear. This ICON Stage 1 System is the perfect entry level suspension system for drivers seeking a quality on-road ride with exceptional off-road characteristics as well.
TECH NOTE: ICON’s advertised lift heights are based around a typical 80 Series build which usually includes added weight of accessories such as heavier front bumper/winch and heavier rear bumper/spare tire. Lift heights may be higher than advertised if installed on a stock weighted vehicle.
Recommended Aftermarket Tires: 33" x 11.50" (Larger tires may fit but fender trimming and modifications will be required.)
ICON-engineered dual rate coil springs provide exceptional on-road ride quality and outstanding off-road performance
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
Vehicle specific tuned 2.0 Aluminum Series front and rear shocks offer superior shock damping and control
100% bolt-on design means no drilling, cutting or welding necessary for install
1991-1997 TOYOTA LAND CRUISER 80 SERIES 3" LIFT STAGE 1 SUSPENSION SYSTEM
ICON 91-97 Toyota Land Cruiser 80 Series 3in Stage 1 Suspension System
Recommended Aftermarket Wheels: 17x8.5" with 4.63” Backspace
Approximately 40% increased front wheel travel over stock
91-97 LAND CRUISER 80 SERIES 3" STAGE 1 SUSPENSION SYSTEM
Approximately 35% increased rear wheel travel over stock
6061 aircraft grade aluminum CNC machined components
APPLICATION NOTE #150: SHOCKS ARE FULLY SERVICEABLE
Corrosion resistant anodized aluminum shock body
2.0 aluminum body IFP shocks with 5/8" shaft
91-97 LC80 3" STAGE 1 SUSPENSION SYSTEM
OEM Wheels & Tires Fitment: Yes
Suspension Lift Kit
SUSPENSION SYSTEM
3” lift height
