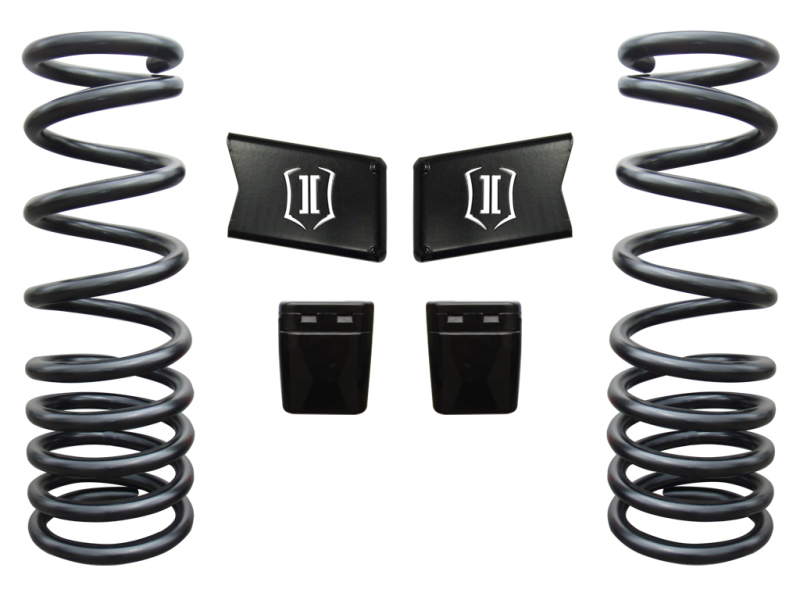

The ICON Vehicle Dynamics 2.5 inch Dual Rate Spring System for 2003 - 2012 Ram 2500 / 3500 4WD levels out your truck and offers you both incredible ride quality and performance. This 2.5 inch dual rate spring system offers an initial soft ride zone with an aggressive 2nd rate to help prevent bottoming out. These ICON springs have a dual stage powder coat process to help prevent corrosion and are shot peened and pre-set to prevent sagging. Also included are longer urethane bumpstops that have a more progressive bottom out, and sway bar drop brackets to compliment the additional travel. Front shocks are required for complete installation and we offer 2.0 Aluminum Series smooth body and Remote Reservoir, or our 2.5 Series Reservoir shock with or without CDC (compression damping control) Valve. All ICON shocks are engineered to be the correct length offering maximum droop and compression travel, then tuned to work hand in hand with these springs for the best available on and offroad performance.
Beyond the added ground clearance, the dual-rate design of ICON springs provides a softer initial rate for superb on-road comfort and a firmer secondary rate that delivers excellent bottoming resistance and superior off-road performance.
Recommended Aftermarket Tires: 33" x 11.50" (Larger Tires May Fit but Fender Trimming and Modifications will be Required)
Recommended Aftermarket Wheels: 8.5" wide wheel with 5.75" backspace
ICON 03-12 Dodge Ram HD 4WD 2.5in Dual Rate Spring Kit
2003-2012 RAM HD 4WD 2.5" LIFT DUAL RATE SPRING KIT
Increased wheel travel and ride quality over stock
03-12 RAM HD 4WD 2.5" DUAL RATE SPRING KIT
ICON engineered dual rate coil springs
RAM HD 4WD 2.5" DUAL RATE SPRING KIT
No drive shaft modifications needed
Factory Wheels & Tires Fitment: Yes
No change in towing capacity
Level stance front to rear
Less body roll than stock
RAM HD FRONT COILS
Coil Spring Set
212500
