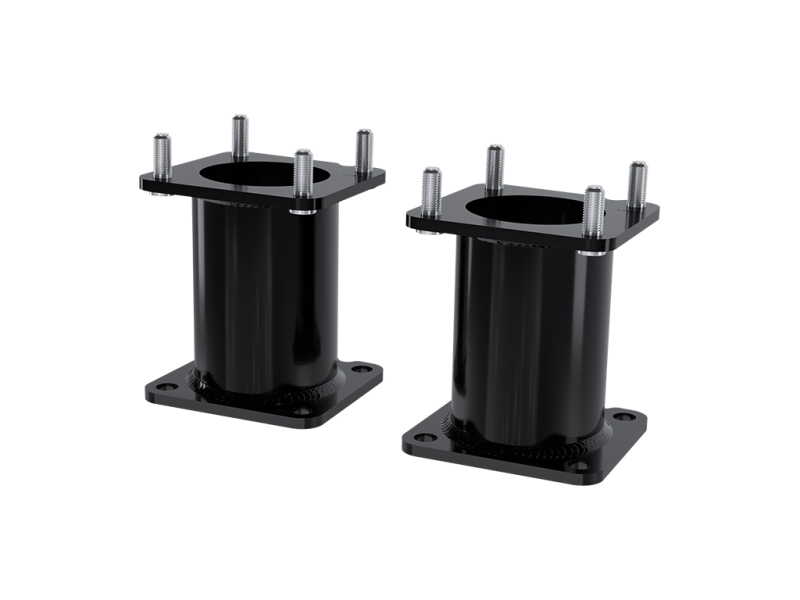

The ICON 6” Coilover Spacer Kit is used as part of the ICON 6” Lift Performance Suspension System for the 2022-2026 Toyota Tundra and allows the OE coilovers to be reused to obtain the required front lift at a lower cost while still allowing the option to upgrade to ICON 2.5 Series front coilovers in the future. These high-quality spacers are fabricated from CNC laser cut steel and powder coated with a semi-gloss black finish.
The ICON 6” Coilover Spacer Kit is used as part of the 6” Lift Suspension System for the 22-26 Tundra. Allows the OE coilovers to be reused to obtain lift while still allowing the option to upgrade to ICON front coilovers in the future.
APPLICATION NOTE #85: Advertised Lift Height Ranges Are For A Stock Equipped Vehicle. Increasing Weight Of Vehicle Due To Accessories Will Alter Lift Range.
APPLICATION NOTE #383: Requires additional components to complete system. DO NOT attempt install without part numbers 51010, 51011, 51012, 51014, and 51017.
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required.)
APPLICATION NOTE #142: Not compatible with vehicles equipped with Load-Leveling Rear Height Control Air Suspension.
APPLICATION NOTE #155: Requires recalibration of Advanced Driver Assistance Systems (ADAS) after install
APPLICATION NOTE #187: Only fits OE coilovers. Will not fit ICON or other aftermarket coilovers.
APPLICATION NOTE #153: Not Compatible With Adaptive Variable Suspension (Avs) Equipped Vehicles
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.625” Backspace / 16mm Offset
APPLICATION NOTE #154: Not Compatible With Tundra Sr5 Equipped With Trd Sport Package
Allows use of OE front coilovers with ICON 6” Lift Performance Suspension System
Lower cost option compared to ICON 2.5 Series front coilovers
ICON 22-23 Toyota Tundra/23 Sequoia 6in Coilover Spacer Kit
APPLICATION NOTE #144: Not Compatible With TRD Pro
Durable semi-gloss black powder coat finish
22-26 TUNDRA 6" COILOVER SPACER KIT
Compatible with 2WD and 4WD models
OEM Wheels & Tires Fitment: No
ICON Limited Lifetime Warranty
Fabricated steel construction
Suspension Strut Spacer
COILOVER SPACER KIT
51015
