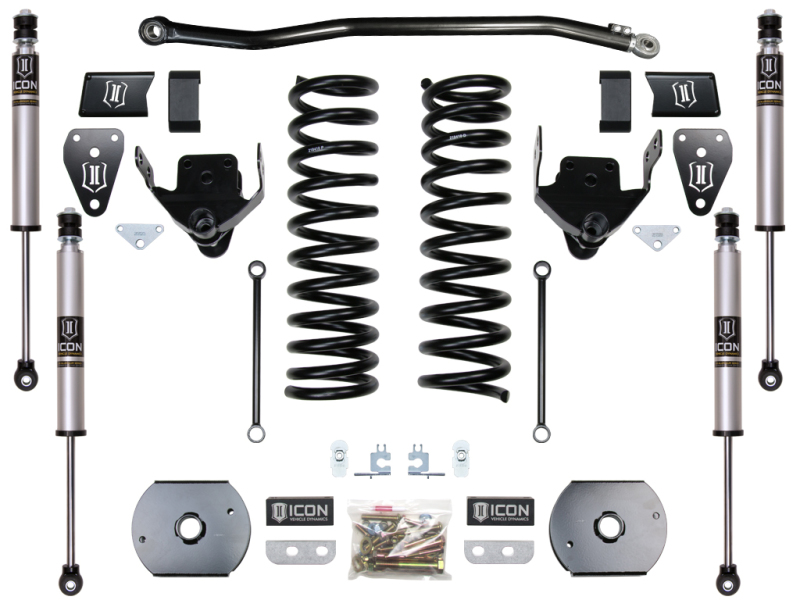

ICON Vehicle Dynamics suspension systems for the 2014-2018 Ram 2500 4WD were designed with exceptional performance and ride quality in mind. This Stage 1 system includes ICON-engineered 4.5” dual rate coil springs, high-strength laser cut bracketry, billet bump stop spacers, fabricated rear coil spacers, and all hardware necessary for a complete install. Vehicle-specific ICON 2.0 Aluminum Series shocks help deliver balanced performance front to rear, making it the perfect suspension system for any 2014-UP Ram 2500 4WD that's tasked with daily driving, towing, and light off-road use.
Recommended Aftermarket Tires: 37" x 12.50" (Larger tires may fit but fender trimming and modifications will be required)
APPLICATION NOTE #55: SHOCKS ARE FULLY SERVICEABLE. COILOVER HEIGHTS INDICATED ARE FOR A STOCK EQUIPPED VEHICLE
Vehicle specific tuned front and rear 2.0 Aluminum Series shocks provide superior damping and ride quality
APPLICATION NOTE #103: VEHICLES EQUIPPED WITH 2 PIECE DRIVESHAFTS REQUIRE CARRIER SHIM KIT 214211
ICON-engineered dual rate coil springs deliver exceptional vehicle control over varying terrain
APPLICATION NOTE #90: MAY NOT BE COMPATIBLE WITH OTHER MANUFACTURERS AFTERMARKET TRACKBARS
Recommended Aftermarket Wheels: ICON Alloys - 17x8.5" w/ 5.25” Backspace / 13mm Offset
Increased wheel travel and ride quality over stock with no change in towing capacity
Recommended Aftermarket Wheels: ICON Alloys - 18x9" w/ 5.50" Backspace / 12mm Offset
Recommended Aftermarket Wheels: ICON Alloys - 20x9" w/ 5.50" Backspace / 12mm Offset
APPLICATION NOTE #105: NOT FOR VEHICLES WITH REAR FACTORY AIR RIDE
2014-2018 DODGE RAM 2500 4WD 4.5" LIFT STAGE 1 SUSPENSION SYSTEM
APPLICATION NOTE #6: SPRINGS ARE RATED FOR DIESEL ENGINES ONLY
ICON 14-18 Ram 2500 4WD 4.5in Stage 1 Suspension System
14-18 DODGE RAM 2500 4WD 4.5" STAGE 1 SUSPENSION SYSTEM
Level stance from front to rear of vehicle
14-18 RAM 2500 4WD 4.5 STAGE 1 SYSTEM
OEM Wheels & Tires Fitment: Yes
Ships in Multiple Boxes
Suspension Lift Kit
Decreased body roll
SUSPENSION SYSTEM
