Fabtech 2019 Ford Ranger 4WD 2.5in Leveling System

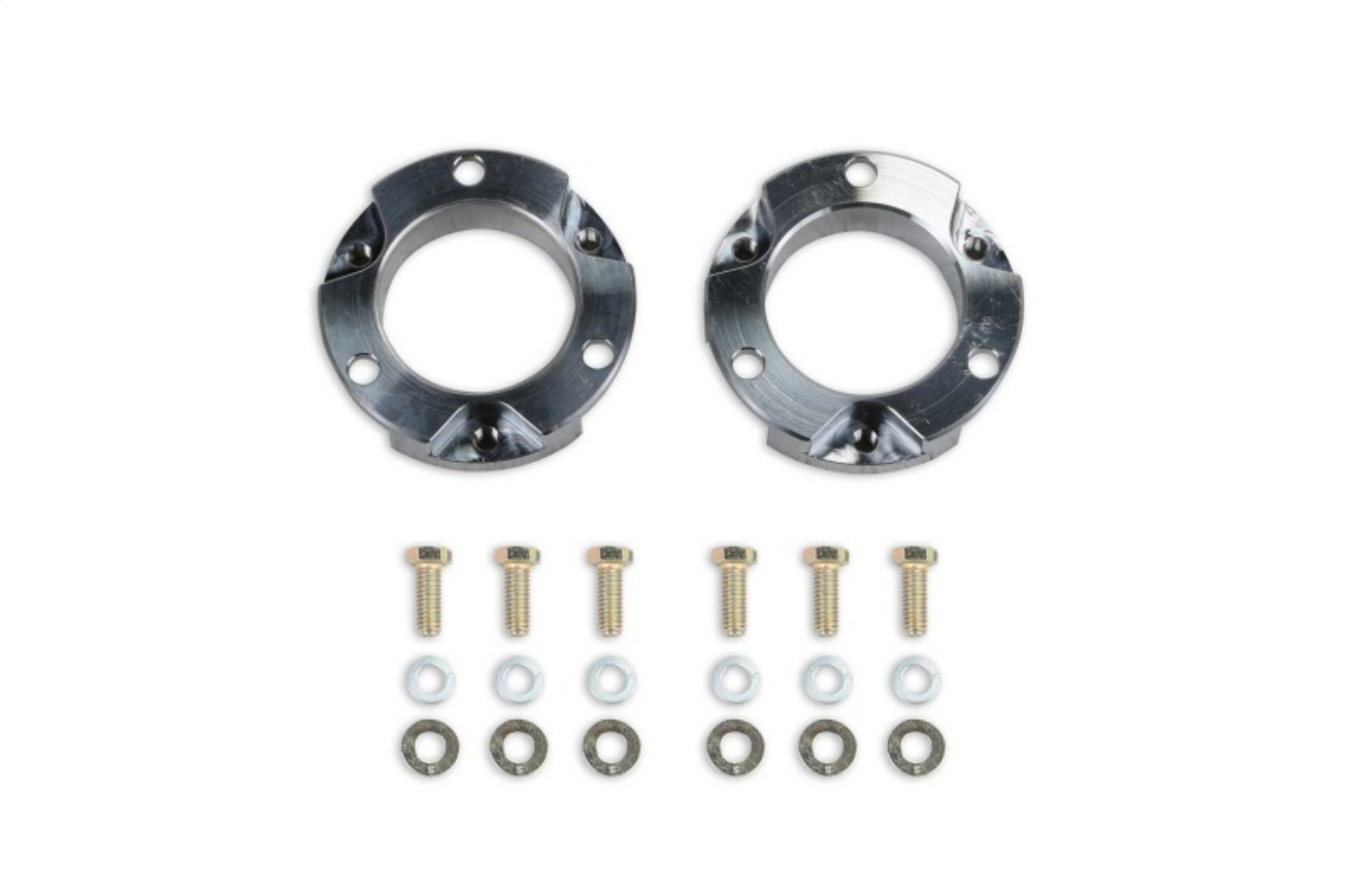

Fabtech's Ford Ranger Leveling Kit features CNC machined aluminum front billet spacers that work in conjunction with the factory Coilover shock assemblies. They are designed to bolt in without the disassembly of the factory coilover shocks for a fast installation. Fabtech engineers have established that the design of these billet spacers are at the maximum height without creating ball joint or tie rod bind when the suspension is cycling throughout the entire range of travel. The Fabtech spacers are installed on top of the coilover. This lift method retains the Ranger's compliant smooth ride with additional front lift to help level and provide clearance for oversized tires.

Properly Engineered To Eliminate Ball Joint/Tie Rod/Steering Bind

Fabtech 2019 Ford Ranger 4WD 2.5in Leveling System

5 Year 60000 Mile Powertrain Warranty

FABTECH PN FTL5210 LEVELING RANGER

Leveling System; 2.5 in. Lift;

Aircraft Grade Billet Aluminum

Suspension Leveling Kit

High Grade Hardware

Leveling System

SuspFrontLvlKt
