The all new Type-R Civic (FK8) is a great platform for soaking up highway miles during the weekday and tearing it up at the track on the weekend! With some minor modifications, the 2.0L Turbo engine is capable of producing some gnarly power. But, the added power of some tuning and bolt-ons will push the limits of the stock charge air system, necessitating an upgrade for the stock tube-and-fin intercooler, which is prone to heat soak. Thankfully Injen has developed a highly efficient bar-and-plate intercooler engineered specifically to fit the Type-R Civic. The FM1582i intercooler is a direct-fit unit and features a 25% increase in core volume while requiring no modification to your civic. This cooler is constructed with cast end tanks and precision CNC-machined aluminum flanges for use with the factory intercooler piping. The Injen Honda Civic Type-R intercooler reduces intake temperatures by 30?F and provides an increase of up to 27 HP and 23 Ft. Lbs. of torque while retaining factory boost pressure across the core. This Civic Type-R 2.0L turbo intercooler also features precision TIG-welding and has a unique silver finish that is reminiscent of brushed aluminum. With a one-hour installation, great power, temperature benefits, and a Lifetime Warranty, the Injen FM1582i intercooler is a must-do upgrade for any stock or modified Civic type-R.
The all new Type-R Civic (FK8) is a great platform for soaking up highway miles during the weekday and tearing it up at the track on the weekend! With some minor modifications, the 2.0L Turbo engine is capable of producing some gnarly power. But, the added power of some tuning and bolt-ons will push the limits of the stock charge air system, necessitating an upgrade for the stock tube-and-fin intercooler, which is prone to heat soak. Thankfuly Injen has developed a highly efficient bar-and-plate intercooler engineered specifically to fit the Type-R Civic. The FM1582i intercooler is a direct-fit unit and features a 25% increase in core volume while requiring no modification to your civic. This cooler is constructed with cast end tanks and precision CNC-machined aluminum flanges for use with the factory intercooler piping. The Injen Honda Civic Type-R intercooler reduces intake temperatures by 30°F and provides an increase of up to 27 HP and 23 Ft. Lbs. of torque while retaining factory boost pressure across the core. This Civic Type-R 2.0L turbo intercooler also features precision TIG-welding and has a sick Raw finish. With a one-hour installation, great power, temperature benefits, and a Lifetime Warranty, the Injen FM1582i intercooler is a must-do upgrade for any stock or modified Civic type-R.
Note: This product is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicles.
Intercooler Kit; Incl. Bar And Plate Front Mount Intercooler/End Tanks/Hoses; HP Gains +27.0 HP/Torque Gains +23.0 ft. lbs.; Raw Finish;
Front Mount Intercooler, Part No. FM1582i, 2017-2021 Honda Civic Type R L4-2.0L Turbo.

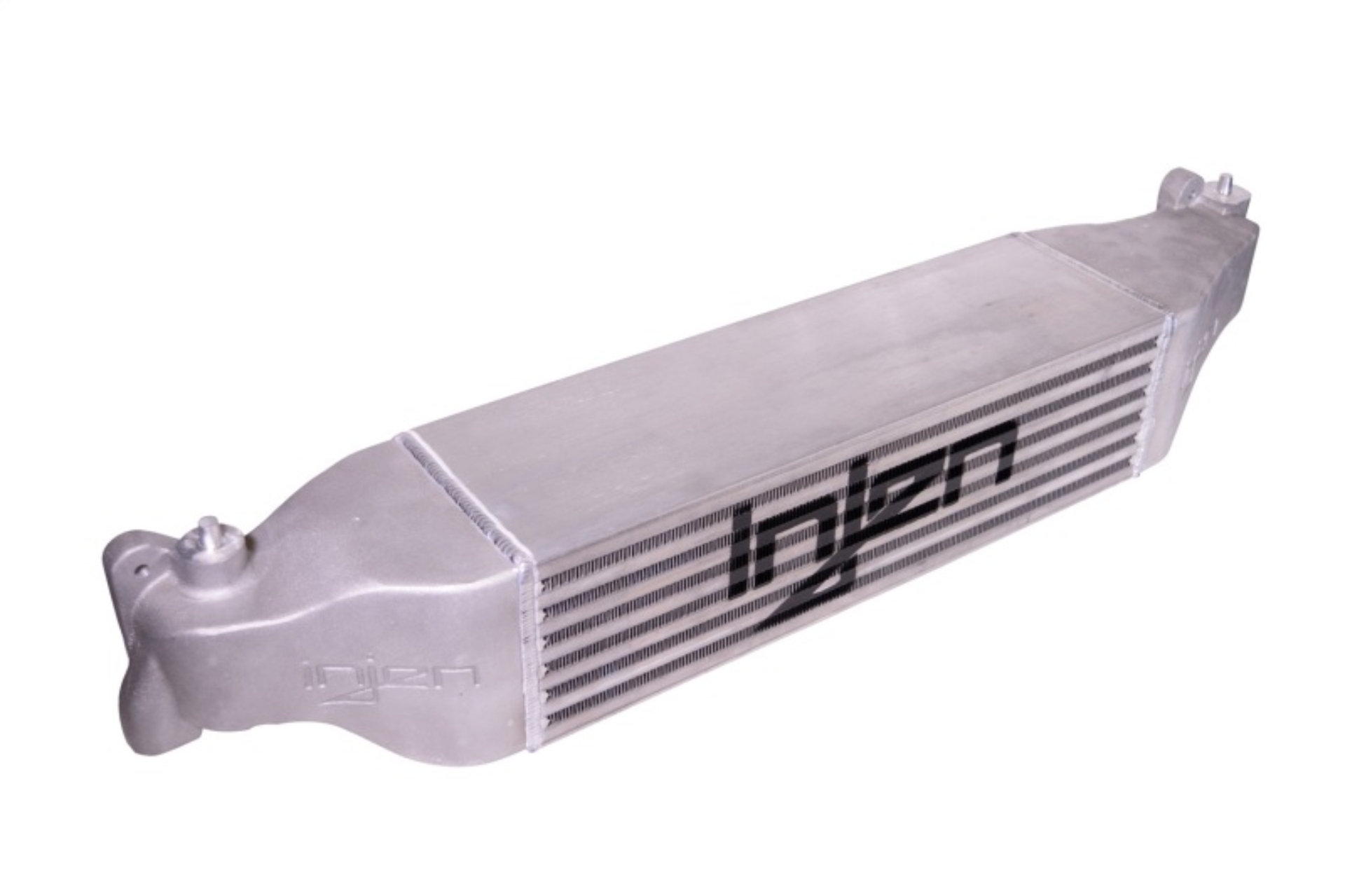

Injen 17-20 Honda Civic Type-R (FK8) I4 2.0L Bar and Plate Front Mount Intercooler
No piping included. Optional intercooler piping kit available. Part # SES1582ICP
Optional intercooler piping kit available. Part # SES1582ICP
Optional intercooler piping kit available. P/N# SES1582ICP
Dyno Proven gains of up to 27 hp and 23 lb-ft. of torque
Intercooler core dimensions 21.06 x 5.750 x 5.28
CAD designed end tanks for optimal air flow.
100% Direct bolt-on front mount intercooler
Designed to work with the stock calibration
Injen Technology Limited Lifetime Warranty
All Factory Mounting Locations
Made in Pomona, California USA
Front Mount Intercooler
Injen Intercooler Kit
No piping included.
TChrgrIcoolerKit
Intercooler Kit
