The intercooler cores are spec'd out by CSF and custom built by PWR. Featuring two rows of rolled cooling tubes with inner fins, these cores make for the most efficient intercoolers available. Because of this, they are able to eliminate heat soak and lower IATs much more efficiently than traditional Bar & Plate or Tube & Fin designs. This gives us maximum performance for extended periods of time under demanding driving conditions and for vehicles with increased power levels through modifications and tuning.
CSF has integrated the charge pipe into the design of the top end tank with an aluminum welded pipe replacing the factory bolt-on plastic part which is sealed with an inner O-Ring. The head technician at Pacific German stated that the OEM O-Rings may be a factory design flaw as they've had to replace them on several stock systems already. This failure causes boost leaks and triggers a check engine light which is quite surprising on such a new vehicle.
The CSF #8211R Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.
The Urus/RS Q8 Intercoolers have been meticulously designed and engineered to fit exactly like the OEM units they replace. Utilizing all factory mounting points, the installation is straightforward with a "drop-in fit" design. No cutting or modifications are required, and there is no need for aftermarket shrouds or hoses. All mating OEM components can be reused and reinstalled.
The CSF Intercoolers feature 100% TIG-welded machined billet aluminum end tanks. This feature is not only aesthetically pleasing, but also offers improved longevity and durability. The CNC machined billet end tanks are ready to withstand increased boost pressures from higher performance tunes, as well as upgraded turbochargers.
The CSF by PWR Urus/RS Q8 Twin Intercooler Set features Formula-1 grade cores which offer the greatest reduction in IATs and help eliminate heat soak. The Billet Aluminum construction offers the greatest strength and durability possible.
CSF once again has teamed up with leading Southern California VAG specialists, Pacific German from Orange County, CA to design, develop, and test the new intercooler kit on their very own Lamborghini Urus.
Raw Finish with no coating for the "show" look or custom finishes available upon request (Available in Thermal Dispersion Ceramic Coating - CSF #8211)
Eliminates Heat Soak and Lower Intake Air Temperatures (IAT) for Maximum Performance in High-Performance and Race Conditions
The CSF #8211 comes in Thermal Black Heat Dispersion. Also available in a raw billet aluminum finish (CSF #8211R).

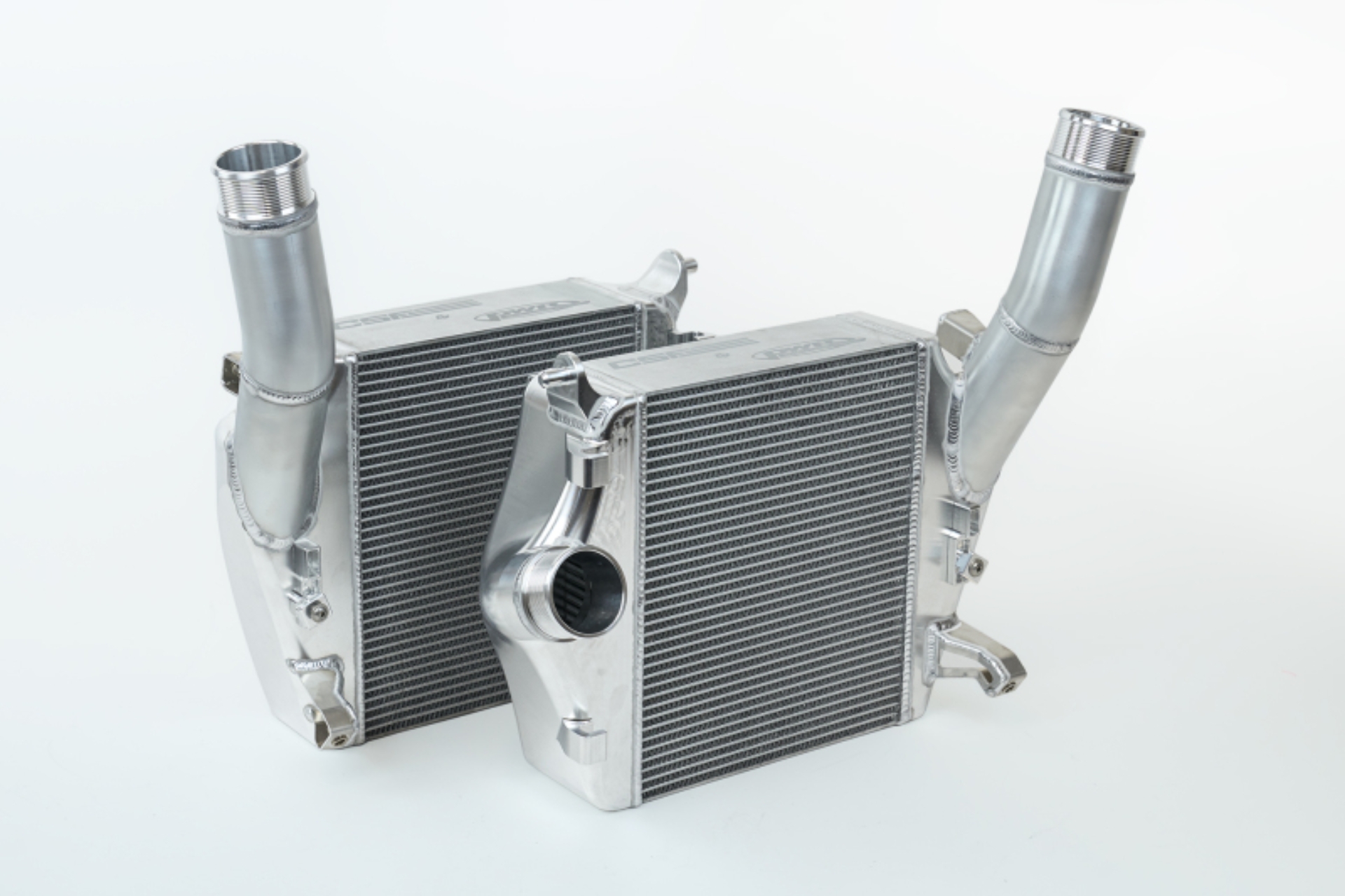

CSF 2019+ Lamborghini Urus / 2020+ Audi RS Q8 / SQ8 / SQ7 High Performance Intercooler System- Raw
Formula-1 Performance Grade Cores by PWR (2-Row Cores features Rolled Tubes w/ Inner Fins)
Integrated 1/8th NPT Port with plug on lower outlet tank for Water-Methanol Injection
True Plug-and-Play "Drop-in Fit" Installation Requires Absolutely No Modifications
100% TIG Welded vs OEM Crimped Plastic End Tanks for Maximum Strength & Durability
1-Piece Welded Charge Pipe vs OEM Bolt-On Pipe w/ O-Ring (known failure point)
OEM Style Inlet/Outlet Connections for Precise Fitment With All OEM Components
Lamborghini Urus / Audi RS Q8 Twin Intercooler Set - Raw Billet
R&D and Performance Testing by Pacific German & VF Engineering
Sold as a pair (Left & Right Intercoolers)
CSF 8211R - Urus/RS Q8 Intercooler (Raw)
Made in the USA at PWR North America
CNC Machined Billet End Tanks
CSF Intercooler
Intercooler
