CSF Bar & Plate Intercooler Cores are used by some of the most renowned tuning and performance companies in the industry. This 22" x 10" x 4" Horizontal Flow Core is rated for 900 WHP and the perfect fit for your custom high-performance intercooler. Each CSF Intercooler core is pressure tested at 120psi for maximum reliability in extreme boost applications. Hand-Built using jigs & fixtures for a perfectly straight core in a clean room using gloves inside the CSF factory to ensure proper brazing and a clean surface for future welding. Featuring a multi-louvered high precision staggered fin design (for both ambient and pressure sides of the core) for the best heat transfer possible.
CSF Bar & Plate Intercooler Cores are used by some of the most renowned tuning and performance companies in the industry. This Horizontal Flow Core is rated for 900 WHP and the perfect fit for your custom high-performance intercooler.
The CSF #8174 is a universal cooling product and will require some custom work and/or fabrication to install. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.
Manufactured by Hand in a Clean Room Using Gloves Inside the CSF Cooling Factory to Ensure Proper Brazing and a Clean Surface for Future Welding
Multi-Louvered High Precision Staggered Fin Design (for Both Ambient and Pressure Sides of the Core)
Individually Boxed and Protected for Secure Transport Through Single Piece Mail Services
Batch Brazed in CSF's State-of-the-Art Digital Vacuum Brazing Oven (12 Ovens in Total)
Strict Quality Control and Quality Testing, Including Individual Pressure Testing
Hand-Built Using Jigs & Fixtures for a Perfectly Straight Core for Easy Welding
Pressure Tested at 120psi for Maximum Reliability in Extreme Boost Applications

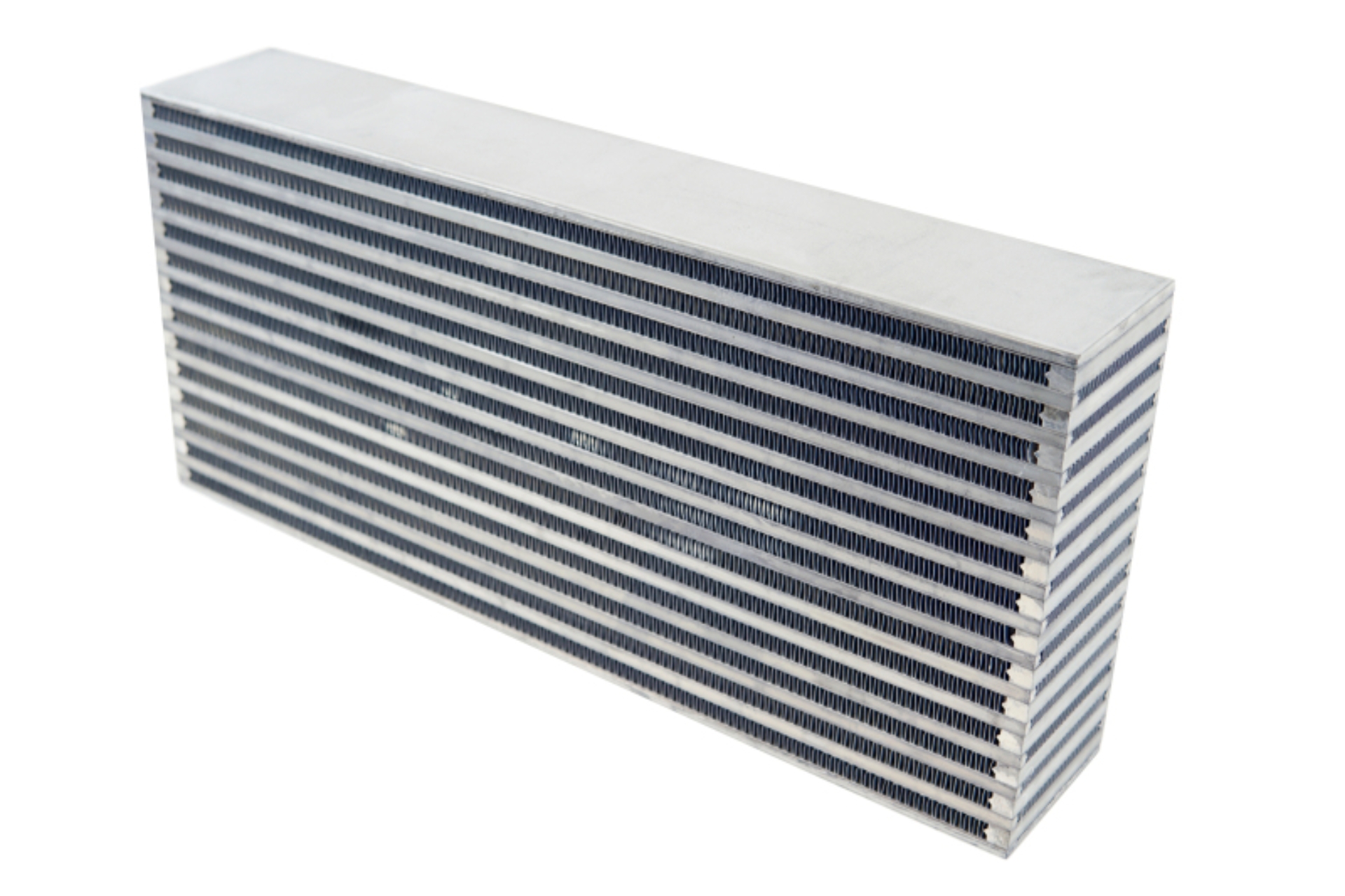

CSF Magnum 900+hp Bar & Plate Intercooler Core - 20in L x 12in H x 4in W
High-Performance Bar & plate Intercooler Core 22x10x4
Dimensions: 22"x10"x4" (560mm x 250mm x 100mm)
Heavy-Duty Bar & Plate Intercooler Cores
CSF 8174 - Universal Intercooler Core
CSF Intercooler Core
Intercooler Core
HP Rating: 900
Cross-flow
