The newer 2nd gen B58 engine, found in the Mk5 Supra, has already been proven to be an incredible platform for performance enthusiasts - taking the performance and motorsports industry by storm in just a couple of years since its release. Customers are now pushing through the 1000whp mark on their B58 powered vehicles with the CSF manifold. The OEM water-cooled charge air cooler intake manifold for the B58 engine is adequate in cars with little or no modifications, but starts to really show its weakness in cars with bolt-on mods, turbo upgrades, increased fueling (such as port injection), and performance tuning. The OEM intercooler system has also been known to suffer from heat soak in demanding racing conditions such as time attack, endurance racing, drag racing, drifting, and even spirited street driving. This can cause the car to pull timing out of the engine due to high intake air temperatures (IATs), and can cause "limp mode" once temperatures reach a certain threshold, as the vehicle's ECU attempts to protect the engine.
With over 1500 hours of design, development, machining, and testing, CSF, along with partners VF Engineering (USA) and Custom Plenum Creations (Australia), has now brought a state-of-the-art CNC machined, high-performance Charge-Air Cooler Manifold to the B58 platform (Mk5 Supra and BMW models). This product solves what has been commonly known as a weak link of an otherwise impressive new engine platform. With the larger and more efficient water-to-air intercooler performance, lower pressure drop across the system, included fuel rail, kit for top feed port injection, and several other industry-leading features, the CSF Super Manifold will allow B58 owners to maximize the performance of their vehicles and push the limits further than what has been previously possible with this new platform.
The CSF #8200B Cooling product is designed to be a "Drop-In Fit" application. The product will install in the OEM Location with no modifications necessary unless otherwise noted or instructions are included in the product package. Please see the manufacturer repair manual for standard installation instructions. If you do not feel confident installing this product CSF recommends taking it to a qualified installation facility.
With the larger and more efficient intercooler performance, lower pressure drop, included fuel rail & kit for top feed port injection, and other industry-leading features, the CSF Super Manifold allows B58 owners to maximize performance.
The CSF manifold is not designed to operate above 60 PSI. Users who chose to operate their vehicle with the CSF manifold over 60 PSI does so at their own risk. Operation at these pressure levels will void the CSF Limited Warranty.
The CSF #8200B comes in a Thermal Black Heat Dispersion finish. Also available in raw billet aluminum (CSF #8200) & in custom colors/finishes (CSF #8200C).
CSF pressure tests each #8200 / #8200C manifold at 60-70 PSI for a period of 2-3 minutes during the Quality Control and Inspection process.
Comes Finished in Thermal Black Heat Dispersion Coating - Made by World-Leading Automotive Machinist Custom Plenum Creations in Australia
Individual 1/8" NPT Breather Ports for Both Inlet/Outlet Water Connections on Back of Manifold for Easy Air-Bleeding of the System
Includes Hardware and Installation Kit with Picture Diagrams Containing 28 Different Parts for Easy Installation
Easy Access to Spin-Off Oil Filter for Quick Oil Changes - No Need to Uninstall Manifold Every Oil Change
Allows for Even Spray Distribution and Control for Maximum Performance and Engine Protection
Individual 1/8" NPT Ports on the Top of Each Cylinder Runner for Nitrous or Meth Injection
Utilizes a High Performance, Motorsports-Grade Bar/Plate Air-to-Water Intercooler Core
Integrated Air Divider in Inlet Tank Evenly Distributes Airflow Throughout the Core
Integrated Sensor Pad with Three 1/8" NPT Ports to Measure Additional Parameters
Double the Capacity of the OEM Core (12 Rows of Water Cooling vs. OEM 6 Rows)

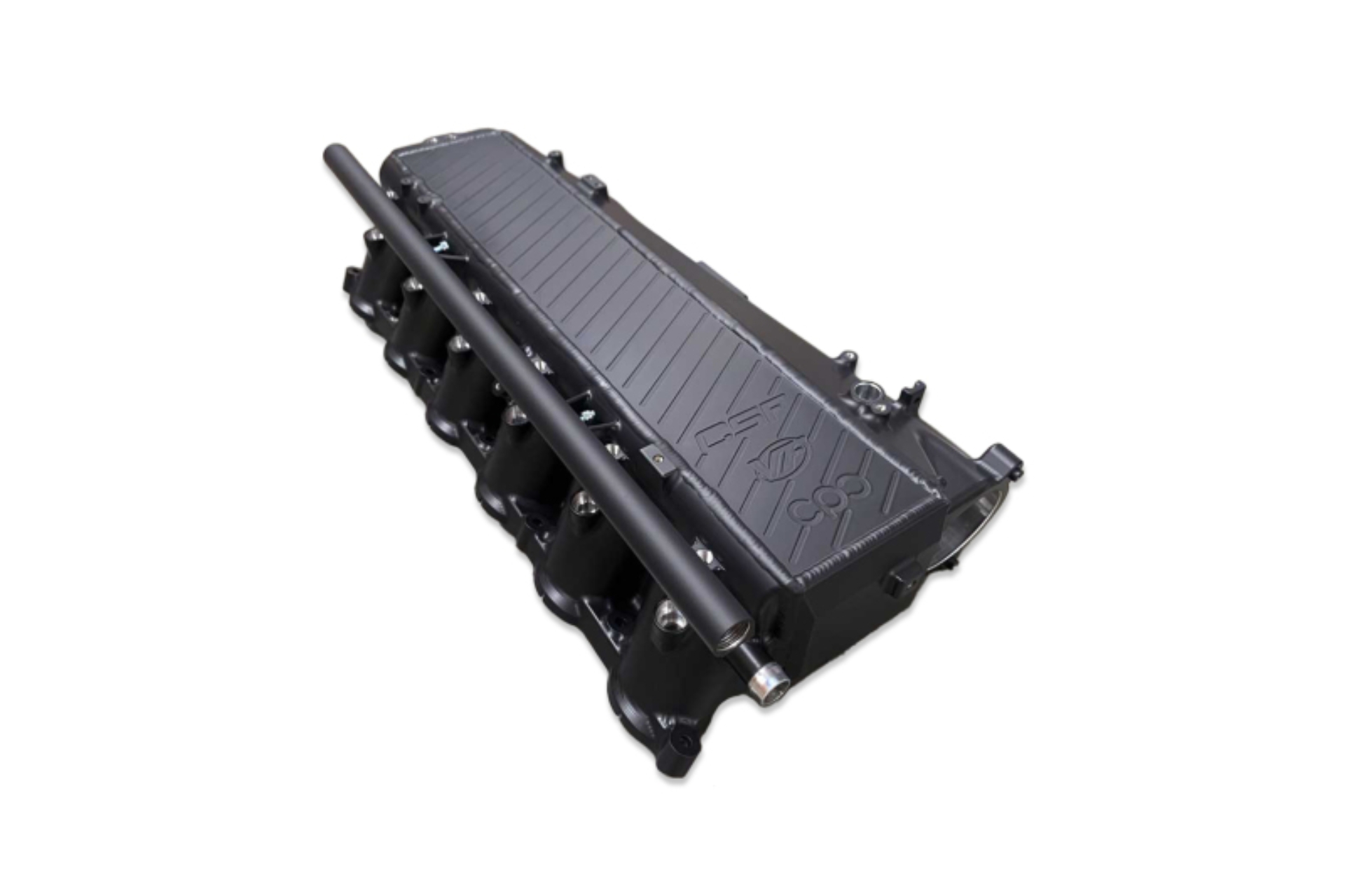

CSF Toyota A90/A91 Supra/ BMW G-Series B58 Charge-Air Cooler Manifold- Black
Individual Port Injection Bungs on Each Cylinder Runner (Comes Pre-Plugged)
A90 Supra / BMW B58 Charge-Air Cooler Manifold - Thermal Dispersion Black
Can be Used With OEM or Aftermarket Engine Covers (with OEM Connections)
Significantly Lower Pressure Drop Across the Core Compared to OEM
Designed in SolidWorks Using Computational Fluid Dynamics (CFD)
Plug-and-Play design, Requiring No Modifications to Install
Included Optional Fuel Rail for Top Feed Port Injection
Counter Balanced Design for Optimized Airflow
CSF 8200B - B58 FI Air Cooler (BLK)
CSF FI Air Cooler
Intercooler
