This cold side charge pipe is an upgrade over the factory unit and is manufactured from oversized mandrel-bent 6061 aluminum and every bend and TIG weld is completed by hand at the Injen Technology headquarters in Pomona, California. Having an internal diameter of 3.25in, this charge pipe is able to reduce restriction and quickly transfer cool air from the intercooler directly into the engine. The cold side pipe also aides in balancing airflow from the intercooler to improve performance and also helps lower engine damaging exhaust gas temperatures (EGTs).
The team at Injen Technology are masters at understanding airflow and efficiency. They've taken this expertise and applied to their charge pipes designs for the 2017-2022 Ford Super Duty Trucks equipped with the 6.7L Power Stroke Diesel. This particular unit is the Cold Side charge pipe and designed to reduce restriction and can be used alone or it pairs perfectly with the Injen Hot Side Charge pipe; P/N SES9004ICPH.
Most importantly, the restrictive OEM cold side pipe is prone to splitting without warning. When your OEM system splits, you lose boost pressure and it can leave you stranded at any moment. Remove that worry and that crack-prone OE charge pipe and give ourself some piece of mind with Injen's cold aide charge pipe.
For optimum performance, pair this charge pipe with the Injen's hot side pipe ? P/N SES9004ICPH - or purchase them as a complete unit under one part number ? SES9004ICP. As always, these charge pipes are available with three different finishes; Polished, Wrinkle Black, and finally Wrinkle Red.
Note: This product is not CARB exempt at this time and is not legal for sale in California or use on vehicles registered with the California Department of Motor Vehicles.

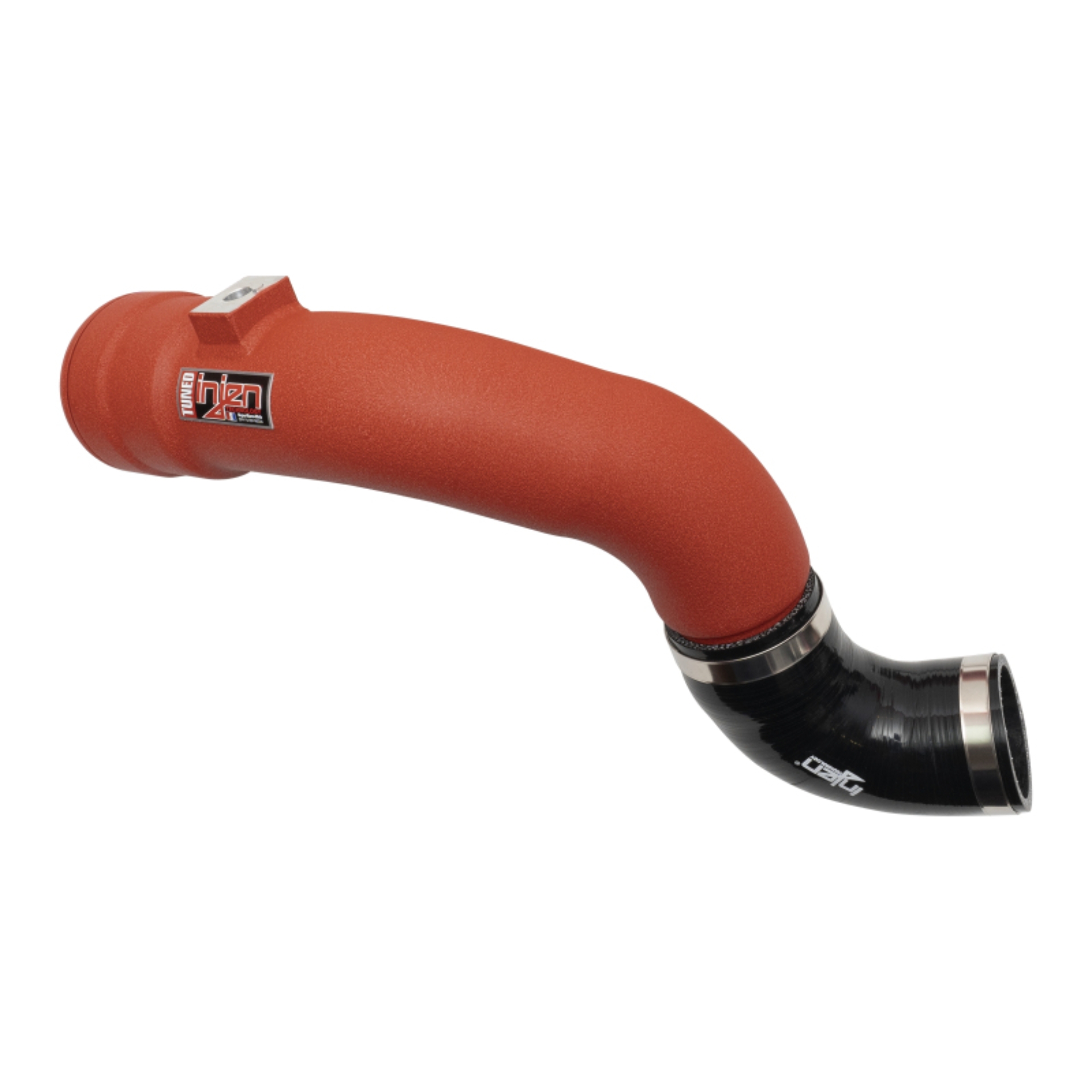

SES Intercooler Pipe - Cold Side Only, Part No. SES9004ICPCWR, 2017-2022 Ford Super Duty Truck V8-6.7L Turbo Diesel
Injen 17-22 Ford F250/F/350/F-450/F-550 V8-6.7L Turbo Diesel Wrnkl Red Intercooler Cold Side Piping
Precision CNC machined factory-style quick connections utilizing the OE spring clip
For Optimum performance, use with Injen's EVO9004 cold air intake
Includes all necessary hardware for a hassle-free installation
Pairs perfectly with Injen's SES9004ICPH Hot Side Charge Pipe
Beaded Tube Ends to Help Prevent Couplers from Coming Off
Replaces the restrictive and crack-prone OEM charge pipe
Stainless Steel Band Clamps with Inner Protective Liner
Increase Throttle Response and Decreases Turbo Lag
Automotive Grade Reinforced Silicone Couplers
Manufactured from Mandrel-Bent 6061 Aluminum
Unique Injen Logo Plate for a Refined Style
Injen Technology Limited Lifetime Warranty
Works seamlessly with the OE intercooler
Injen SES Wrinkle Red Intercooler Pipes
Cold Side Pipe Inside Diameter - 3.25in
Uses all factory mounting locations
Made in Pomona California, USA
Wrinkle Black ? SES9004ICPCWB
Available in three finishes
Wrinkle Red ? SES9004ICPCWR
Intercooler not included
Injen Intercooler Pipe
Polished - SES9004ICPC
Cold Side Piping Only
Intercooler Pipe
