Edelbrock part #28456 Victor JR. LS3 intake manifold is designed for Gen IV LS engines equipped with LS3, L92 and L76 cylinder heads. This manifold is for EFI racing applications operating between 3500-7500 rpm. The Edelbrock Victor JR. LS3 intake manifold comes with an MSD #6014 Timing Control Module. This manifold uses a standard square bore throttle body flange that is compatible with both Edelbrock EFI intake elbows with single bore 90mm throttle body or four-barrel #4150 throttle bodies. This intake has additional bosses and machining that allow for the use of fuel injectors when combined with the #3638 fuel rail kit (sold separately). The LS3, L92 and L76 all use the same cylinder head.

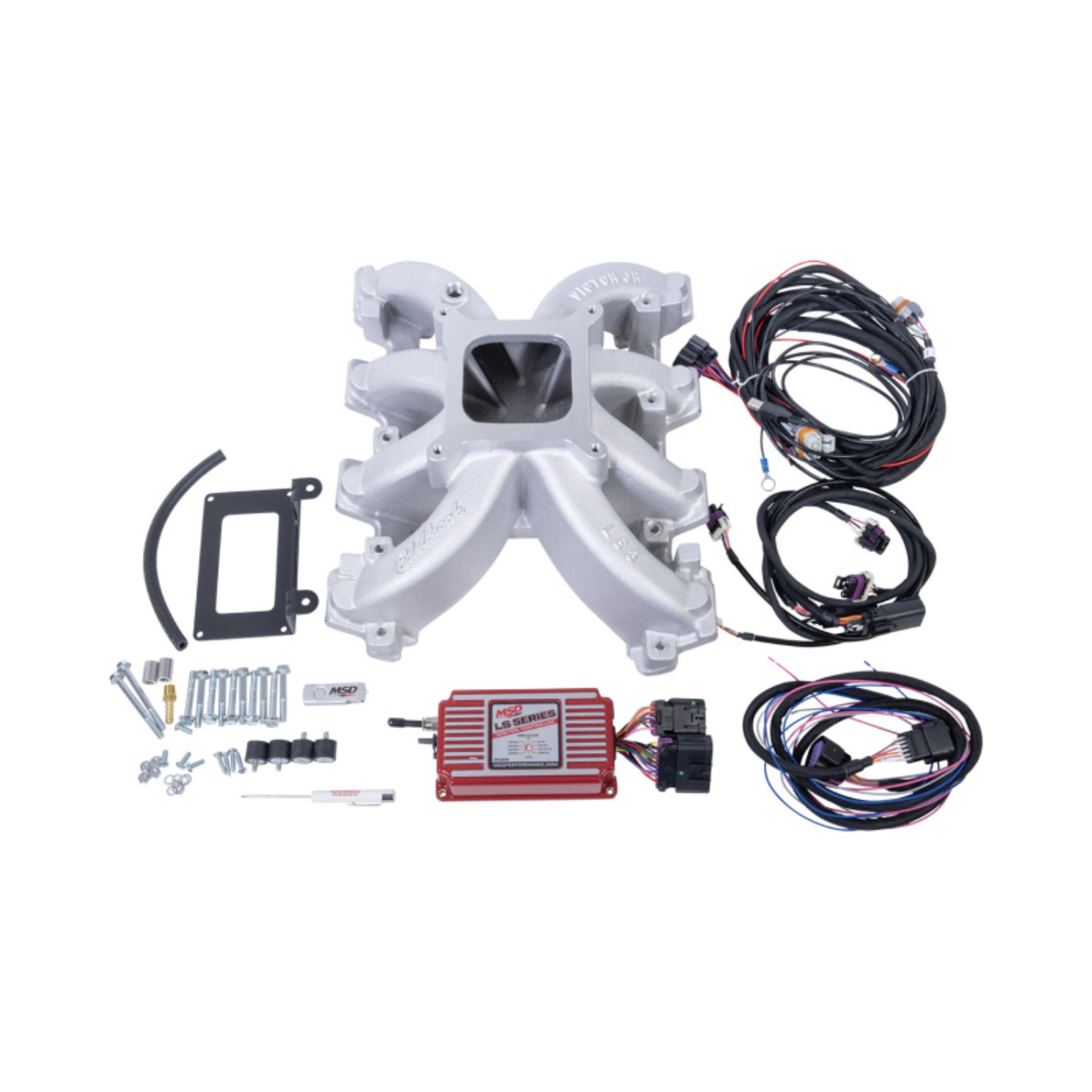

Edelbrock part #28456 intake manifold kit contains a Victor Jr LS3 PN 28547 an ignition timing control box, wiring harness, and bracket. It is designed for Gen IV LS engines equipped with LS3, L92 and L76 cylinder heads. The lightweight (13.6lbs) manifold is for carbureted high-performance applications operating between 3500-7500 rpm. Top it off with a VRS-4150 carburetor and hang on.
Chevrolet:Small-Block Gen IV L76:364 (6.0L)/376 (6.2L);Chevrolet:Small-Block Gen IV L92:364 (6.0L)/376 (6.2L);Chevrolet:Small-Block Gen IV L99:364 (6.0L)/376 (6.2L);Chevrolet:Small-Block Gen IV LS3:364 (6.0L)/376 (6.2L)
The included PN 28457 Victor Jr single plane manifold makes great power from 3500-7500 rpm, an ignition control box that allows you to choose one of six preset timing curves, or create your own with a laptop connection.
The PN 28456 manifold kit is the quickest and easiest way to make Victor Jr LS power levels with a carburetor.
28468; Chevy; Chevrolet; Edelbrock; Intake Manifold; Intake; Manifold; Single-Plane; Victor; 2 Piece; Satin
Edelbrock 99-19 GM LS3/L76/L92 w/ Timing Control Module Intake Manifold Kit
Victor Jr Small Block Chevy W/Electronic Carb LS3/L76/L92 Intake Manifold
MANIFOLD; 1999-19 GM LS3 6.0-6.2L; VICTOR JR; CARB W/IGN. CTRL
Manifold, 1999-19 GM LS3 6.0-6.2L, Victor Jr, Carb w/Ign. Ctrl
1999-19 GM LS3 6.0-6.2L GEN IV VICTOR Jr WITH TIMING CONTROL
Most Applications Will Require Hood Modifications
Victor Jr W/Electronic Carb LS3/L76/L92
Victor Jr. Series Intake Manifold
Engine Intake Manifold Kit
LS3 Victor Jr w / IGN CNTL
MANIFOLD-RACE
Manifold Kit
Intake Mnfld
{ eo : 6in.}
INT MAN KIT
