Our system does away with two potential boost leak points thanks to our single cast design. We've upgraded the factory rubber intercooler outlet hose to a multi-ply wire-reinforced silicone design with strong t-bolt clamps that resist boost leaks better than their stock counterparts. Our new billet throttle body to manifold adapter provides a convenient boost and vacuum reference point which can be used for a gauge, or anything else in that suits your build. Lastly the system comes complete with new throttle body and intake manifold gaskets, which are common problematic leak point many never know to address.
This comprehensive system is much larger than stock thanks to the sweeping design of the cast inlet pipe, and oversized silicone hose. However, despite being dramatically larger than stock, the complete system is a negligible 2.4 lbs over stock! Simply put, the APR system is a complete upgrade from start to finish, flows better than stock and our competition, and is the only throttle body inlet system you'll ever need!
The APR Throttle Body Inlet System is a comprehensive upgrade to the factory charge pipe system from the intercooler outlet to the throttle body. We replace all components and provide a new, larger, free flowing system that flows roughly 34% more than stock! This was achieved by increasing the cross sectional area of the system and by reducing the tight radius bend directly in front of the throttle body.
Please Note: 2019+ model year vehicles require the MS100198-A adapter unless the vehicle already has our full intake system with CI100038-G diverter valve adapter. On some European models, the MAP sensor in the manifold has the bolt hole opposite of the connector, rather than off to the side of the sensor, and as such, is not compatible with this part.
Multi-ply wire-reinforced fluorosilicone-lined intercooler outlet hose with EZ-flow stepped lips
Oversized setup starting at the intercooler outlet hose at approximately 72mm vs 64mm
New intake manifold gasket, throttle body gaskets, o-rings, and one time use bolts
Full length oversized cast aluminum throttle body pipe with sweeping transitions
Billet aluminum throttle body adapter with boost and vacuum reference point
Compatible with 2019+ vehicles with optional adapter

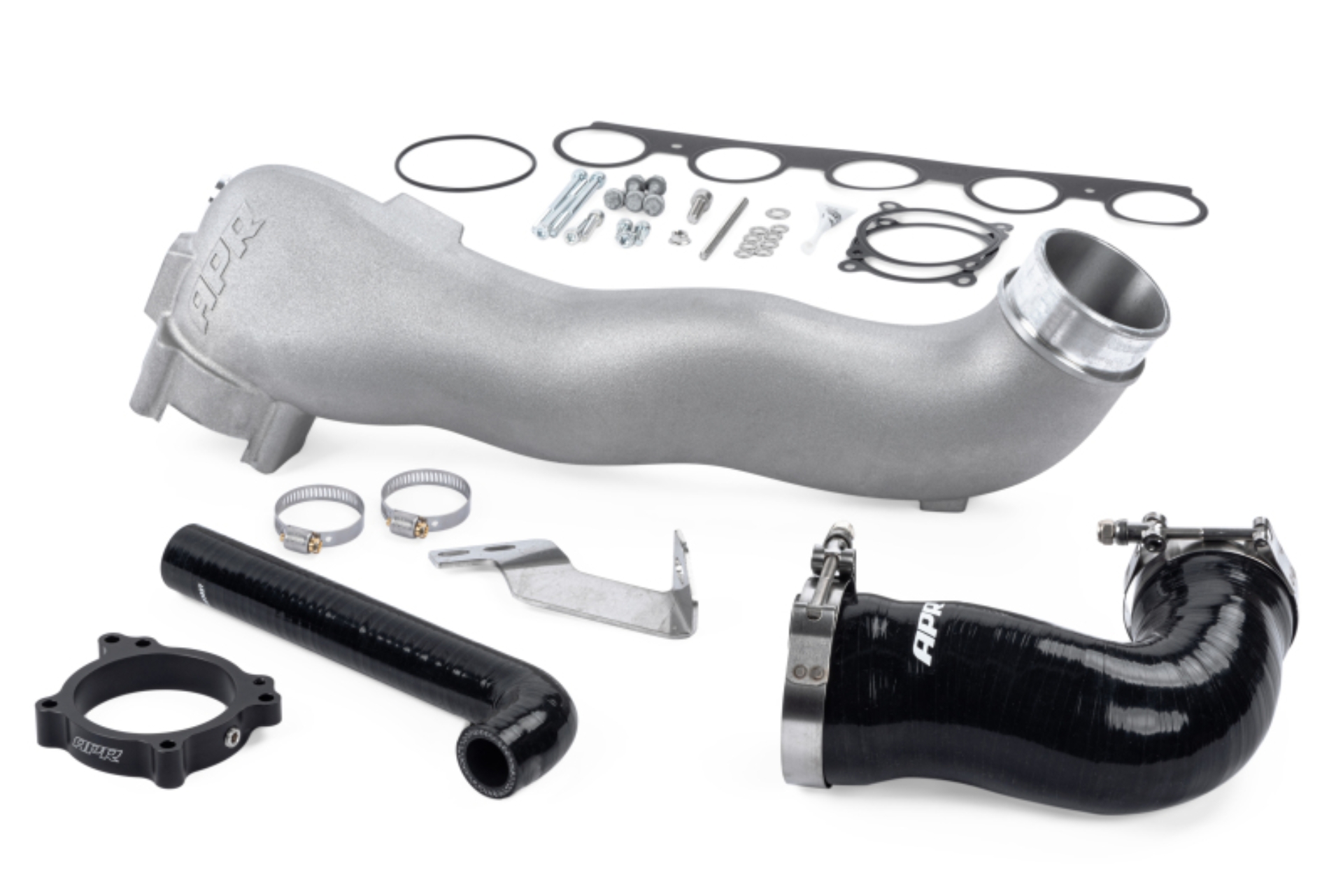

APR 17-20 Audi RS3 2.5T Throttle Body Inlet System
APR Throttle Body Inlet System - 2.5T EA855 EVO
Full system from intercooler to throttle body
Fits Audi RS3 17-20, TT RS Quattro 18-22
Full instructions and APR support included
CNC-bent and laser cut mounting bracket
Silicone diverter valve reroute hose
Eliminates 2 boost leak points
25T GEN 2 THROTTLE BODY PIPE
High strength t-bolt clamps
Flows 34% more than stock
