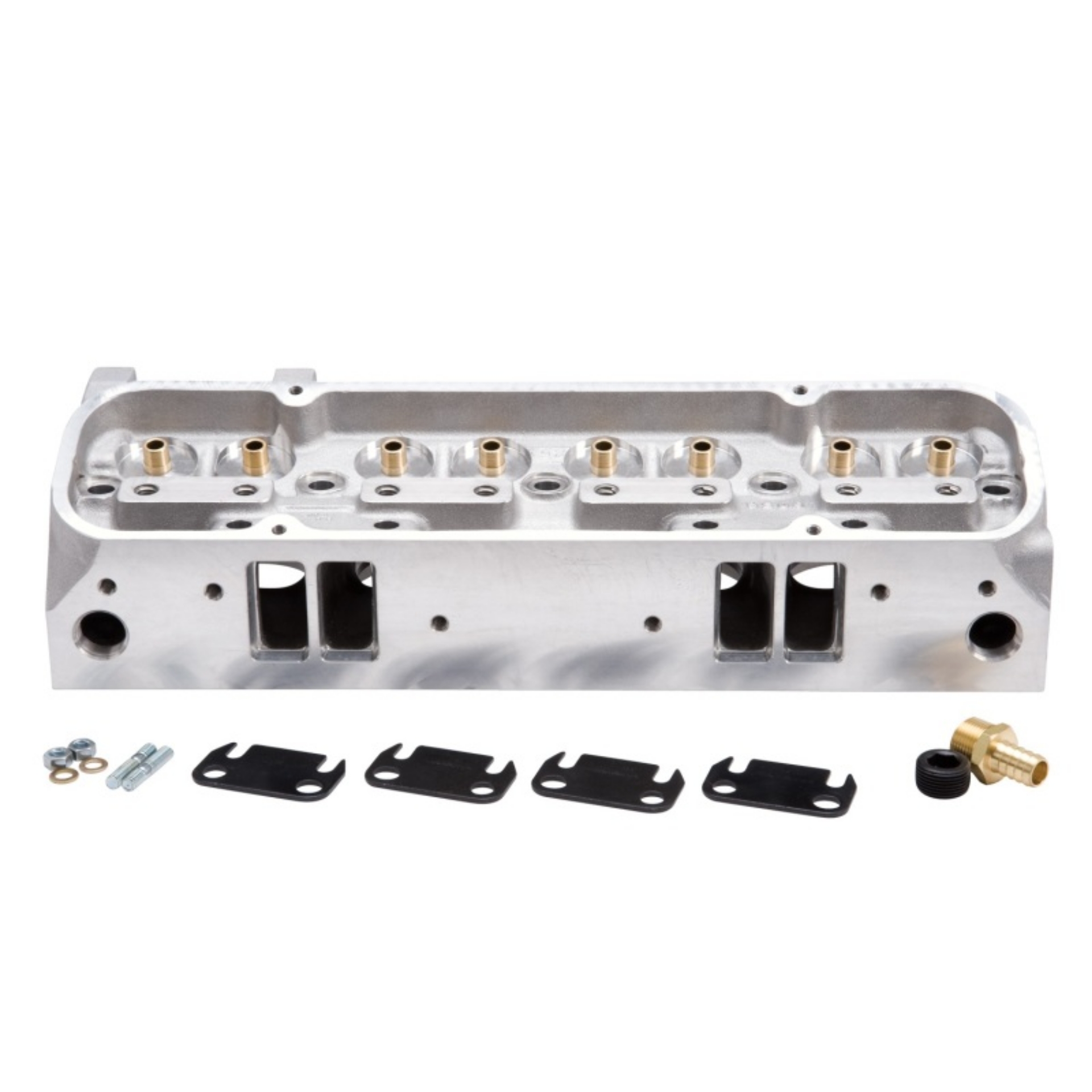

Edelbrock Single Perf Pontiac 72cc Head Bare - ( Edelbrock 60589 )

Previous productEdelbrock Single Perf 5 7 C...

Next productEdelbrock Single Perf Ponti...

Availability: Special Order*

SKU: 60589

Manufacturer: Edelbrock

Be the first to review this product

$914.50

Qty:

Supported payment types:

OR - Express Checkout

Cylinder Head Specifications:; Combustion chamber volume: 87cc; Intake runner volume: 215cc; Exhaust runner volume: 175cc; Intake valve diameter: 2.11"; Exhaust valve diameter: 1.66"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 5/8"; Valve spring diameter: 1.46"; Valve spring maximum lift: .575"; Rocker stud: 7/16"; Guideplate: Hardended steel; Pushrod diameter: 5/16"; Valve angle: 14°; Exhaust port location: Stock Ram Air IV; Spark plug fitment: 14mm x 3/4 reach, gasket seat. These cylinder heads are designed for outstanding performance gains in 1962-79 389-455 c.i.d. Pontiac engines. They are patterned after the 1969-70 Ram Air IV Pontiac cylinder head. Performer heads #60579/#60575 are 50-state emissions legal for 1965-79 vehicles. They feature 87cc combustion chambers designed to maximize performance while using less expensive, low-octane fuel with a streetable 9.5:1 compression ratio. Our Performer RPM heads with the 72cc combustion chamber are for higher compression engines. Performer RPM #60509 is semi-machined and must be finished by a professional cylinder head porter. They include valve guides and seats installed with no intake pushrod holes. Performer RPM #60587 is not port matched or bowl blended and is NHRA accepted for Stock & Super Stock. INSTALLATION NOTE: These heads require Ram Air IV (round port) style exhaust manifolds or headers and Edelbrock head bolt kit #8549. Deck thickness: 5/8", rocker stud diameter: 7/16", pushrod diameter: 5/16" (width of slot in guide plate).

Edelbrock Chrome Steel Fuel Line with Blue Anodized Aluminum Filter for Edelbrock Performer and Thunder Series AVS Carburetors.

Pontiac:-:326 (5.3L)/350 (5.7L)/389 (6.4L)/400 (6.6L)/421 (6.9L)/428 (7.0L)/455 (7.4)

Edelbrock; Pontiac Head; 72cc Bare; V8; Cylinder Heads; 60589; 389; 400; 455

Edelbrock, Pontiac Head, 72cc Bare, V8, Cylinder Heads, 60589, 389, 400, 455

Edelbrock Single Perf. Pontiac 72cc Head Bare

Edelbrock Single Perf Pontiac 72cc Head Bare

Single Perf. Pontiac 72cc Head Bare

RPM Pontiac Cylinder Head 72cc Bare

Edelbrock Cylinder Heads

Engine Cylinder Head

CYLINDER HEADS

CYLINDER HEAD

{ eo : 3in.}

{"eo":"3"}

Cyl. Head

Overview
Reviews
Contact Us

Edelbrock Chrome Steel Fuel Line with Blue Anodized Aluminum Filter for Edelbrock Performer and Thunder Series AVS Carburetors.

Pontiac:-:326 (5.3L)/350 (5.7L)/389 (6.4L)/400 (6.6L)/421 (6.9L)/428 (7.0L)/455 (7.4)

Edelbrock; Pontiac Head; 72cc Bare; V8; Cylinder Heads; 60589; 389; 400; 455

Edelbrock, Pontiac Head, 72cc Bare, V8, Cylinder Heads, 60589, 389, 400, 455

Edelbrock Single Perf. Pontiac 72cc Head Bare

Edelbrock Single Perf Pontiac 72cc Head Bare

Single Perf. Pontiac 72cc Head Bare

RPM Pontiac Cylinder Head 72cc Bare

Edelbrock Cylinder Heads

Engine Cylinder Head

CYLINDER HEADS

CYLINDER HEAD

{ eo : 3in.}

{"eo":"3"}

Cyl. Head

Your name *

Your email *

Subject: *

Enquiry *

Vehicle Fitment

Pontiac

Firebird

1979 Formula -

1979 Trans Am -

1978 Formula -

1978 Trans Am -

1977 Base -

1977 Formula -

1977 Trans Am -

1976 Esprit -

1976 Trans Am -

1976 Base -

1976 Formula -

1975 Formula -

1975 Base -

1975 Trans Am -

1974 Base -

1974 Esprit -

1974 Formula -

1974 Trans Am -

1973 Base -

1973 Esprit -

1973 Formula -

1973 Trans Am -

1972 Base -

1972 Esprit -

1972 Formula -

1972 Trans Am -

1971 Base -

1971 Esprit -

1971 Formula -

1971 Trans Am -

1970 Base -

1970 Esprit -

1970 Formula -

1970 Trans Am -

1969 Trans Am -

1969 400 -

1969 Base -

1968 400 -

1968 Base -

1967 400 -

1967 HO -

1967 Base

Bonneville

1978 Base -

1978 Safari -

1978 Brougham -

1977 Brougham -

1977 Base -

1976 Base -

1976 Brougham -

1975 Base -

1974 Base -

1973 Base -

1972 Base -

1971 Base -

1970 Safari -

1970 Base -

1969 Safari -

1969 Base -

1968 Safari -

1968 Base -

1967 Safari -

1967 Base -

1966 Base -

1966 Safari -

1965 Safari -

1965 Base

Catalina

1978 Base -

1978 Safari -

1977 Base -

1977 Safari -

1976 Base -

1976 Safari -

1975 Base -

1975 Safari -

1974 Base -

1974 Safari -

1973 Base -

1973 Safari -

1972 Base -

1972 Brougham -

1972 Safari -

1971 Base -

1971 Brougham -

1971 Safari -

1970 Base -

1970 Ventura -

1970 Safari -

1969 Base -

1969 Ventura -

1969 Safari -

1968 Base -

1968 Ventura -

1968 Safari -

1967 Base -

1967 Safari -

1967 Ventura -

1967 2+2 -

1966 Safari -

1966 Ventura -

1966 2+2 -

1966 Base -

1965 Base -

1965 2+2 -

1965 Ventura -

1965 Safari

Grand Safari

1978 Base -

1977 Base -

1976 Base -

1975 Base -

1974 Base -

1973 Base -

1972 Base -

1971 Base

Grand LeMans

1977 Base -

1977 Safari -

1976 Base -

1975 Base -

1975 Safari

Grand Prix

1977 LJ -

1977 SJ -

1977 Base -

1976 Base -

1976 SJ -

1975 LJ -

1975 SJ -

1974 Base -

1973 Base -

1972 Base -

1971 Base -

1970 Base -

1969 Base -

1968 Base -

1967 Base -

1966 Base -

1965 Base

LeMans

1977 Base -

1977 Safari -

1977 Sport -

1976 Base -

1976 Sport -

1975 Base -

1975 Safari -

1975 Sport -

1974 Safari Luxury -

1974 Luxury -

1974 Base -

1974 Safari -

1974 Sport -

1973 Base -

1973 Safari -

1973 Sport -

1973 Luxury -

1972 Base -

1972 Sport -

1972 Luxury -

1971 Base -

1971 Sport -

1971 T37 -

1970 Base -

1970 Sport -

1970 Safari -

1969 Base -

1969 Safari -

1968 Base

Grand Am

1975 Base -

1974 Base -

1973 Base

Grandville

1975 Brougham -

1974 Base -

1973 Base -

1972 Base -

1971 Base

GTO

1973 Base -

1972 Base -

1971 Base -

1971 The Judge -

1970 Base -

1970 The Judge -

1969 Base -

1968 Base -

1967 Base -

1966 Base -

1965 Base

Executive

1970 Safari -

1970 Base -

1969 Base -

1969 Safari -

1968 Base -

1968 Safari -

1967 Base -

1967 Safari

Tempest

1970 Base -

1970 GT -

1969 Base -

1969 Custom -

1969 Safari -

1968 Base -

1968 Custom -

1968 Safari

Star Chief

1966 Base -

1966 Executive -

1965 Base

Buick

LeSabre

1975 Custom

Oldsmobile

98

1975 Luxury -

1975 Regency

Custom Cruiser

1975 Base -

1975 Panel

Delta 88

1975 Base -

1975 Royale

*we take fitment seriously and have invested heavily into matching products to your vehicle, but it is up to the end user to confirm products are suitable for their vehicle, legal for them to use for the purposes they intend, and verify fitment upon installation. Many opened products may not be returned, so if fitment is in question, please contact us before ordering. We are not resonsible for any costs incurring from a product not being suitable to an end users application.
