Cylinder Head Specifications: Combustion chamber volume: 110cc; Intake runner volume: 290cc; Exhaust runner volume: 110cc; Intake valve diameter: 2.19"; Exhaust valve diameter: 1.88"; Valve stem diameter: 11/32"; Valve guides: Manganese bronze; Deck thickness: 9/16"; Valve spring diameter: 1.55"; Valve spring maximum lift: .700"; Rocker stud: 7/16"; Guideplate: Hardened steel; Pushrod diameter: 3/8"; Valve angle: 26°; Exhaust port location: Stock; Spark plug fitment: 14mm x 3/4 reach, gasket seat. INSTALLATION NOTE: Match with Edelbrock head gasket sets. Bare heads will have valve guides and seats installed, but will require final sizing and a valve job to match the valves you will be using. Recommended spark plugs are Champion RC12YC or equivalent 14mm x 3/4" reach with flat gasket seat.

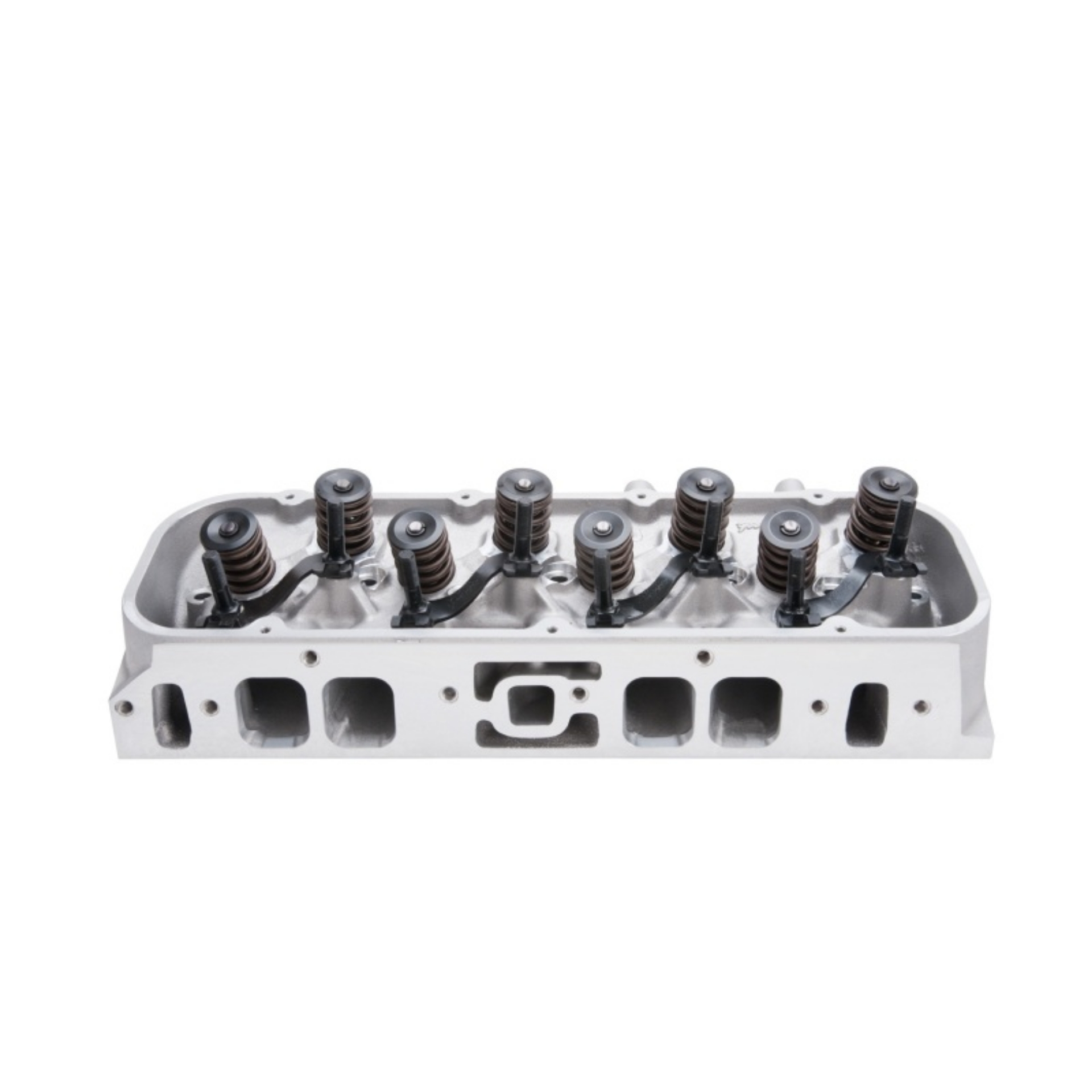

Edelbrock Cylinder Head BBC Performer RPM Oval Port for Hydraulic Roller Cam Natural Finish (Ea)
Cylinder Head; BBC; Performer RPM; Oval Port; For Hydraulic Roller Cam; Natural Finish (Ea)
Edelbrock Cylinder Head; BBC; Performer RPM; Oval Port; For Hydraulic Roller Cam; Natural
Edelbrock; BBC; Big Block Chevy;454; 396; 402; V8; Cylinder Heads; 60455; Flat Tappet
Edelbrock, BBC, Big Block Chevy,454, 396, 402, V8, Cylinder Heads, 60455, Flat Tappet
Chevrolet:Big-Block Mark IV:396 (6.6L)/402 (6.6L)/427 (7.0L)/454 (7.4L)/502 (8.2L)
Cylinder Head; BBC; Performer RPM; Oval Port; For Hydraulic Roller Cam; Natural
Edelbrock Carbureted Bypass Style Fuel Pressure Regulator, 180 GPH.
RPM Big-Block Chevy Oval Port Cylinder Head Hydraulic Roller Cam
