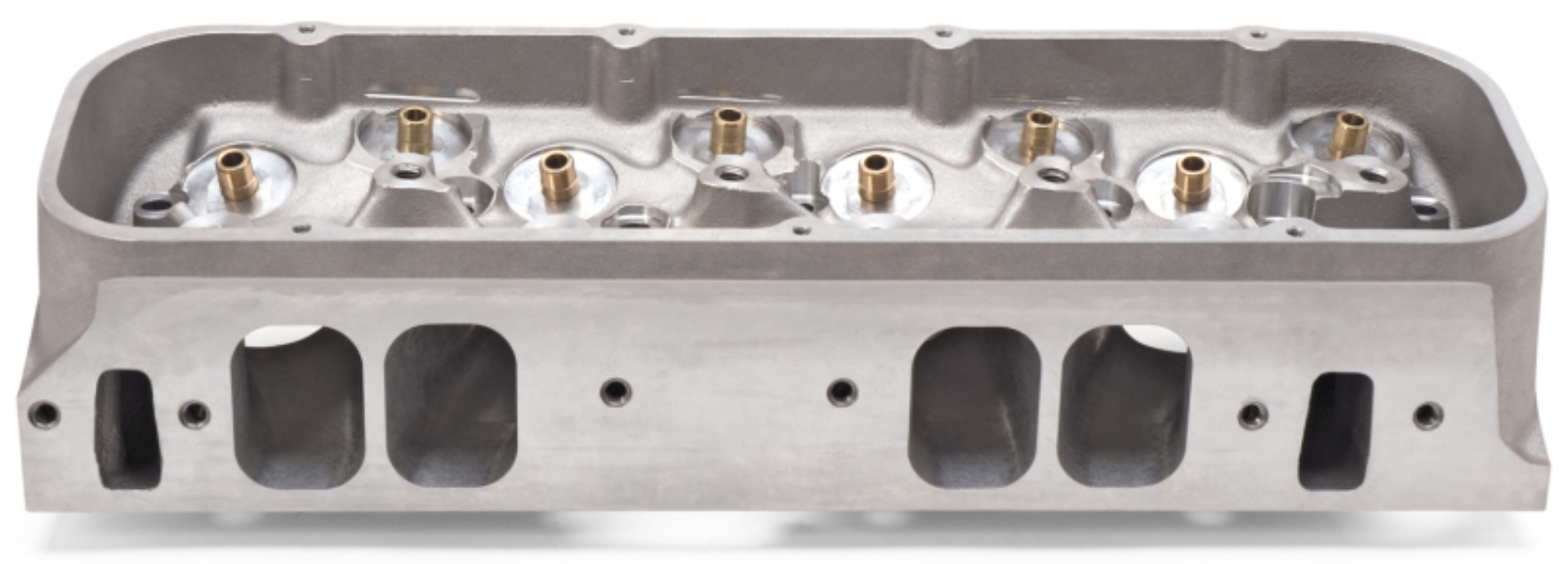

Victor Musi Big-Block Chevy CNC Cylinder Head Bare

Edelbrock and Pat Musi Performance have combined efforts to produce the finest standard intake port location big-block Chevy head available. The Edelbrock #61419 Victor 24deg CNC Bare cylinder head features an extra thick deck and extra material in the spring pockets for a heavy-duty casting that can be used with high-lift cam and heavy spring combinations. Edelbrock equips the complete cylinder head with Manley dual-spring valve springs and titanium retainers good for up to .880" lift. The port designs are large oval (367 lh / 377 rh) that produce impressive flow - out-of-the-box. The exhaust port exits are raised .750" to greatly improve exhaust flow and power. Off the shelf large oval-port intakes are available through Edelbrock.

Edelbrock part #61419 Victor 24 Degree CNC rectangular port bare cylinder heads are designed for use with large cubic inch and/or high air demand Big Block Chevy engines with a minimum 4.47" diameter bore.

Edelbrock; BBC; Head; Tempered A356; V8; Cylinder Heads; 614369; Big Block Chevy

CYL HEAD; BBC CNC-PORTED VICTOR 24 DEG RECT PORT 119cc CHAMBER BARE

Edelbrock Race Cyl Head Musi CNC BBC Victor 24Deg Bare

Victor Musi Big-Block Chevy CNC Cylinder Head Bare

Edelbrock/Musi Victor CNC Cylinder Head

118cc Chamber; 367cc-377cc Intake Port

Edelbrock BBC Cylinder Head

Chevrolet:Big-Block Race

Engine Cylinder Head

CYL HEADS-RACE

{ eo : 2in.}

Cyl. Head
