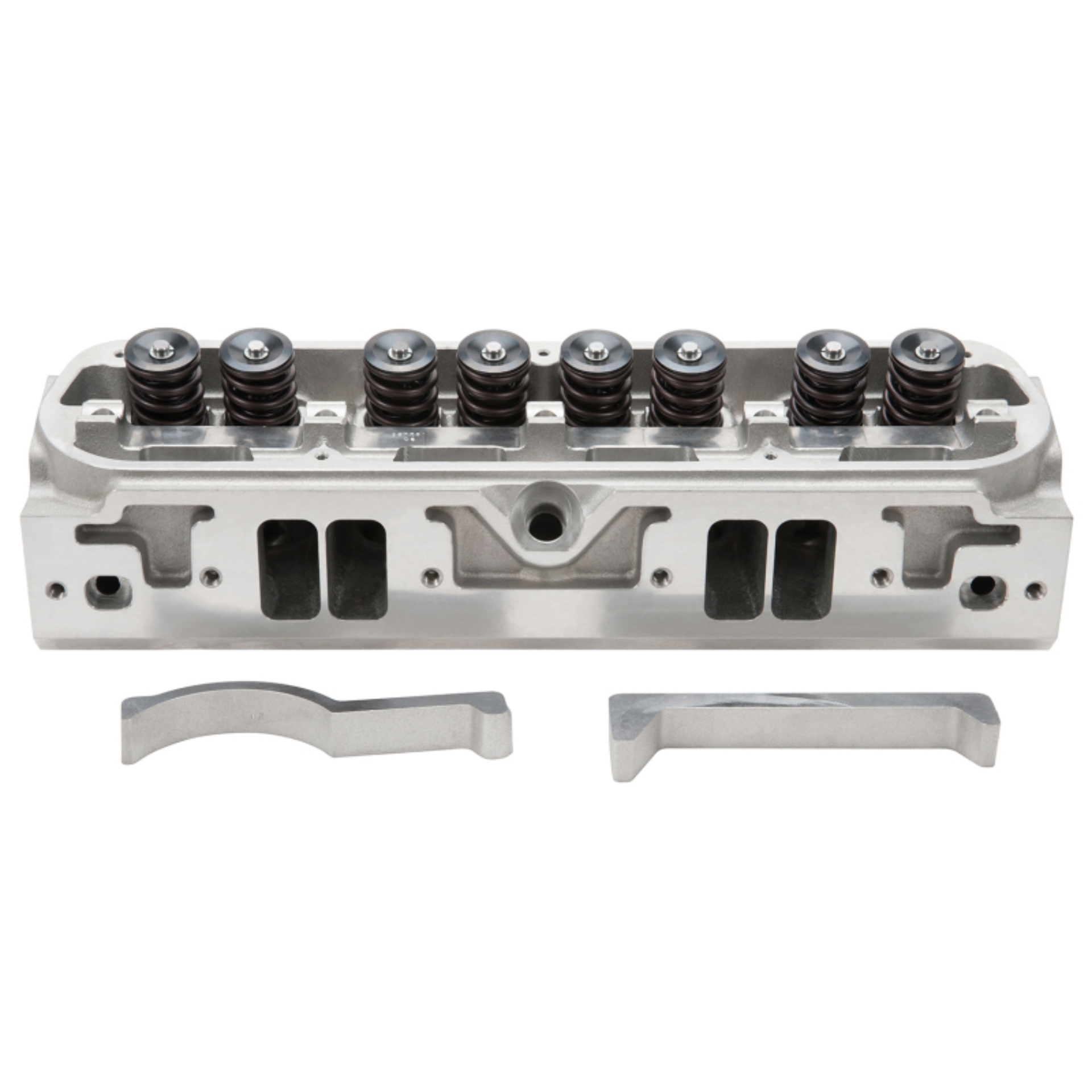

These Edelbrock #61729 Victor Series cylinder head is for use on 1967-1991, 318-360 c.i.d. Chrysler LA engines. They feature fully CNC ported 58cc combustion chambers and have an intake port volume of 225cc. This cylinder head is an in-line valve design incorporating a 16deg valve angle (stock is 18deg) for improved air flow and increased power levels over heavily ported stock versions. They also feature the Chrysler W5 bolt pattern and have raised exhaust ports. The intake port has also been raised approximately 3/4" and the flange has also been extended to accommodate a stock (race) intake manifold such as our Super Victor #2815. Finally, a 5.56" overall length valve (+0.600" from stock) and raised rocker cover permit larger port cross-sections than in the stock head. Four versions are available; bare, bare with valves, complete (for hydraulic/flat tappet cams and solid roller cams) and Pro Port Raw. End-seal spacers are provided.
These Edelbrock #61729 Victor Series cylinder head is for use on 1967-1991, 318-360 c.i.d. Chrysler LA engines. They feature fully CNC ported 58cc combustion chambers and have an intake port volume of 225cc. This cylinder head is an in-line valve design incorporating a 16deg valve angle (stock is 18deg) for improved air flow and increased power levels over heavily ported stock versions. They also feature the Chrysler W5 bolt pattern and have raised exhaust ports. The intake port has also been raised approximately 3/4" and the flange has also been extended to accommodate a stock (race) intake manifold such as our Super Victor #2815. Finally, a 5.56" overall length valve (+0.600" from stock) and raised rocker cover permit larger port cross-sections than in the stock head. Four versions are available
Edelbrock part #61729 Victor Series cylinder heads are for use on 1967-1991, 318-360 c.i.d. Chrysler LA engines. They feature fully CNC ported 58cc combustion chambers and have an intake port volume of 225cc.
bare, bare with valves, complete (for hydraulic/flat tappet cams and solid roller cams) and Pro Port Raw. End-seal spacers are provided.
CYL HEAD SB CHRYSLER E-CNC VICTOR IN-LINE 16 DEG COMPLETE W/SOLID ROLLER SPRING SINGLE
Edelbrock Cylinder Head SB Chrysler Victor In-Line 16 Complete w/ Solid Roller Springs
Edelbrock; SBC; Head; Small Block Chevy; V8; Cylinder Heads; 61749; 327; 350; 400
Victor Small-Block Chrysler Cylinder Head W/ Solid Roller Camshaft
Victor Small-Block Chrysler Cylinder Head W/Solid Roller Camshaft
Chrysler:Small-Block:273 (4.5L)/318 (5.2L)/340 (5.6L)/360 (5.9L)
Works With Existing Edelbrock NASCAR SB2 Manifold
Edelbrock SB Chrysler Cylinder Head
Victor Series Cylinder Head
Engine Cylinder Head
CYL HEADS-RACE
{ eo : 2in.}
Cyl. Head
