Intended for installation on 1965-1976 Small-Block Oldsmobile 350-403 c.i. engines equipped with a hydraulic roller camshaft, these 356-T6 aluminum casting cylinder heads (#61035) are a modern refinement to our #6051 heads, except they can accommodate a factory-style mechanical fuel pump. A smaller 68 cc combustion chamber achieves a more appropriate small block compression ratio compared to our PN 61025/61029’s larger 77 cc chamber, which yields a lower compression ratio than most engine builders desire on a small block engine. These heads require a 3.9375” minimum bore and feature a modern chamber design with optimized spark plug positioning. Maximum airflow is achieved through the factory 6-degree valve angle using high-flow 200 cc intake and 130 cc exhaust port volumes, along with 2.072” intake and 1.680” exhaust valve sizes in their O.E. positions. A finished deck thickness with added material above the intake port and pre-counterbored head-bolt holes for .5” diameter studs provide extra clamping force in key areas. A stud-and-guide plate valvetrain system (as opposed to the O.E. pedestal type) provides a solid foundation for the beefier diameter pushrods, and Helicoil inserts in the exhaust and rocker stud holes keep bolts secured. However, there are no provisions for a heat crossover. Although these heads will fit on Big-Block Oldsmobile engines, the 68-cc combustion chamber size is not ideal for a big-block application as it will raise compression. See PN61025 and PN61029 for big-block specific cylinder heads.
For 350-403 c.i. Olds engines with a hydraulic roller cam, these heads are made of 356-T6 aluminum and feature 68 cc chambers, high-flow 200 cc intake and 130 cc exhaust port volumes, and 2.072” intake and 1.680” exhaust valve sizes.
356-T6 Aluminum Casting, 68cc Combustion Chamber Volume, 200cc Intake Port Volume, 130cc Exhaust Port Volume, 2.072” intake and 1.680” exhaust valve sizes, 3/8” dia. Pushrod diameter, 5/8” Finished Deck Thickness
Edelbrock SB Oldsmobile Performer RPM Cylinder Heads for Hydraulic Roller Cam
Retains compatibility with OEM and popular aftermarket manifolds and Headers
Performer RPM Oldsmobile Small-Block for Hydraulic Roller Camshaft

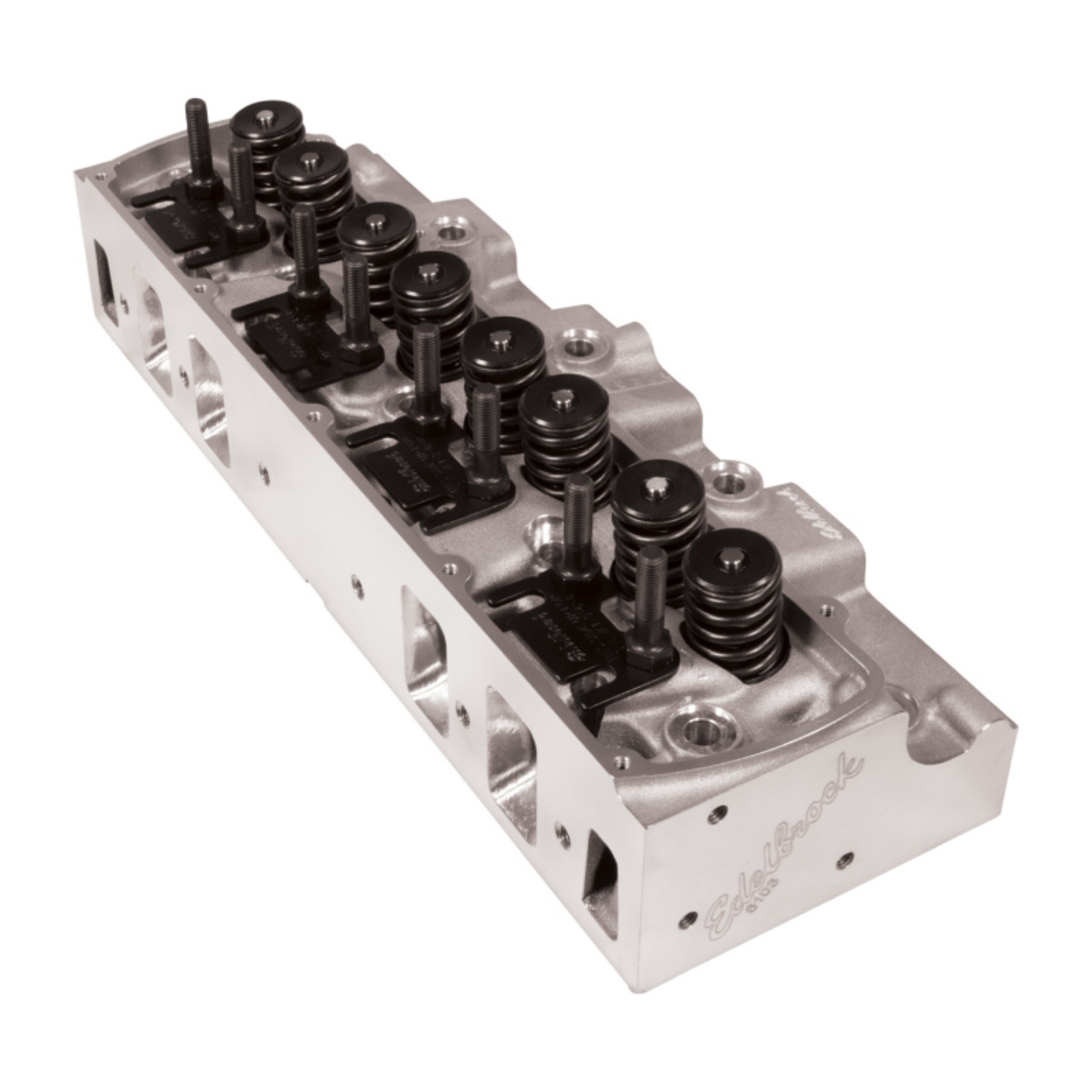

CYL HEAD SB OLDSMOBILE PERF RPM FOR HYD ROLLER CAM COMPLETE
Maximum compatibility with OEM and aftermarket components
Allows the use of an "OEM" style mechanical fuel pump
Mechanical Fuel Pump Clearance Cutout
Factory 6-degree valve angle
Engine Cylinder Head
OEM Port Locations
Cyl. Head
