The Cometic MLS gasket is comprised of three to five layers of stainless steel. Cometic uses stainless steel for increased strength, its ability to rebound and resist corrosion. The outer layers of the gasket are embossed and coated on both sides with a Viton rubber material designed to meet the demands of a variety of harsh sealing environments, load conditions and surface finishes. The Viton coating is heat resistant to 250°C or 482°F.
The embossed outer layers of the gaskets meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes
The center or shim layer is an uncoated stainless steel layer which can be varied to accommodate multiple thickness requirements
MLS Gaskets are comprised of multiple embossed layers of both AMP (Advanced Multi-Polymer Coating) and uncoated stainless steel
Nissan VQ30DE/VQ35DE Version 1 .045in. MLS Cylinder Head Gasket; 100mm Bore; LHS; NOT VQ30DE-K
Nissan VQ35DE Version 1, VQ40DE .045" MLS Cylinder Head Gasket, 100mm Bore, LHS

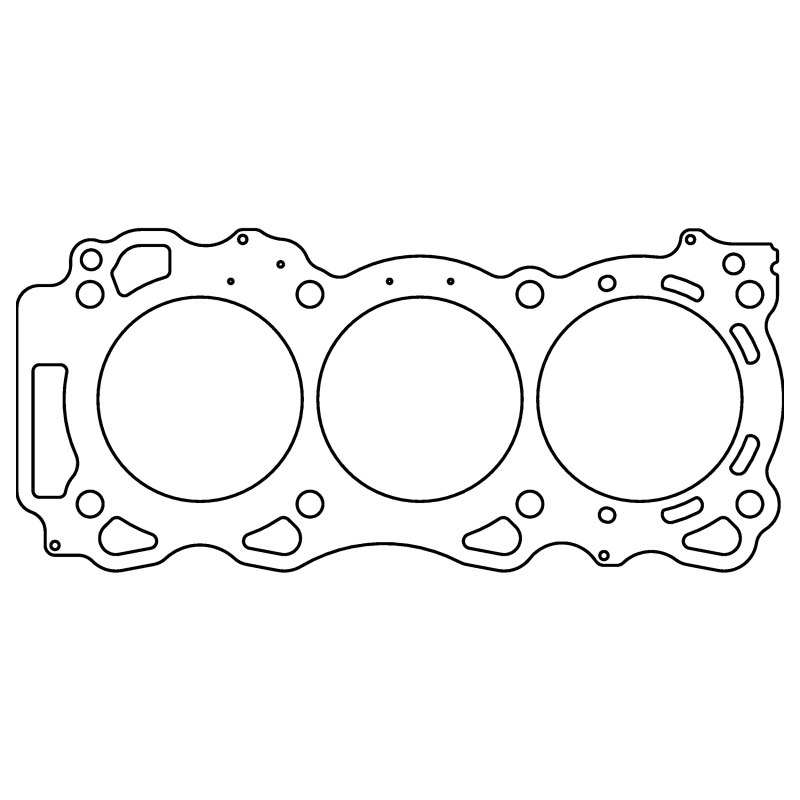

Cometic Nissan VQ30/VQ35 V6 100mm LH .045 inch MLS Head Gasket
Requires less clamp load creating less bore distortion
Nissan VQ35DE Version 1, VQ40DE Cylinder Head Gasket
Nissan VQ30DE/VQ35DE Version 1 Cylinder Head Gasket
Conforms load distribution across the sealing area
Niss VQ30DE/VQ35DE V.1 Cylinder Head L
Embossed Outer Layers Coated w/Viton
Niss VQ35DE V.1, VQ40DE Head L
Engine Cylinder Head Gasket
Cylinder Head Gasket
