The Cometic MLS gasket is comprised of three to five layers of stainless steel. Cometic uses stainless steel for increased strength, its ability to rebound and resist corrosion. The outer layers of the gasket are embossed and coated on both sides with a Viton rubber material designed to meet the demands of a variety of harsh sealing environments, load conditions and surface finishes. The Viton coating is heat resistant to 250°C or 482°F.
The embossed outer layers of the gaskets meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes
The center or shim layer is an uncoated stainless steel layer which can be varied to accommodate multiple thickness requirements
MLS Gaskets are comprised of multiple embossed layers of both AMP (Advanced Multi-Polymer Coating) and uncoated stainless steel

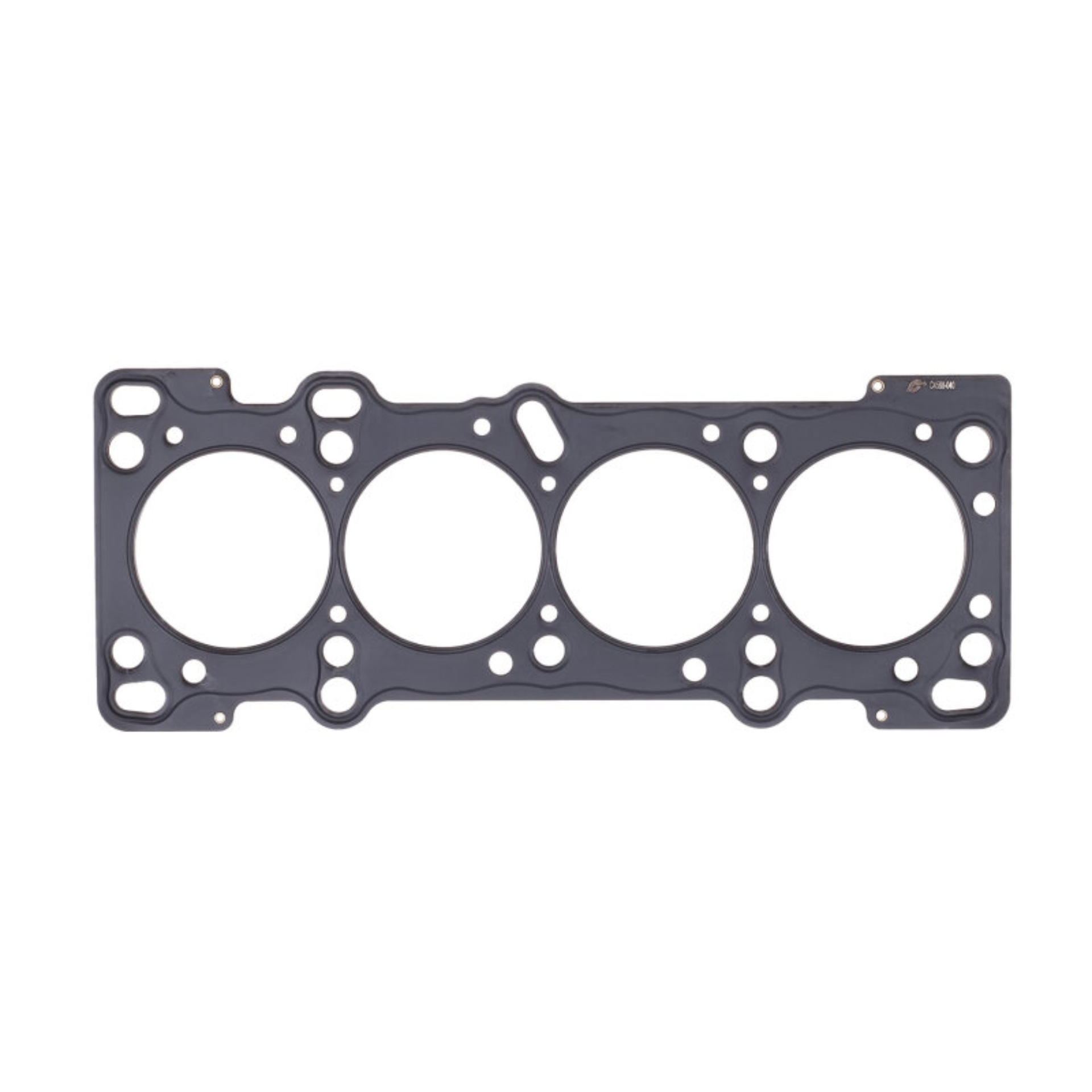

Cometic Mazda Miata inBPin Motor 1.8L DOHC 84mm .030in MLS Head Gasket
Mazda BP-4W/BP-ZE .030in. MLS Cylinder Head Gasket; 84mm Bore
Mazda BP-4W/BP-ZE .030" MLS Cylinder Head Gasket, 84mm Bore
Requires less clamp load creating less bore distortion
Conforms load distribution across the sealing area
Mazda BP-4W/BP-ZE Cylinder Head Gasket
Mazd BP-4W/BP-ZE Cylinder Head Gasket
Embossed Outer Layers Coated w/Viton
Engine Cylinder Head Gasket
Cylinder Head Gasket
