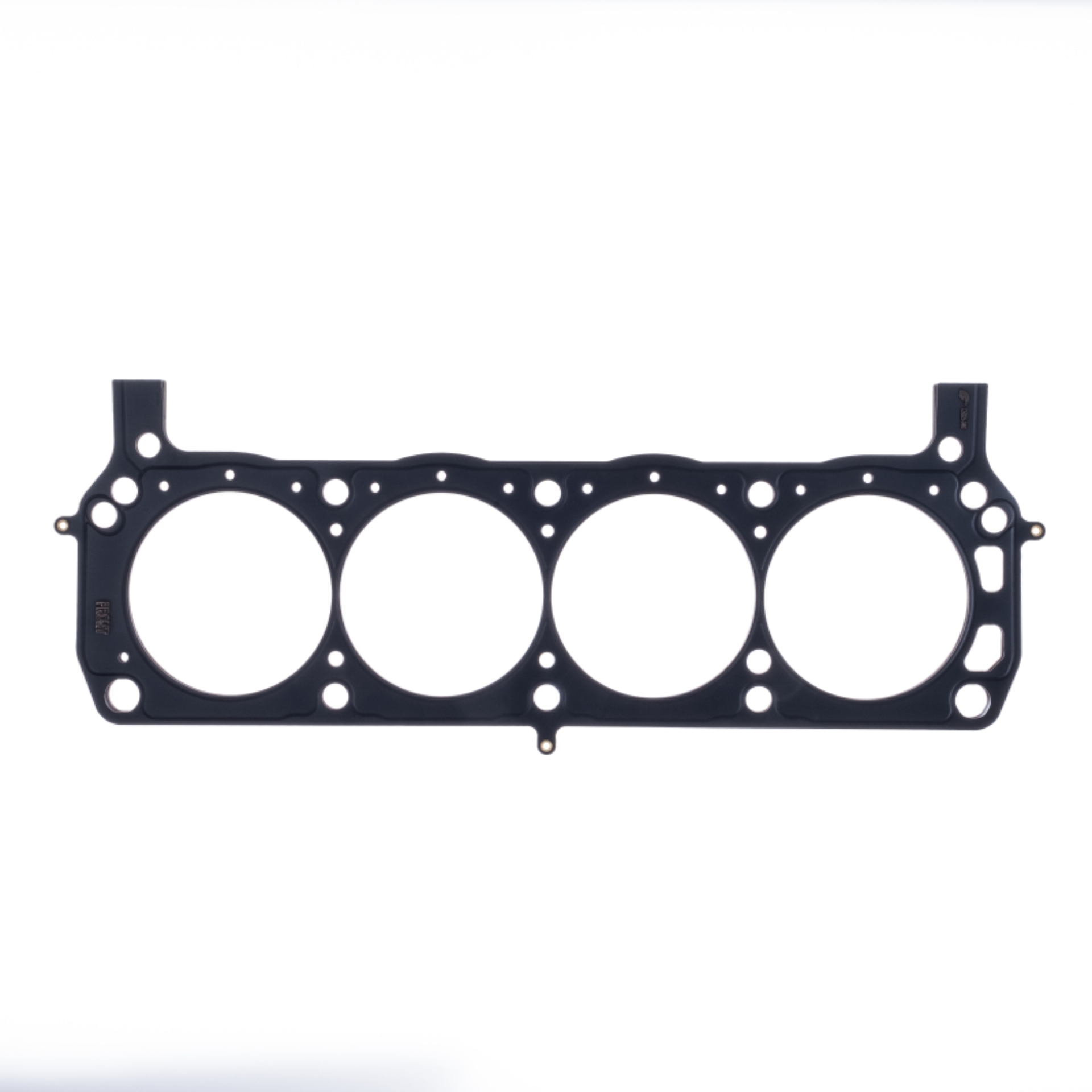

Cometic Ford SB 289/302/351 4.200in Bore .052in MLX Non-SVO Head Gasket

Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.036". World Products Man-o-War Block. Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.

MLX Gaskets utilize an integrated "stopper" layer for combustion chamber sealing

Improved clamp load around the cylinder without increasing bore distortion

Ford Windsor V8 .052in. MLX Cylinder Head Gasket; 4.200in. Bore; Non-SVO

Cometic Ford SB 289/302/351 4.200in Bore .052in MLX Non-SVO Head Gasket

Ford Windsor V8 .052" MLX Cylinder Head Gasket, 4.200" Bore, Non-SVO

Ford Windsor V8 Cylinder Head Gasket

Embossed Outer Layers Coated w/Viton

Engine Cylinder Head Gasket

Cylinder Head Gasket
