Comprised of multiple embossed layers of stainless steel with the outer layers utilizing a Viton rubber coating. Compressed operating thickness is 0.040". Cometic MLS (Multi-Layer Steel) Head Gaskets provide maximum sealing performance for todays high output engines and require no sealants. MLS gaskets are ideal for both aluminum heads to aluminum blocks and aluminum heads to cast iron blocks. They can withstand the shearing force created by the two materials. MLS gaskets have increased strength because they are comprised of multiple layers of stainless steel; which also creates the ability to rebound and resist corrosion. The outer layers are embossed and coated on both sides with Viton (a flour elastomer rubber based material that is heat resistant to 250 C/ 482 F). Viton is designed to meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes. The center or shim layer is uncoated stainless steel, which can be varied to accommodate multiple thickness requirements.
The embossed outer layers of the gaskets meet the demands of a variety of harsh sealing environments, load conditions, and surface finishes
The center or shim layer is an uncoated stainless steel layer which can be varied to accommodate multiple thickness requirements
MLS Gaskets are comprised of multiple embossed layers of both AMP (Advanced Multi-Polymer Coating) and uncoated stainless steel
Mazda LF/L3 MZR, Ford Duratec 20/23 .040" MLS Cylinder Head Gasket, 89.5mm Bore, Without Variable Valve Timing
Mazda LF/L3 MZR; Ford Duratec 20/23 .040in. MLS Cylinder Head Gasket; 89.5mm Bore

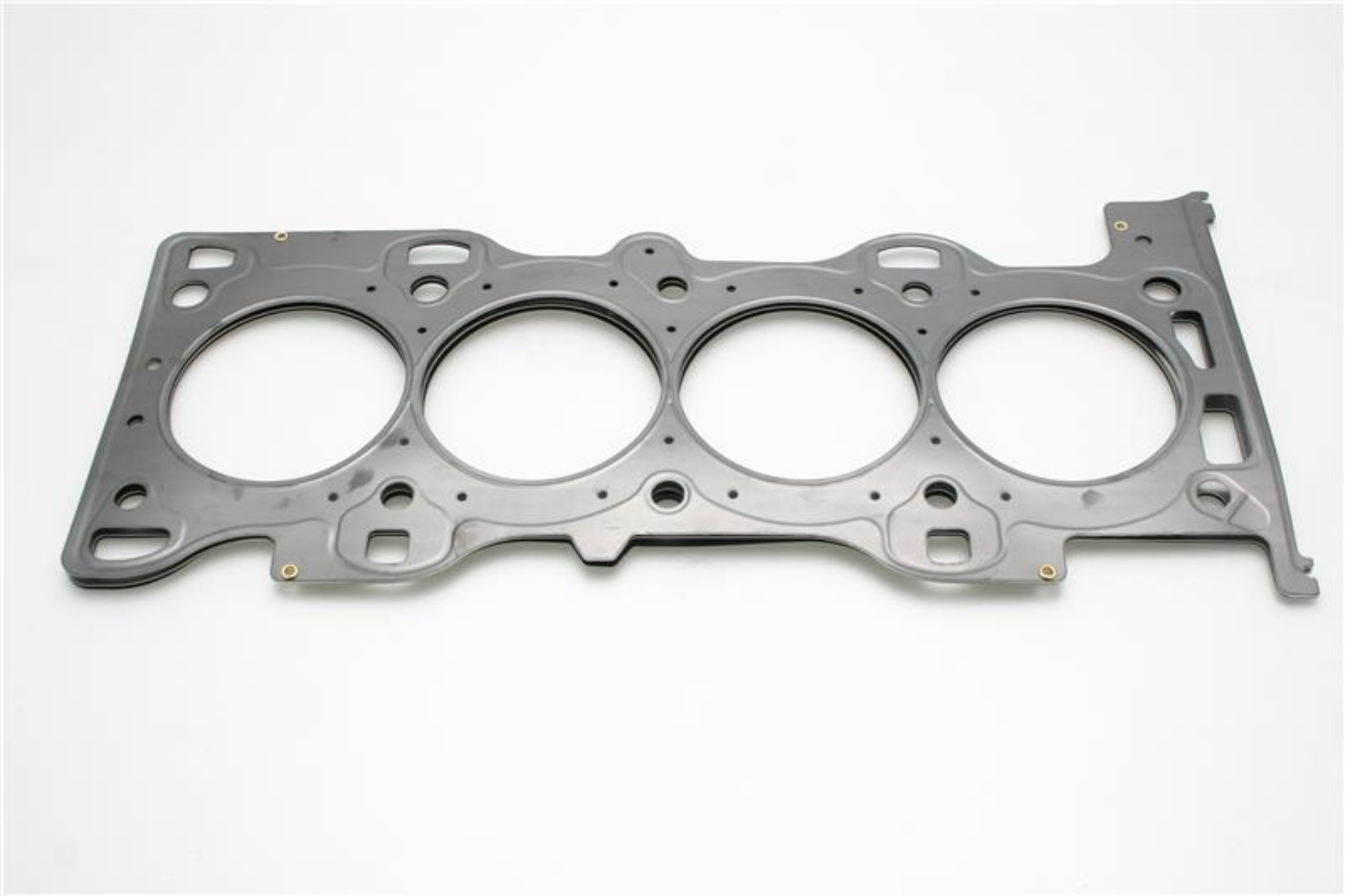

Cometic Ford Duratech 2.3L 89.55mm Bore .040in MLS Head Gasket
Mazda LF/L3 MZR, Ford Duratec 20/23 Cylinder Head Gasket
Mazda LF/L3 MZR; Ford Duratec 20/23 Cylinder Head Gasket
Requires less clamp load creating less bore distortion
Conforms load distribution across the sealing area
Mazd LF/L3 MZR. Ford Duratec 20/23 Head
Mazd LF/L3 MZR; Ford Duratec 20/23 Head
Embossed Outer Layers Coated w/Viton
Engine Cylinder Head Gasket
Cylinder Head Gasket
