UMI Performance UMI Hardware Kits - 6410

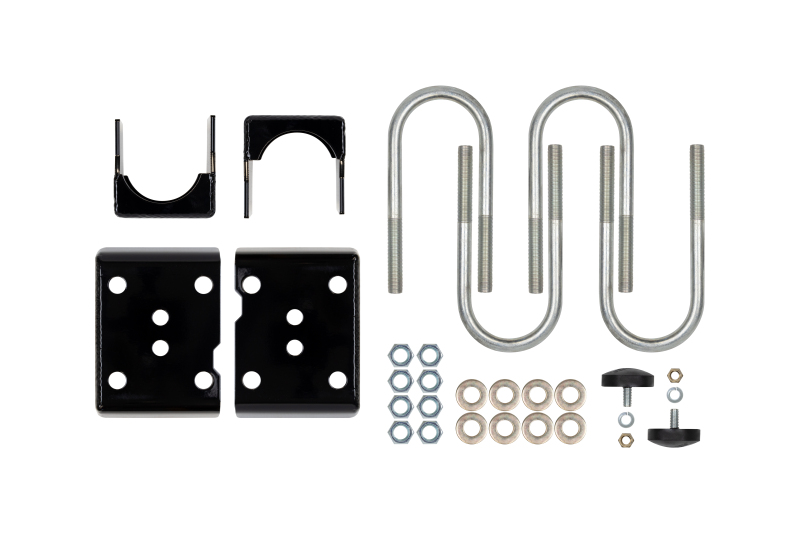

The UMI Performance P/N 6410 flip kit lowers the rear of the 1973-1987 GM C10 truck six inches by relocating the axle above the leaf spring. The saddle bracket moves the axle rearward to keep the wheel centered in the wheel well. The lower leaf plate is seriously strong and features laser cut ¼” plate steel clamped by extra heavy duty U-bolts. Kit comes complete with brackets, stand-offs, U-bolts and polyurethane bump stops. Gloss black powder coat. 100% Made In Philipsburg, PA – USA.

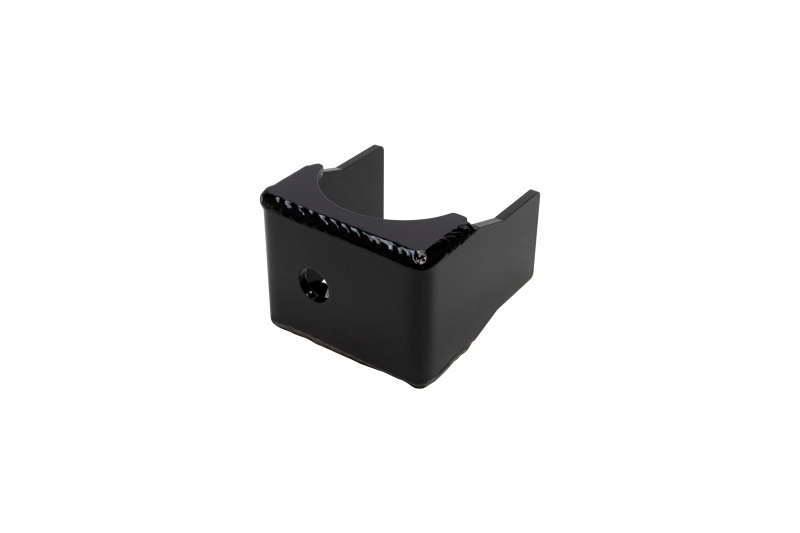

Saddle bracket relocates axle slightly to maintain perfect stock wheelbase

Pair with Viking B274 shocks and 6411 shock relocation

Pair with UMI S160 shocks and 6411 shock relocation

Lowers rear of truck six inches (nominal)

Heavy duty, high quality ⅝” U-bolts

UMI Performance 73-87 GM C10 Flip Kit

6410 - 1973-1987 GM C10 Flip Kit

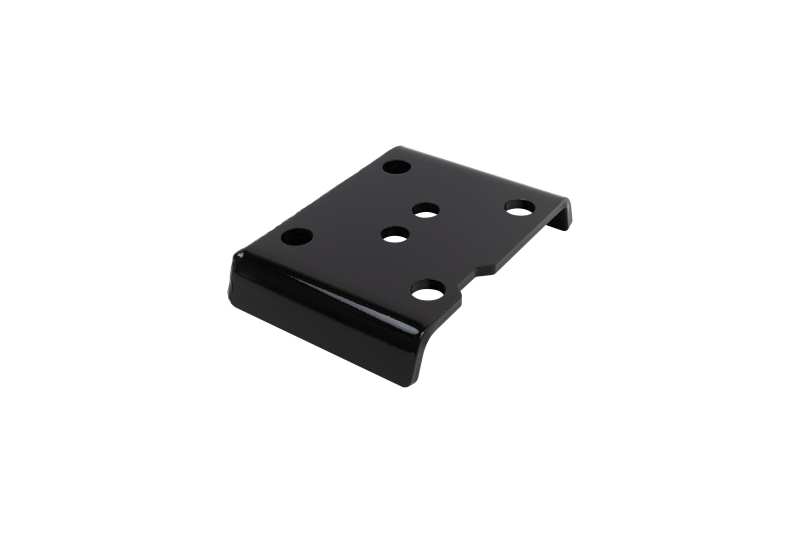

Strong ¼” thick construction

Gloss black powder coat

Bump stops included

UMI- Axle Flip Kit

100% Made In USA

Axle Flip Kit
