Edelbrock EDE Hardware Hardware Kits - 11463

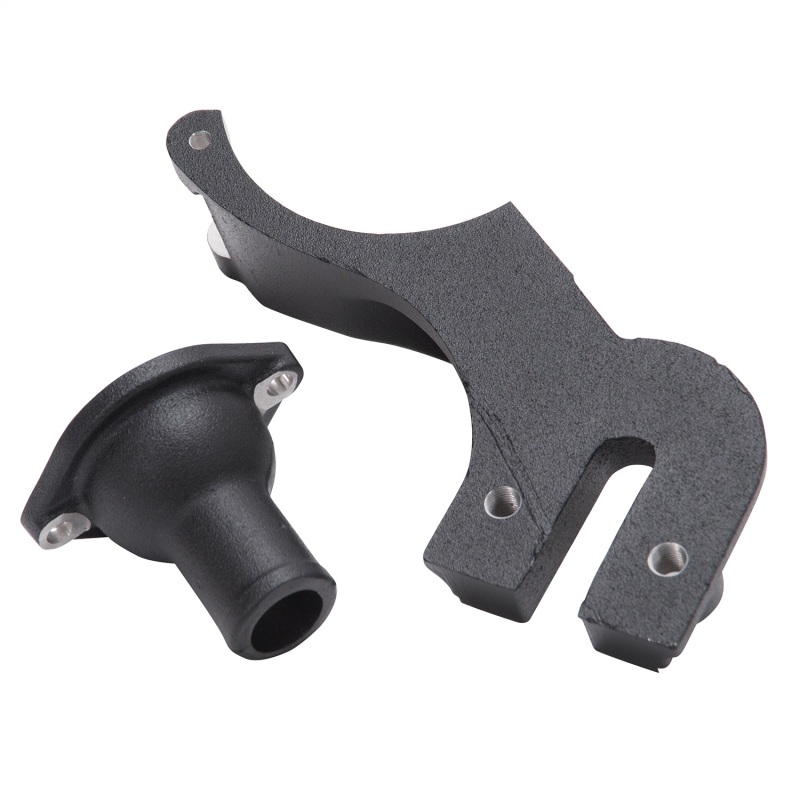

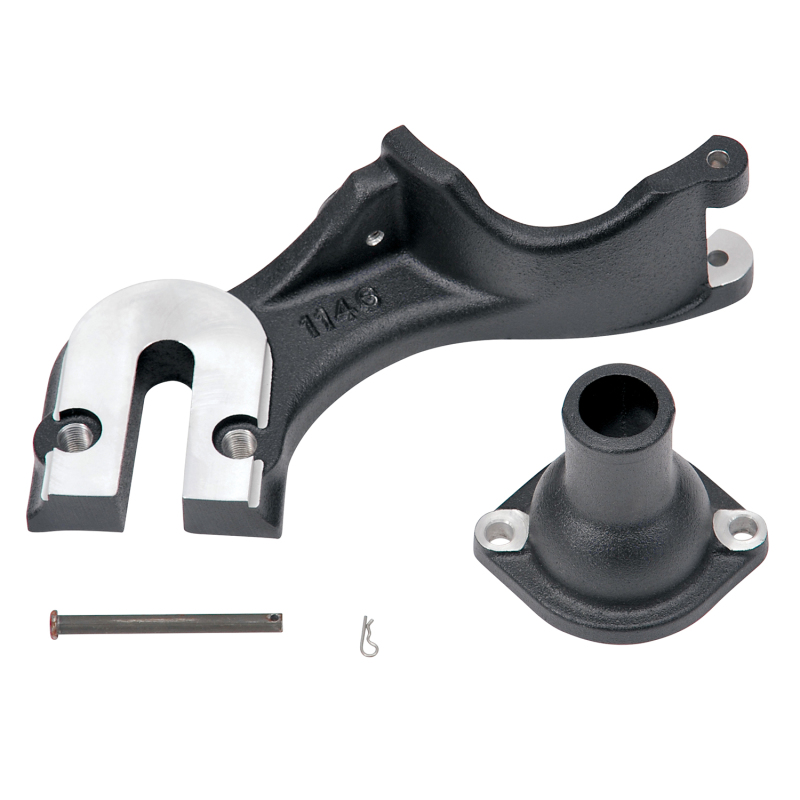

Edelbrock part #11463 is a Generator kit for our 1109, '49-53 Ford Flathead Triple Deuce Intake Manifold. It is for those using the manifold in conjunction with a stock style generator. The purpose of kit is to remedy the interference between the generator and forward-most carburetor. The kit includes an offset generator bracket and water outlet (thermostat housing). The offset bracket attaches to the standard generator mount flange on the manifold but moves the generator out to the right where it is clear of the forward-most carburetor. The included water outlet allows the hose to be routed out past the generator before turning towards the radiator. (This is not required for the triple deuce manifold on motors with early center outlet heads.) 11463 is the same as PN 1146, but the bracket is powder coated with a durable black finish prior to machining.

Edelbrock part #11463 is a companion kit for our 1109 49-53 Ford Flathead Triple Deuce Intake. It is for those using the manifold in conjunction with a stock generator

Edelbrock; Flathead; Edelbrock; generator Bracket; 1949-53; 1949; 1950; 1951; 1952; 1953; 49-53; Ford; V8; Offset; Black powder coat

Ford:Flathead:239 (3.6L)/255 (4.2L);Mercury:Flathead:239 (3.6L)/255 (4.2L)

Edelbrock Generator Offset Kit Ford Flathead49-53 Satin Black

Edelbrock is a companion kit for our 1109 49-53 Ford Flathead

GENERATOR OFFSET KIT FORD FLATHEAD 1949-53 SATIN BLACK

Ford Flathead 49-53 Gen Brckt Offset Blk

Generator Bracket

Gen Brkt kit

{ eo : 0in.}

KIT PARTS
