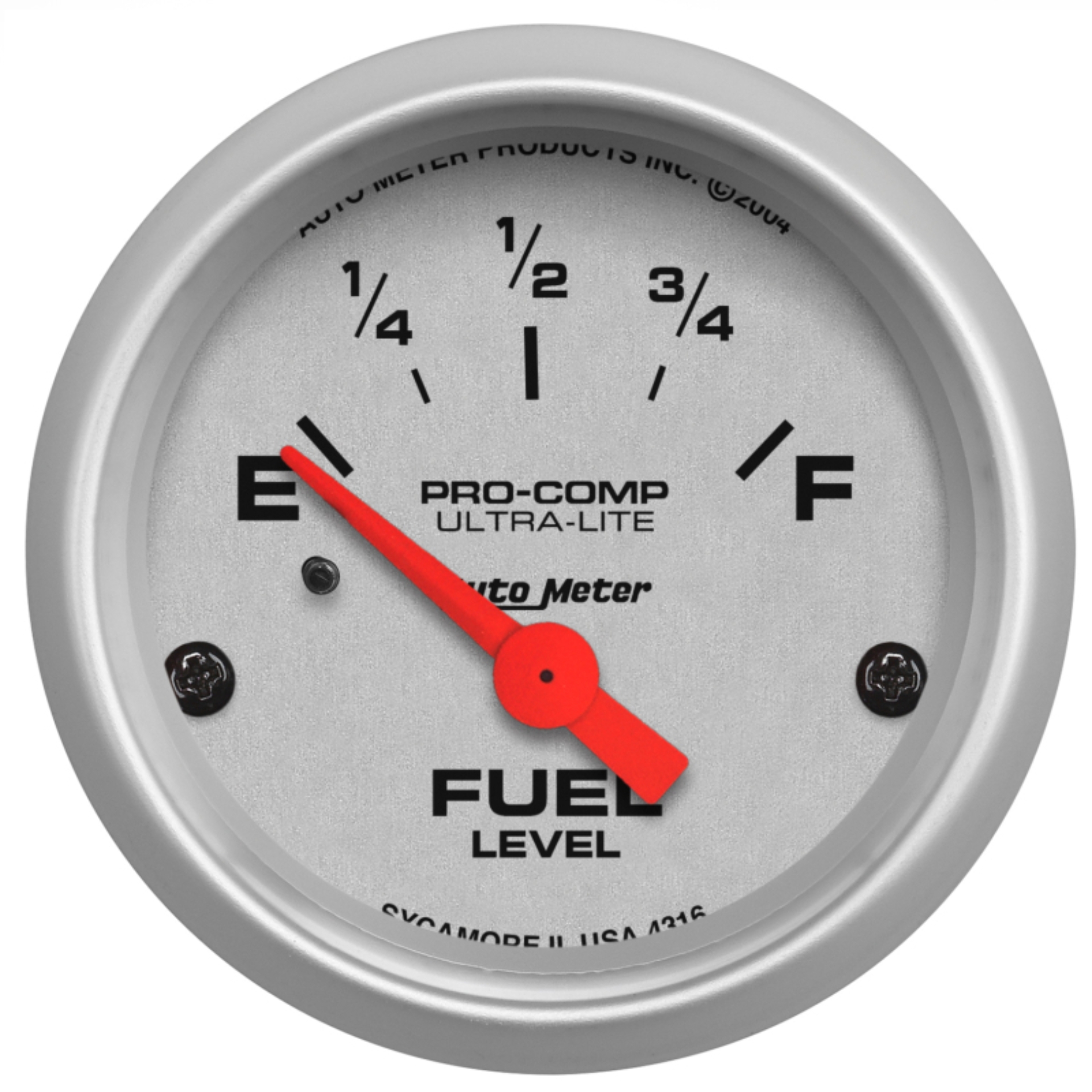

Autometer Ultra-Lite 52mm 240 OHMS Empty/33 OHMS Full Short Sweep Electronic Fuel Level Gauge

One of the most necessary gauges in a dashboard, AutoMeter makes it easy by offering 5 different resistance range configuration to match your existing fuel sending unit. Available in 0-90 ohm (GM mid 60’s to mid 90’s), 0-30 ohm (early GM), 73-10 ohm (pre 90’s Ford and Chrysler), 16-158 ohm (later model Fords) and 240-33 ohm (aftermarket senders such as the AutoMeter 3262). Our patented air core meter movement receives extra dampening to help combat the effects fuel slosh in non-baffled tanks.

Gauge kit includes bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation

12 and 16 volt compatible, well-suited with nearly every street car or race car electrical system

Autometer Ultra-Lite 52mm 240 OHMS Empty/33 OHMS Full Short Sweep Electronic Fuel Level Gauge

AutoMeter’s race proven air-core electric instruments provide quick and accurate readings

Traditional incandescent lighting illuminates around the perimeter of the dial

Works with 240E/33F ohm senders, including AutoMeter 3262

2-1/16" FUEL LEVEL, 240-33 Ohm SSE, ULTRA-LITE

2" FUEL LEVEL, 240 E/33F SSE, ULTRA-LITE

Fuel Level Gauge

2" FUEL LEVEL
