The Stack Colour LCD Motorsport Display is the next evolution of driver communication and data acquisition.7" LCD panel ensures easy visibility under all circumstances with unmatched brightness and an optically bonded lens for extreme glare suppression. The display layout is configurable to your individual specifications.The system will accommodate two programmable data bus channels (I CAN and I serial) in conjunction with discrete analog sensors and its integrated 3 Axis Accelerometer. Data collection can occur at up to 1,000 Hz and the internal memory allows for appropriate recording time. User definable warnings take advantage of super bright, multicolour LEDs placed around the perimeter of the chassis to alert the driver to critical on-screen information.
Professional grade datalogging - user configurable sampling rates up to 1kHz, support for up to 128 total channels), immense memory capacity, and Professional Edition DataPro software enabled standard out of the box.
Inboard tri-axis accelerometer and optional GPS NEMA input provide comprehensive data regarding vehicle dynamics for post race analysis including track mapping and lap timing functions.
7" (17.78 Cm) Tft Sunlight Visible Colour Lcd Panel Supports Multiple User Configured Rich Graphic Pages Including Uses Like Tuning, Warm Up, Qualifying, Race, And More!
12 configurable analog sensor inputs (0-5V, digital, or resistive) standard, expandable via optional sensor modules.
16 User configurable multi-color alarm LEDs with on-screen visual and text warnings
CANbus enabled data comms compatible with a wide variety of aftermarket EFI systems
Stack Instruments Series, Pro Lcd Motorsport Display Logger, W/ Harness (Ip65)
Product Dimensions - 211mm Wide x 132mm High x 35mm Deep (excluding connector)
4 Configurable I/O for driver control switches and alarm triggered outputs.

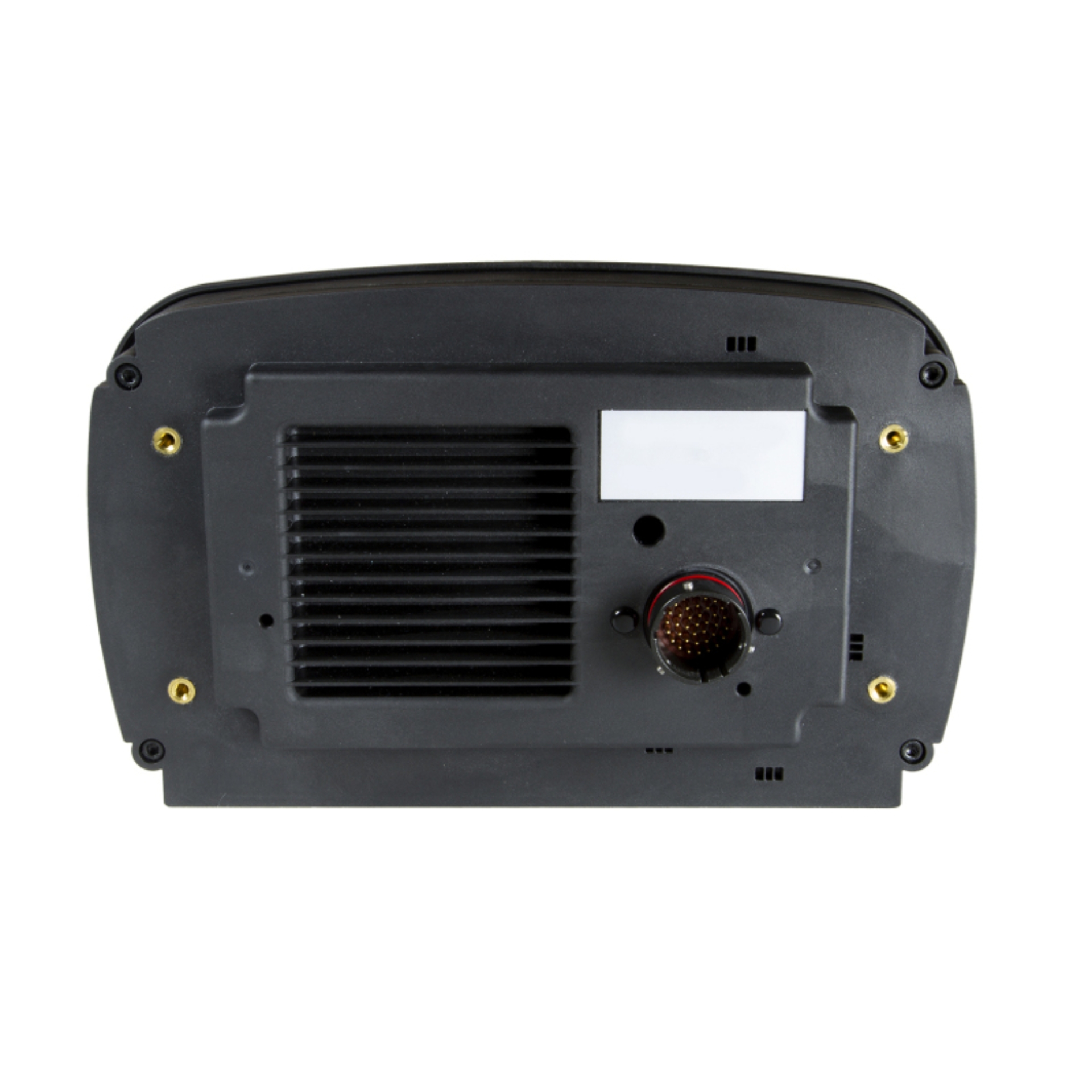

AutoMeter LCD Action Replay Dash, 0-3-8K RPM (PSI, DEG. F, MPH)
PRO LCD MOTORSPORT DISPLAY LOGGER, W/ HARNESS (IP65)
Data exchange and configuration via ethernet or USB
IP65 sealed for protection against the elements.
MULTI-FUNCTION LCD RACE DASH, STACK
Electronic Multi-Purpose Gauge
Pro LCD Disp Logger
STACK INSTRUMENTS
