This AutoMeter Race display system is designed uniquely for the specialized conditions of dirt and asphalt modified and late model oval track racing. Monitor RPM, Oil Pressure, Oil Temperature, Water Temperature, Carbureted Fuel Pressure, Battery Voltage, and an optional Water Pressure channel (with purchase of separate sensor) on a single, compact and waterproof digital display. The signature analog pointer movement provides a quick and clear display for engine RPM while the digital display screen layout is preconfigured with multiple layouts for your axillary engine instrumentation needs. Customize warning points specific to your setup to receive driver alerts that include on screen text and illuminated alarm lights. Record an entire on track session’s worth of data with the ability to play back your run right on the face of the dash display when you’re back in the pits and preparing for your next heat. Includes qty. 2 1/8” NPT temperature sensors, qty. 1 1/8” NPT 15 PSI stainless steel fuel pressure sensor, qty. 1 1/8” NPT 150 PSI stainless steel oil pressure sensor, professional grade pre-terminated wiring loom, external push button controls with weather resistant caps, and operations manual, mounting template and brackets for installation.
Monitors and displays: RPM, Oil Pressure, Oil Temperature, Water Temperature, Voltage, & Fuel Pressure. Water Pressure expansion available with purchase of additional ST747 pressure sensor sold separately.
Single 19 pin MIL spec connector and motorsports wiring loom utilizing Mini Sure Seal connections for ease of installation and removal
Water and dust proof to IP67 sealing standard, offering protection from mud and wash downs following an event.
Display features digital values for vehicle parameters and configurable text warning messages

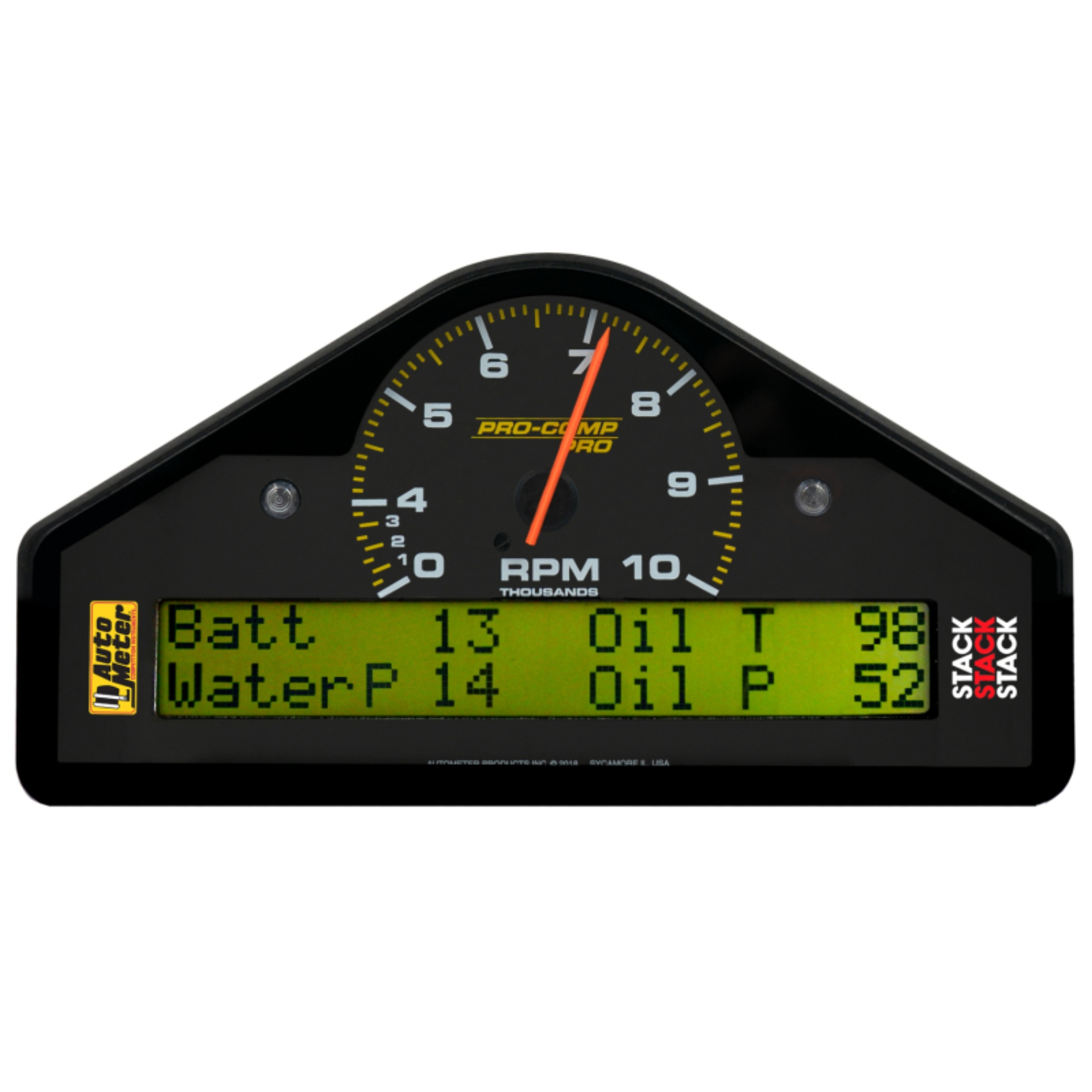

Autometer Pro-Comp Race Dash Display 0-3-10K RPM / WTRP / FUELP / OILP / OILT / WTMP / VOLT
Includes oil pressure, water temperature, oil temperature , and fuel pressure sensors
Optional shift light output, single stage or progressive shift light
Dimensions - 8.3" Wide x 5.2-1/16" High x 1.4" Deep
Configurable for engines from 1-12 cylinders
Built-in warning and shift light LEDs
RACE DASH, 0-4-10K RPM, PRO-COMP PRO
RACE DASH, 0-4-10K RPM WITH WP
Electronic Multi-Purpose Gauge
RACE DASH 10K RPM
