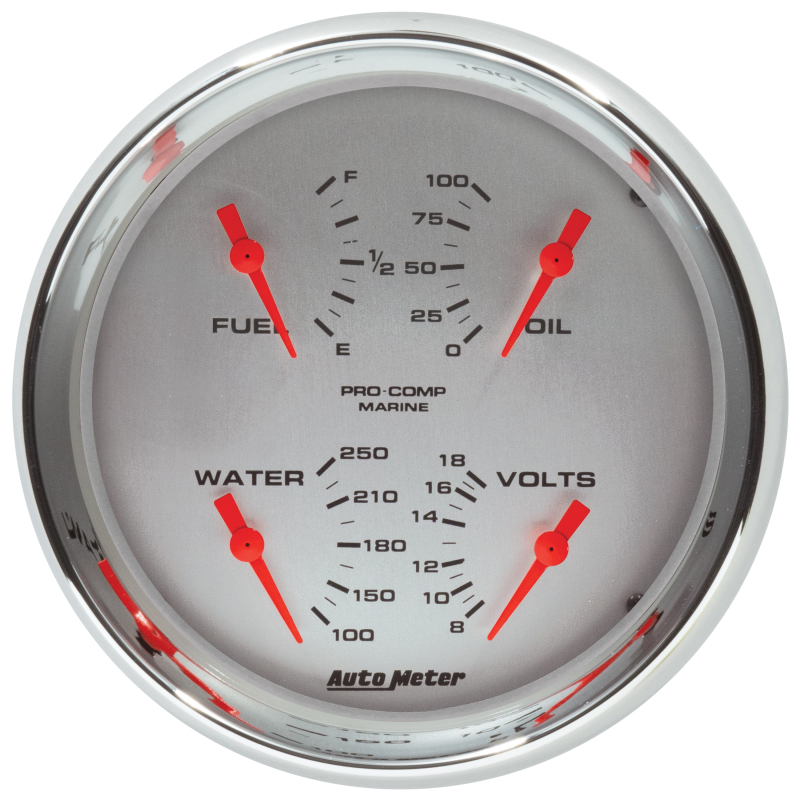

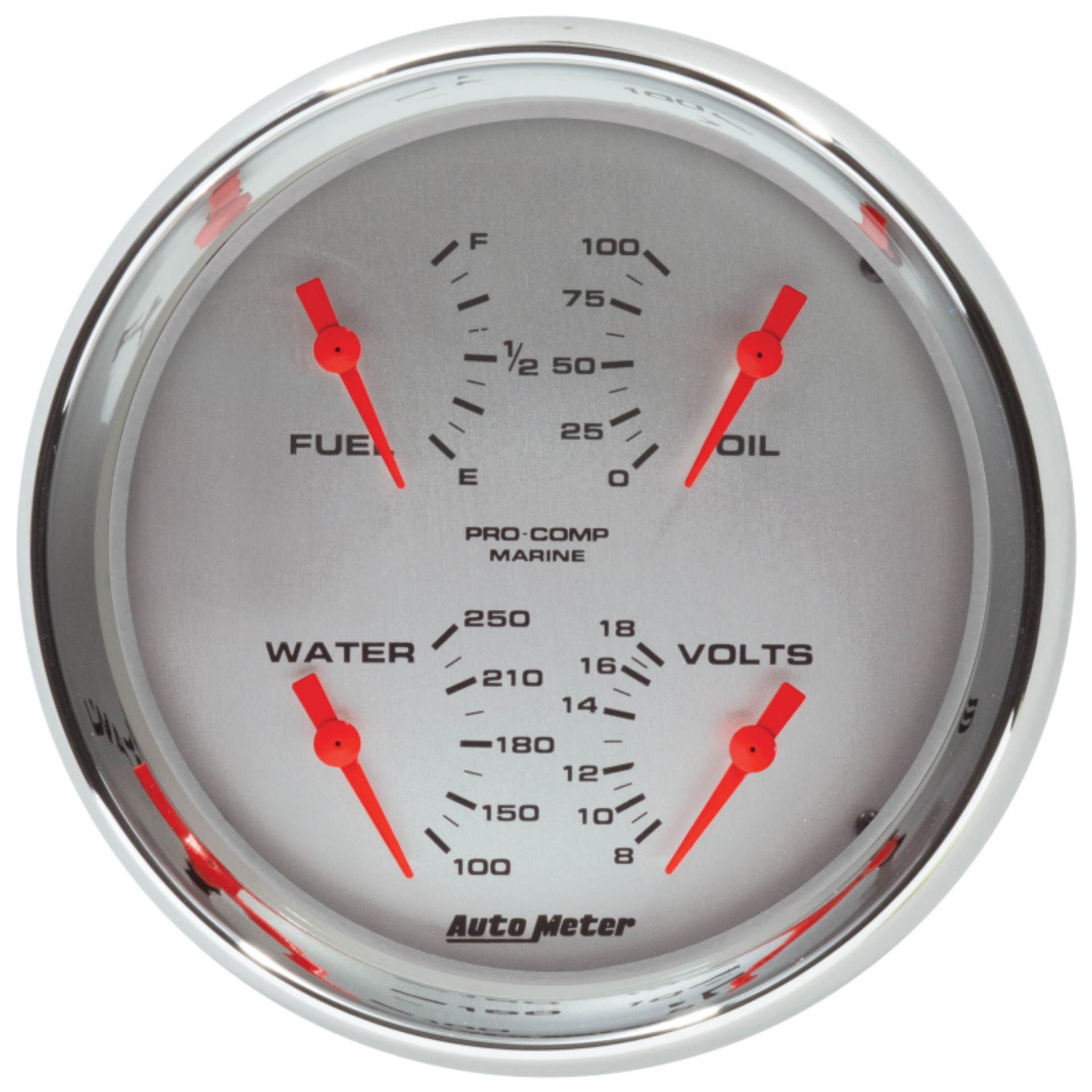

Sometimes space is limited. The AutoMeter Quad Gauge provides a solution to limited dashboard space while providing a clean look. Individual AutoMeter air core meter movements for each function provide the accuracy and durability required by even the most demanding applications. Includes a single wire 1/8” NPT temperature sender and a 1/8” NPT oil pressure sender. The voltmeter reads from 8-18v on negative ground electrical systems and fuel level resistance range is 240 ohms empty to 33 ohms full (compatible with AutoMeter’s 3262 fuel level sender).
Gauge kit includes 1/8 NPT pressure sender, 1/4 NPT adapter, 1/8 NPT temperature sender, 3/8 and 1/2 NPT adapters, bulb and socket assembly, red and green bulb covers, mounting hardware, and detailed instructions for installation
AutoMeter’s race proven air-core electric instruments provide quick and accurate readings while keeping hazardous fluids outside of the vehicle
4 in 1 gauge design saves valuable real estate on your dash while allowing you to monitor critical parameters
Traditional incandescent lighting illuminates around the perimeter of the dial
12 and 16 volt compatible, well-suited with nearly every electrical system
5" QUAD GAUGE, 100 PSI/100-250 F/8-18V/240-33 Ohm, MARINE CHROME
Autometer Marine Chrome - 100 PSI
Electronic Multi-Purpose Gauge
5" QUAD GAUGE, MARINE CHROME
Highly polished chrome bezel
GA 5" QUAD 240-33 MC
