Traditionally, paring the proper fuel level level gauge to the application could be a more difficult task than it needed to be. The AutoMeter Digital Stepper Motor Fuel Level Gauge drastically simplifies the process with it’s easily configurable resistance range. With 7 common configurations stored in memory from the factory, the vast majority of all applications are covered. In the instance your fuel level sender is not included in these preconfigured ranges, an innovative custom calibration mode allows any sending unit that operates between 0 and 280 ohms, empty or full, to be easily paired. Our “snapshot” programming method will allow you to capture the empty and full readings and the gauge does the rest. No matter your application, there simply isn’t an easier solution for fuel level monitoring available on the market. A direct plug in wiring harness is included for ease of installation.
Built-in Pro-Control circuits with custom programmable activation & deactivation points for key functions like lights, fans, switches, & pumps allow drivers to focus on the competition while the gauges control key vehicle systems
AutoMeter’s race proven digital stepper motor electric instruments provide unmatched accuracy which is further increased by utilizing a self calibration sequence during power up
Set custom alert High and Low points specific to your vehicle & receive full dial warning notification to highlight the need for driver attention
7 user selectable colors (blue, white, red, green, cyan, violet, and yellow) to match visual preferences of driver and visibility conditions
Adjustable Scale w/ 7 preset ranges for common vehicle types (73E/10F, 16E/158F, 0E/30F, 0E/90F, 240E/33F, 107.5E/7F, 131E/12F)
Gauge kit includes 20 ft. wiring harness, mounting hardware, and detailed instructions for installation

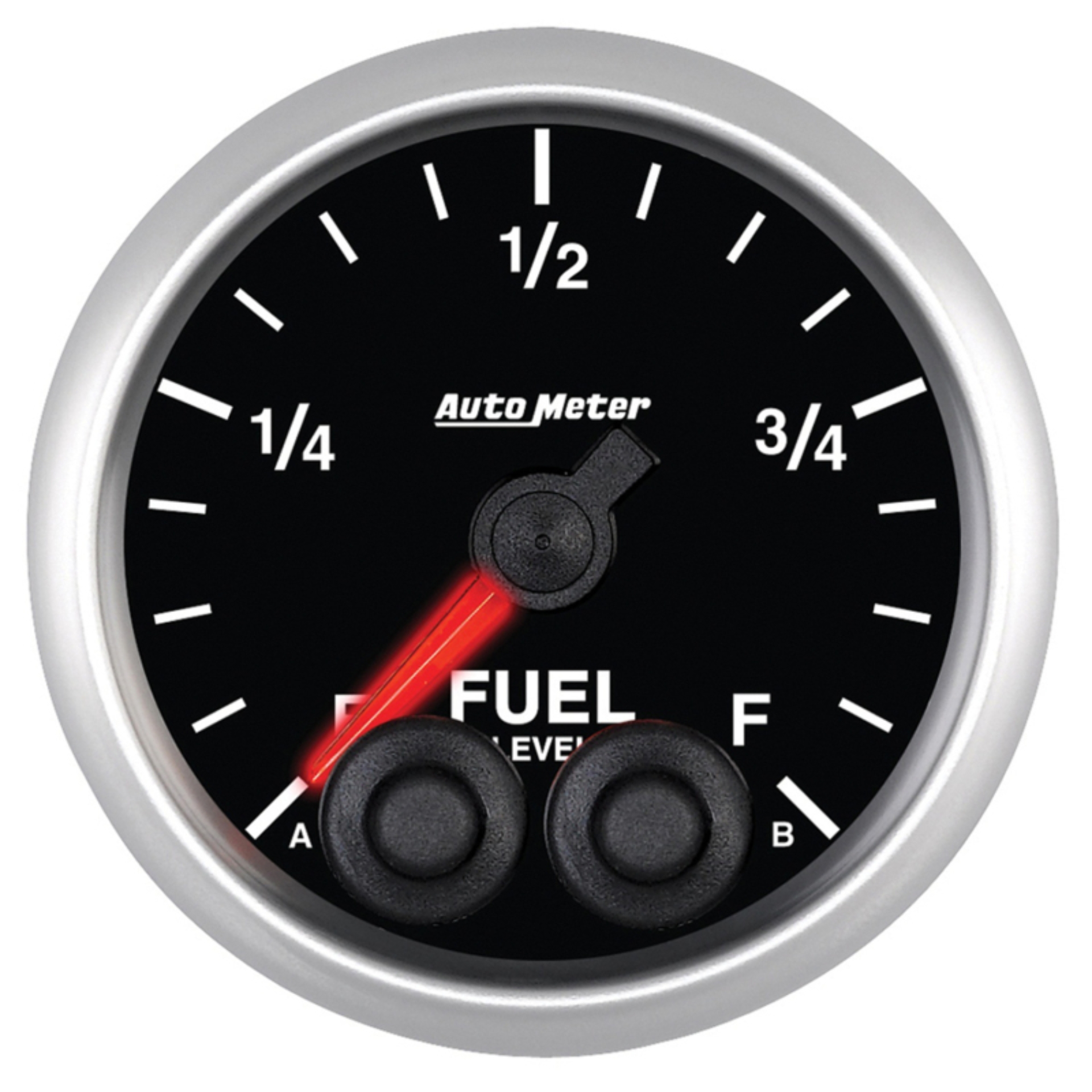

Autometer Elite 52mm 0-280 ohm Full Sweep Electronic Fuel Level Programmable Empty-Full Gauge
User definable resistance setting programmable anywhere between 0-280 ohms
2-1/16" FUEL LEVEL, PROGRAMMABLE 0-280 Ohm, ELITE
2-1/16" FUEL LEVEL, PROG ELITE
GA 2" FU UNIV ELITE
Fuel Level Gauge
