Autometer #4 Braided SS Line (-4AN) 3ft 1/8in NPT Fittings

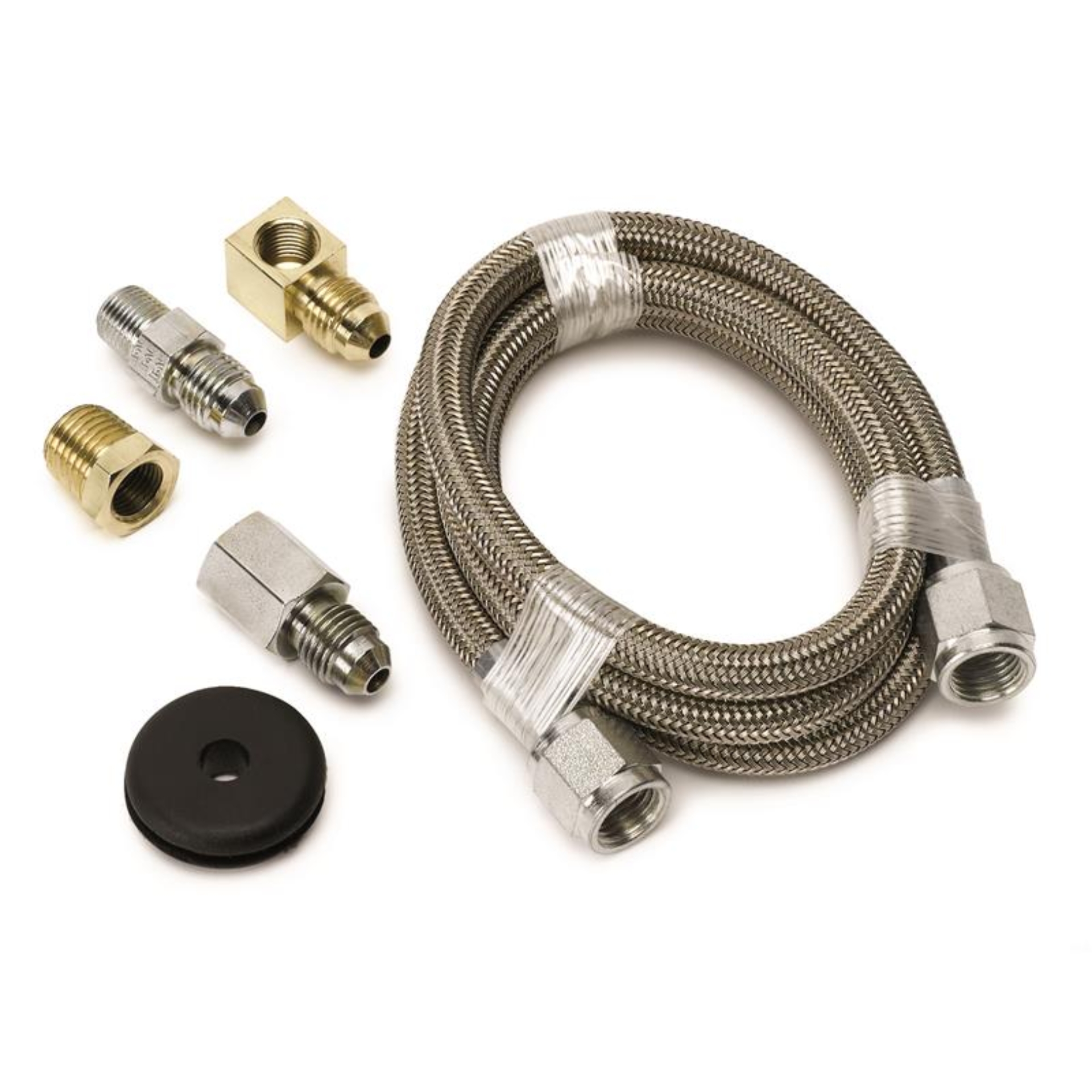

Includes 3ft. of #4 braided stainless steel line, firewall pass through grommet, 1/8" NPT female right angle to -4AN male fitting, -4AN male to 1/8" NPT male fitting, -4AN male to 1/8" NPT female fitting, 1/8" NPT to 1/4" NPT adapter bushing. Recommended for use with fuel pressure gauges. For use with mechanical pressure gauges and for remote mounting of electric gauge pressure senders.

Includes 1/8"NPT male to -4AN female straight, 1/8" FPT Female to -4AN Male straight, 1/8" NPT Female to 1/4" NPT male straight, and -4AN to 1/8" NPT female 90 degree fittings

LINE, BRAIDED STAINLESS STEEL, #4 DIA., 3FT. LENGTH, -4AN AND 1/8" NPTF FITTINGS

Autometer #4 Braided SS Line (-4AN) 3ft 1/8in NPT Fittings

`-65 F to 450 F Operating Temperature Range

PTFE lined hose, resistant to most fluids

Maximum Operating Pressure - 3000 PSI

3' BRAIDED STAINLESS STEEL LINE, #4

Burst Pressure - 12,000 PSI

Type 304 Stainless braid

Hose PTFE SST 3' -4

3ft hose length

Braided Hose
