The X-Series GPS Speedometer Gauge has a bright four-digit LED display that is 87% larger than our original digital gauges and provides better readability. A sweeping LED "needle" lines the edge of the gauge face for quick reference. A 33% overall increase in the gauge face display makes it easier to see at a glance. X-Series Gauges come with a black bezel and faceplate, and an optional silver bezel/white faceplate accessory kit is available (PN 30-0313-ACC, sold separately).
Despite the larger display, X-Series Gauges are contained in a standard 2-1/16th-inch (52mm) diameter housing for mounting in a standard gauge pod. Thanks to an advanced single board design, X-Series Gauges have an incredibly slim overall depth of under 0.825", with a cup depth of only 0.200." This shallow cup depth allows X-Series Digital Gauges to be mounted practically anywhere.
AEM's X-Series GPS Speedometer (PN 30-0313) display ground speed, course and altitude via an included 10Hz GPS receiver. Users can integrate the X-Series GPS Speedo into an Infinity ECU to add track mapping, and an included Vehicle Speed signal can be outputted to an existing speedometer to eliminate the need for a vehicle speed sensor.
A 10Hz GPS receiver receives speed, heading and altitude data from multiple satellites at 10 samples/second providing excellent accuracy and reliability. The GPS receiver includes a magnet and adhesive bottom for exterior mounting on the vehicle.
X-Series GPS Speedometer Gauge with 10Hz GPS, Displays 0-160mph / 0-240kph on Outer LEDs, Unlimted Readings Center Display, Black Bezel and Black Faceplate
Optional silver bezel with white faceplate accessory kit available (sold separately, PN 30-0313-ACC)
aem30-0313
Slim 0.825" overall gauge depth and 0.200" cup depth - mount them virtually anywhere!
X-Series GPS Speedometer Gauge 0-160mph / 0-240kph. Black Bezel & Black Faceplate
Transmit vehicle speed to an existing speedometer without needing a VSS sensor
Integrate with the Infinity ECU via AEMnet CAN bus to add track mapping!
AEM X-Series 0-160 MPH Black Bezel w/ Black Face GPS Speedometer Gauge
2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
24 green outer LEDs for quick reference to engine parameter
Auto dimming sensor delivers ideal display brightness
Positive locking connector provides secure connection
User selectable units of measurement (US or Metric)
Displays ground speed, heading and altitude!

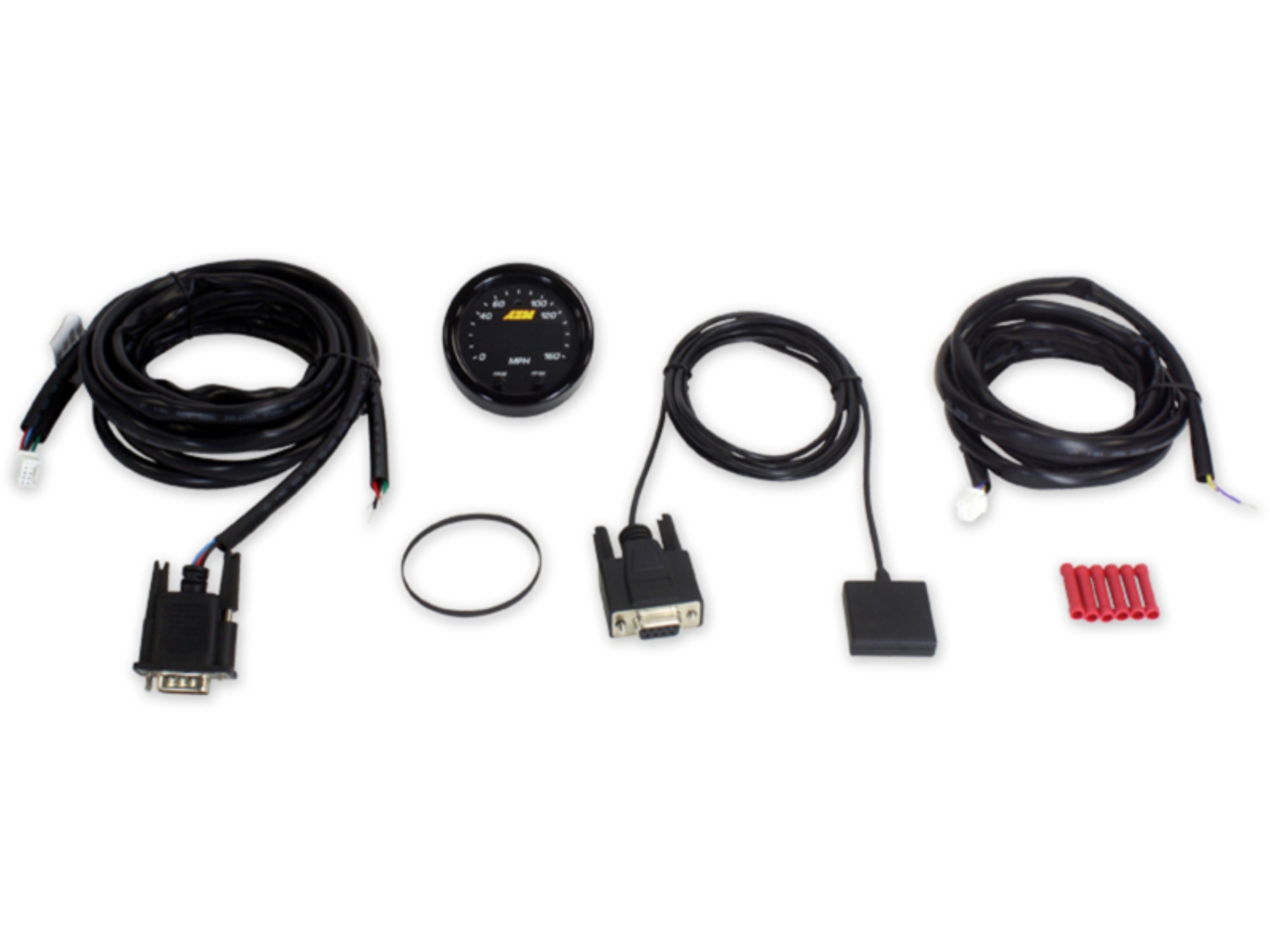

AEM X-Series GPS Speedometer Gauge Kit
Compatible with 16v vehicle systems
aem30-0313
AEM - X-Series Speedo
0-160 MPH / 0-240 KPH
Speedometer Gauge
X-Series Speedo
X GAUGE KIT GPS
AEMESPEEGAUG
X-Series GPS
