There are many different tools that can be used for measurement, but the degree of accuracy is dependent upon the tool. For example, a ruler can measure distance with a good degree of accuracy, but for a more precise measurement a caliper should be used. The difference between a brass pressure sensor and a stainless steel pressure sensor is similar if we think about it in these terms:
AEM offers high quality stainless steel PSIg sensors in 100, 150, 500, 1,000, and 2,000. Gauge style pressure sensors reference pressure above atmospheric pressure. When exposed to atmospheric pressure, gauge style pressure sensors will read 0 psig. Gauge style pressure sensors are commonly used for oil pressure, fuel pressure, brake pressure, nitrous pressure etc.
500 PSIg Stainless Sensor Kit, Stainless Steel Sensor Body, 1/8-inch NPT Male Thread, Includes 500 PSIg Stainless Sensor, Connector, Pins and 1/8-inch NPT to -4 Adapter
500 PSIg Stainless Sensor Kit. Stainless Steel Sensor Body. 1/8 in NPT Male Thread. Includes: 500 PSIg Stainless Sensor, Connector, Pins & 1/8 in NPT to -4 Adapter
Example: Brass Pressure Sensor used for a Boost Gauge - Reference/Information for knowing manifold pressure, not for ECU calibration.
Use a Brass Pressure Gauge Sensor where you need a good reference to what pressure is being seen.
Example: MAP Sensor information for the ECU - Calibration/crucial information for the ECU.
-Stainless steel body, with high quality sealing which makes it impervious to fluids.
Use a SS Pressure Sensor where you need exact details of the pressure.
-Includes 1/8"NPT to -4 AN adapter and barbed fitting.

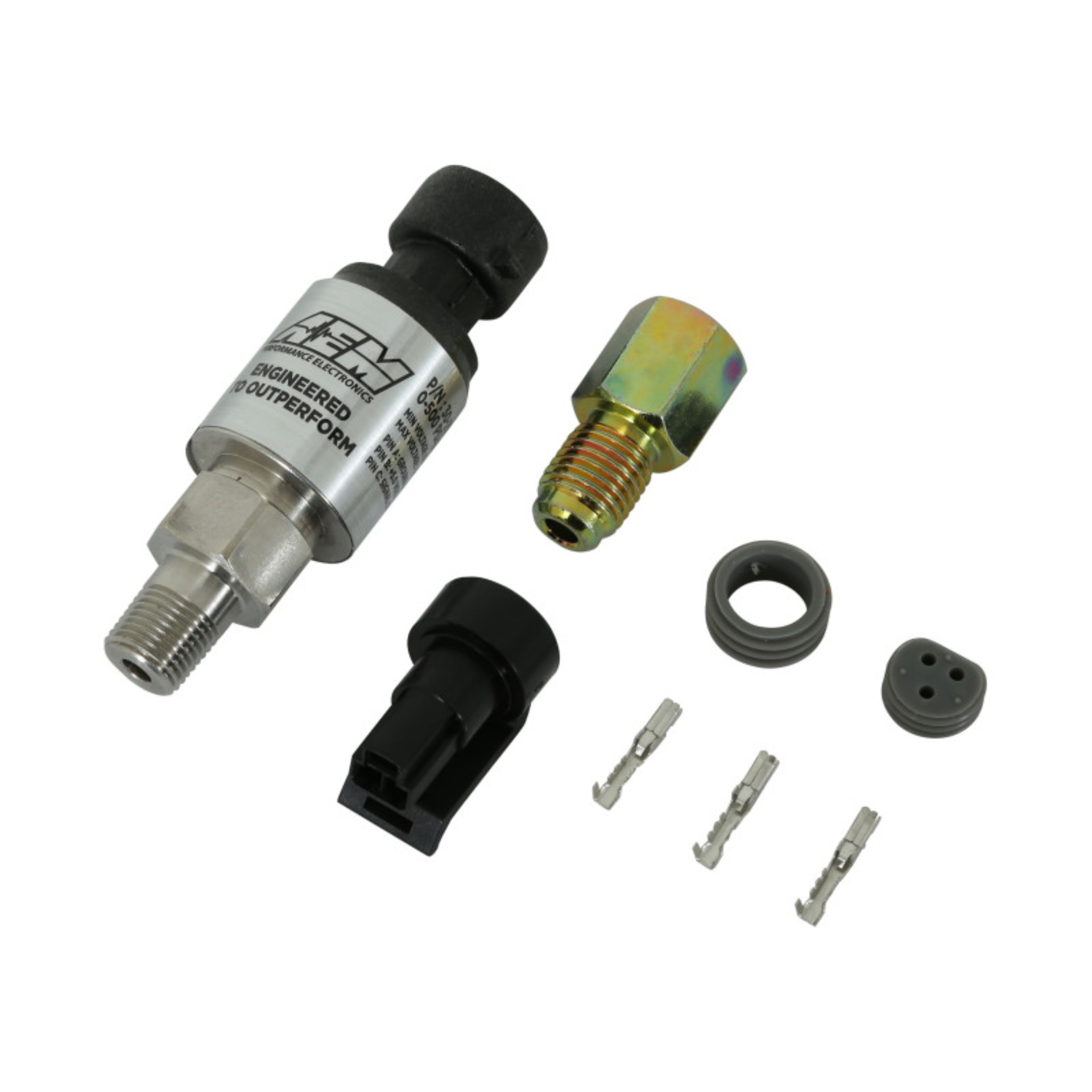

AEM 34 BAR MAP or 500 PSIA Stainless Steel Sensor Kit
-Weather resistant connector and pins included
Stainless Steel Pressure Sensor = Caliper
Which Pressure Sensor is right for you?
Gauge style (PSIg) Pressure Sensors
AEM 500 PSIg Stainless Sensor Kit
-Accurate to 1% margin of error.
Brass Pressure Sensor = Ruler
FLUID PRESS SENSOR KIT 500 PS
AEM - Sensors/Connectors
1/8 in. NPT Male Thread
Sensors/Connectors
AEMEMULTPRES
Sensor Kit
Pyrometer
