X-Series Digital Gauges include new technological features that make them easier to use. Two buttons on the faceplate deliver programmability for peak/recall, standard or metric center LED readout and sweeping LED needle, and user-selectable threshold warnings. The gauges are AEMnet CAN-bus enabled, so they can be daisy chained together for use with the Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or 3rd party EMS or logger that accepts AEMnet. 0-5V analog outputs are also included for inputting into data loggers and engine management systems.
Despite the larger display, X-Series Gauges are contained in a standard 2-1/16th-inch (52mm) diameter housing for mounting in a standard gauge pod. Thanks to an advanced single board design, X-Series Gauges have an incredibly slim overall depth of under 0.825", with a cup depth of only 0.200." This shallow cup depth allows X-Series Digital Gauges to be mounted practically anywhere.
AEM's 30-0309 X-Series 0~15PSI Digital Boost/Fuel Pressure Display gauge combines incredible looks, increased readability and a multitude of new, easy-to-use features! It is a must for users who want highly accurate boost or fuel pressure readouts up to 15 PSI in their high performance supercharged or carbureted vehicle.
Visual improvements include a bright center LED display that is 87% larger than our original digital gauges and provides better readability. A sweeping green LED "needle" lines the edge of the gauge face for quick reference. A 33% overall increase in the gauge face display makes it easier to see at a glance.
X-Series Pressure Gauge 0-15psi, Black Bezel and Reversible Black Boost or Fuel Pressure Faceplate
Slim 0.825" overall gauge depth and 0.200" cup depth - mount them virtually anywhere!
Optional silver bezel with white faceplate accessory kit available (sold separately)
X-Series Pressure Gauge 0-15psi. Black Bezel & Black Boost/Fuel Faceplate
AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
0-5v analog outputs for transmitting data to EMS or Data Logger
2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
24 green outer LEDs for quick reference to engine parameter
Positive locking connectors provide secure connection
Auto dimming sensor delivers ideal display brightness
0-15 PSI - Black Bezel and Black Boost/Fuel Faceplate
Center LED is 87% larger than original AEM gauges

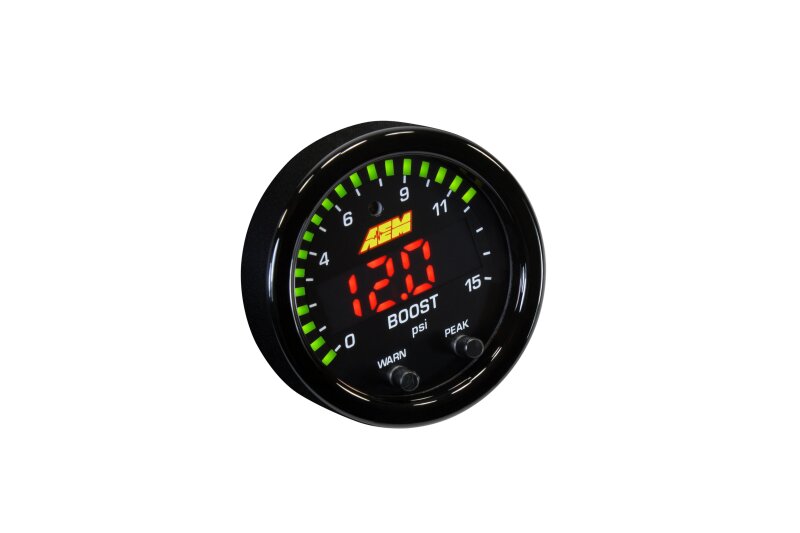

AEM X-Series Pressure 0-15psi Gauge Kit
Peak/Recall via gauge face buttons
User selectable threshold warnings
AEM X-Series Pressure Gauge Kit
Electronic Multi-Purpose Gauge
X GAUGE KIT FUEL BOOST 15 PSI
AEM - X-Series Gauge
SMARTER INTERFACE
X-Series Pressure
EASIER TO MOUNT
X-Series Gauge
EASIER TO READ
AEMEMULTPRES
