X-Series Digital Gauges include new technological features that make them easier to use. Two buttons on the faceplate deliver programmability for peak/recall, standard or metric center LED readout and sweeping LED needle, and user-selectable threshold warnings. The gauges are AEMnet CAN-bus enabled, so they can be daisy chained together for use with the Infinity ECU, Series 2 EMS, AQ-1 Data Logger, or 3rd party EMS or logger that accepts AEMnet. 0-5V analog outputs are also included for inputting into data loggers and engine management systems.
NOTE: The 30-0308 comes with a black bezel and reversible black PSI/BAR boost pressure faceplate. You will need to purchase the optional 30-0308-ACC accessory kit to get the silver bezel and reversible white standard/metric boost pressure faceplate. Each faceplate is double-sided with standard PSI on one side and metric BAR on the other. The calibration for standard or metric display is easily performed using the buttons on the face of the gauge.
Despite the larger display, X-Series Gauges are contained in a standard 2-1/16th-inch (52mm) diameter housing for mounting in a standard gauge pod. Thanks to an advanced single board design, X-Series Gauges have an incredibly slim overall depth of under 0.825", with a cup depth of only 0.200." This shallow cup depth allows X-Series Digital Gauges to be mounted practically anywhere.
Visual improvements include a bright center LED display that is 87% larger than our original digital gauges and provides better readability. A sweeping green LED "needle" lines the edge of the gauge face for quick reference. A 33% overall increase in the gauge face display makes it easier to see at a glance.
AEM's 30-0308 X-Series -30in/Hg~60PSI / -1~4BAR Digital Boost Display gauge combines incredible looks, increased readability, and a multitude of new, easy-to-use features! It is a must for users who want highly accurate boost pressure readouts up to 60 PSI or 4 BAR in their high-performance vehicle.
Optional silver bezel with white faceplate(s) accessory kits available (sold separately)
Slim 0.825" overall gauge depth and 0.200" cup depth - mount them virtually anywhere!
X-Series Boost Pressure Gauge -30-60psi - -1-4bar, Black Bezel and Black Faceplate
X-Series Boost Pressure Gauge -30-60psi / -1-4bar. Black Bezel & Black Faceplate
User selectable standard or metric display ( -30in/Hg~60PSI / -1~4BAR)
AEMnet CANbus-enabled for transmitting data to EMS or Data Logger
0-5v analog outputs for transmitting data to EMS or Data Logger
2-1/16th (52mm) gauge diameter for easy mounting in gauge pods
Programmable center LED is 87% larger than original AEM gauges
24 green outer LEDs for quick reference to engine parameter
Auto dimming sensor delivers ideal display brightness
Positive locking connectors provide secure connection

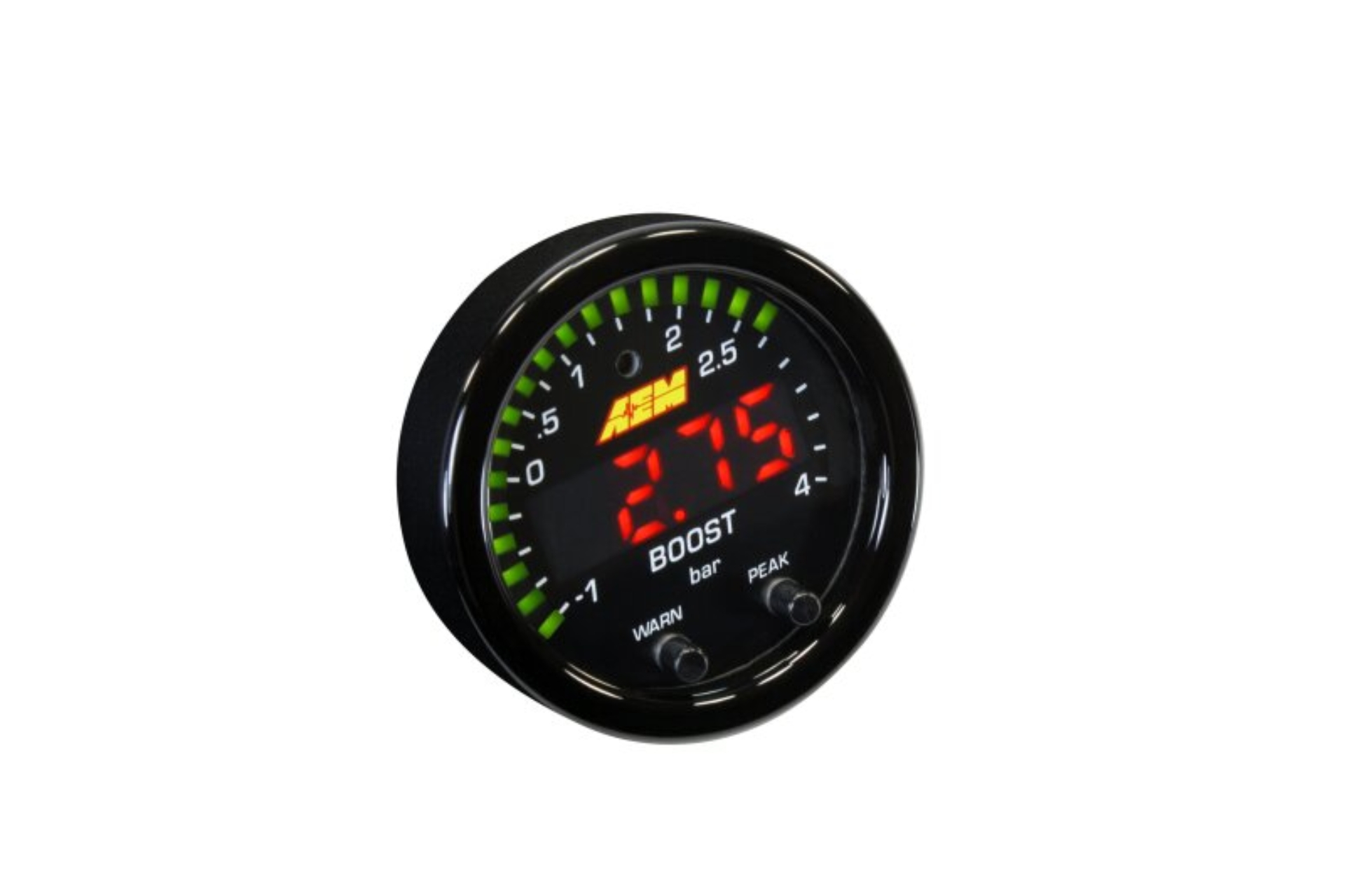

AEM X-Series Boost Pressure -30inHg 60psi Gauge Kit
User selectable threshold warnings (excl. Volts)
AEM X-Series Boost Pressure Gauge Kit
Peak/Recall via gauge face buttons
X GAUGE KIT BOOST 50 PSI
AEM - X-Series Gauge
30 in/hg to 60 PSI
SMARTER INTERFACE
EASIER TO MOUNT
X-Series Gauge
EASIER TO READ
X-Series Boost
Vacuum Gauge
AEMEMULTBOOS
