Elevate your vehicle's fuel capacity to new heights with the Titan 40 Gallon Cab & Chassis Auxiliary, After-Axle Tank. Engineered for cab and chassis trucks equipped with a factory midship tank, this innovative tank seamlessly integrates into the OEM After-Axle Tank location, transforming into an auxiliary tank. With an additional 40 gallons of fuel at your disposal, effortlessly transfer fuel to your truck's main midship tank on the fly, empowering you to go further with confidence. Crafted from TITAN's renowned military-grade, cross-linked polymer, this tank is engineered to withstand the toughest conditions, ensuring reliability and durability like no other. It's the ultimate fuel capacity solution for those who demand excellence. But that's just the beginning. Our tank comes complete with TITAN's Electronic Controller management system, sending unit, transfer pump, wiring, fuel lines, and mounting straps, providing a comprehensive fuel management solution that's second to none. Rest assured, our proven design has undergone extensive testing to ensure unmatched quality and performance. Backed by our legendary Lifetime Warranty, you can trust that our products are built to last, giving you the peace of mind to tackle any journey with confidence. Application. For model year: 2017-2022.For F-350, F-450, and F-550 vehicles. Note: For use with diesel fuel ONLY!
Additional Details. TITAN's Electronic Controller provides complete fuel control with a single touch. The operator has complete and total flexibility in managing how extra fuel capacity is used. The fuel can be held in reserve or transferred on-the-go as the need arises. The controller's illuminated user interface indicates the tank's fuel level and features a single-touch button that starts the fuel transfer sequence. With one touch, fuel begins transferring from the auxiliary tank to the vehicle's primary fuel tank, the pump will run for approximately 10 minutes, transferring 5 gallons of fuel. If the primary tank fills during that time, the pump will automatically stop pumping fuel. A great feature is that TITAN's Controller only requires a power wire and a ground. It does not invade the trucks wiring harness or computers. Optional filler neck assembly is also available. (P/N 9900025). Replacement fuel pump filters are available at your local auto parts store. Hastings Part Number: GF3 or Baldwin Part Number: BF836
40 Gallon*, auxiliary, aft-axle fuel tank, galvanized mounting straps, fuel lines, and TITAN Electronic Controller. Generation 6 (4020217) • Adds an additional 40 gallons of range to the truck's fuel system, by transferring fuel to the original equipment, mid-ship tank. • Features TITAN's famous, military grade, cross-linked polymer, aft-axle tank. • Includes TITAN's Electronic Controller management system, sending unit, transfer pump, wiring, fuel lines, and mounting straps. • Optional filler neck assembly is also available. Like all fine TITAN products, this proven design has undergone extensive testing. Our legendary tank products are so tough and well-tested that we back them with a Lifetime Warranty+! No drilling or fabrication required for installation.

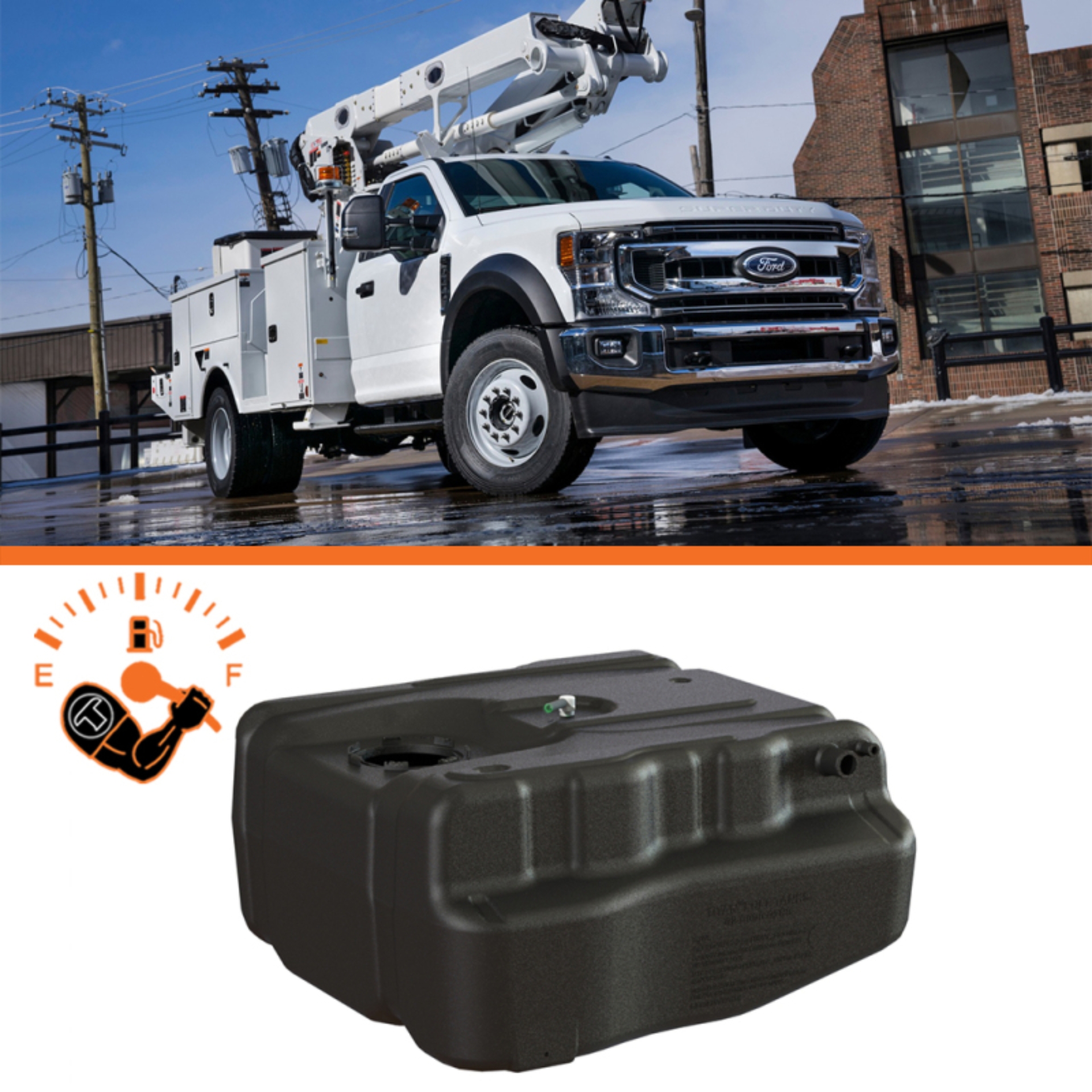

Titan Fuel Tanks 17-22 Ford F-350/F-450/F-550 40 Gallon After-Axle Auxiliary Fuel Tank System
Super Durable Military Grade Polymer, Cross-Linked Polyethylene (XLHDPE)
Super Durable Military Grade Polymer; Cross-Linked Polyethylene
Nearly 200 Times Less Heat And Cold Conductive Than Metal Tanks
40 Gallon extra heavy duty, cross-linked polyethylene fuel tank
Nearly 200 Times Less Heat & Cold conductive than Metal Tanks
No Condensation; No Corrosion; and Easy to Install
No Condensation, No Corrosion, and Easy to Install
Exclusive TITAN Sending Unit Mounting System
After-Axle Auxiliary Tank; 40 Gallon;
Compatible With Most Bio-Diesel Fuel
TITAN Auxiliary Tank 4020217
After-Axle Auxiliary Tank
Fuel Tank
