When producing more power from a Dodge RAM 2500/3500 with a Cummins engine, more fuel is required. To supply the injection pump with additional fuel, upgraded lift pumps are added, often with additional filters and water separators to ensure the fuel is always clean. With these upgrades, the factory fuel filter assembly becomes a redundant restriction, or is bypassed completely. The BD Diesel Fuel Bowl Delete kit is designed to remove the factory fuel filter assembly, and allow the addition of a fuel pressure sensor. The kit can also be used as a distribution block for applications using dual CP3 kits. Please note that this kit is intended to be an accessory in addition to an auxiliary lift pump and filter assembly. If the factory CP3 pump feed line has not been upgraded to 1/2-inch hose, an upgraded feed line assembly will be required. See optional accessories for details. WARNING: The use of this kit without auxiliary filters and water separators installed is strongly discouraged. Without a fuel filter in place, the injection system on the diesel engine could become damaged.
When producing more power from a Dodge RAM 2500/3500 with a Cummins engine, more fuel is required. To supply the injection pump with additional fuel, upgraded lift pumps are added, often with additional filters and water separators to ensure the fuel is always clean. With these upgrades, the factory fuel filter assembly becomes a redundant restriction, or is bypassed completely. The BD Diesel Fuel Bowl Delete kit is designed to remove the factory fuel filter assembly, and allow the addition of a fuel pressure sensor. The kit can also be used as a distribution block for applications using dual CP3 kits. Please note that this kit is intended to be an accessory in addition to an auxiliary lift pump and filter assembly. If the factory CP3 pump feed line has not been upgraded to 1/2- in. hose, an upgraded feed line assembly will be required. See optional accessories for details. WARNING: The use of this kit without auxiliary filters and water separators installed is strongly discouraged. Without a fuel filter in place, the injection system on the diesel engine could become damaged.
Fuel Distribution Block; For Use w/Flow Max Lift Pump Systems; Incl. Supply Pump Pressure Sensor Port/Fittings/Clamps;
Great for high fuel flow applications and performance lift pump kits such as FASS, AirDog and BD Flow-Max
Great For High Fuel Flow Applications And Performance Lift Pump Kits Such As FASS/Airdog And BD Flow-Max
Designed For Performance Single CP3 Pumps Or Dual CP3 Set Ups
Designed for performance single CP3 pumps or dual CP3 set-ups
Auxiliary Supply And Return Ports For Dual Fuel Supply
Billet Aluminum Block Replaces Fuel Filter And Bowl

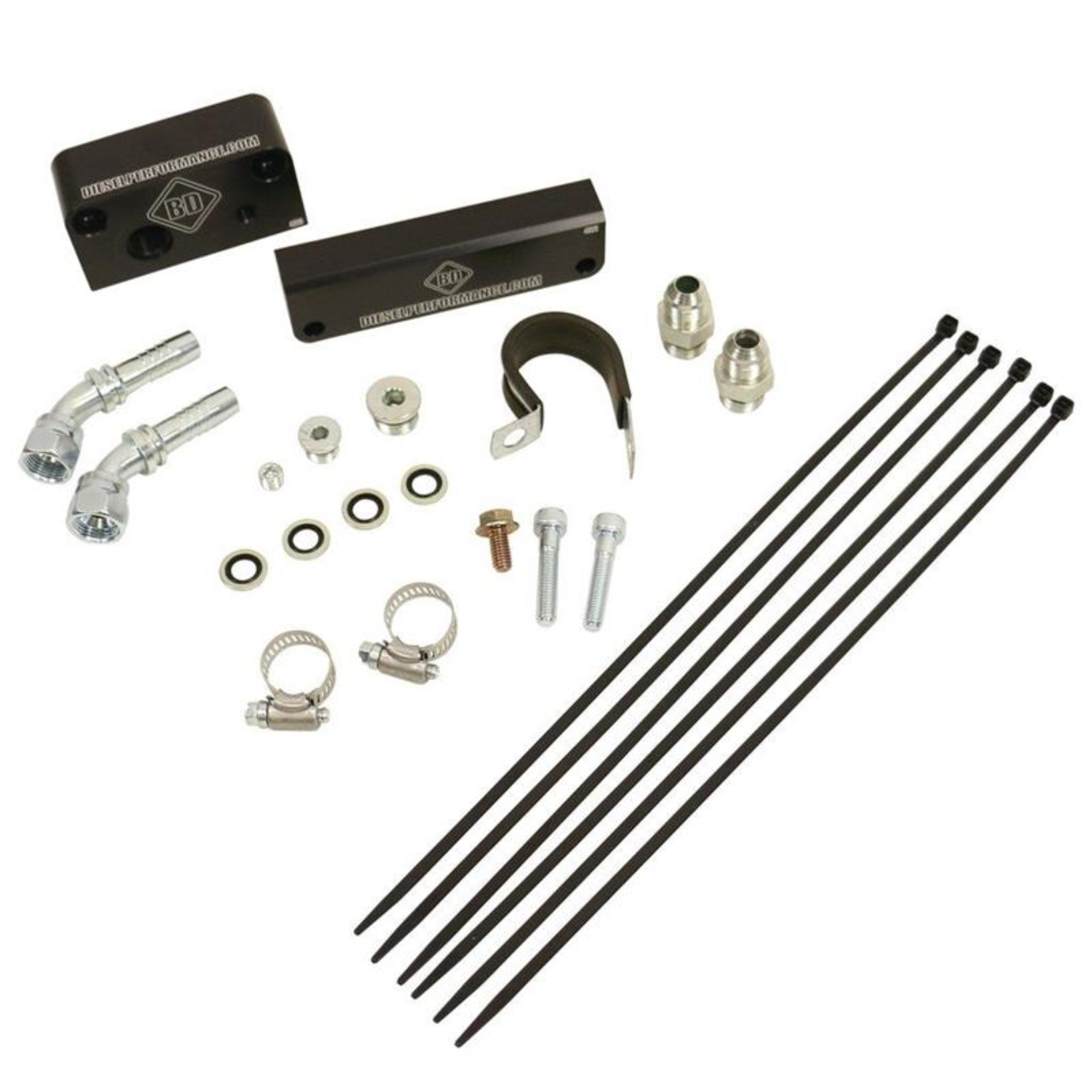

BD Diesel 10-17 Dodge 6.7L Fuel Distribution Block
BD Fuel Distribution Block - Dodge 2010-2022 6.7L
Removes Restriction And Increases Fuel Flow
FUEL DIST BLOCK DODGE 2010-2022 6.7L
Supply Pump Pressure Sensor Port
Includes Fittings And Clamps
Fuel Line Junction Block
Fuel Distribution Block
FUEL DIST BLOCK
Fuel Block
